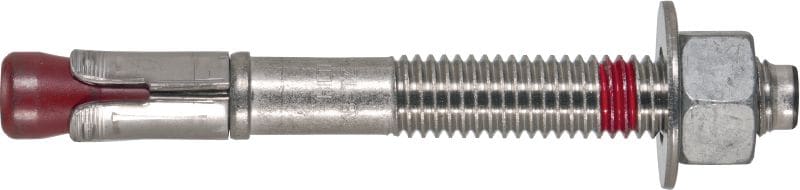

Kwik Bolt TZ SS304 Wedge anchor

KWIK Bolt TZ 304 Stainless Steel-full
Kwik bolt TZ

Ultimate-performance wedge anchor with approvals for cracked concrete and seismic (304 stainless steel)

  • Material, corrosion: Stainless Steel, 304
  • Head configuration: Externally threaded
  • Approvals / Test reports: ICC-ES report (concrete), LABC, Nuclear (NQA-1)

Choose options

Anchor size - D
  • 1/2 in
  • 3/4 in
Anchor length - L
  • 114 mm
  • 140 mm
Pack size
  • 10 pc
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 1,900.90 ILS

Technical Data

Material, corrosion
Stainless Steel, 304
Head configuration
Externally threaded
Approvals / Test reports
ICC-ES report (concrete), LABC, Nuclear (NQA-1)
Base materials
Concrete (cracked), Concrete (lightweight), Concrete (lightweight over metal deck), Concrete (non-cracked), Masonry (grout-filled CMU)
Type of fixing
Pre-fastening, Through-fastening
Installation tools
TE 6-A36 Cordless rotary hammer
PROFIS Software
Yes

Documents

pdf Operating Instruction KB-TZ 1/2, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 617.2 KB ]
pdf Operating Instruction KB-TZ 3/4, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 767.6 KB ]

Features & Applications

Features

  • Seismic qualification tested in accordance with ACI 355.2 and ICC-ES AC 193
  • Small minimum edge distance and spacing for maximum design flexibility
  • Meets ductility requirements of ACI 318 Appendix D3.3
  • Especially suited for seismic and cracked concrete (tension zone) applications
  • Nuts and washers pre-assembled

Applications

  • Fastening structural steel, façades, mechanical equipment, handrails and pipe supports

For approval or certificate information, please see individual items.
