HUS3-H 6 Concrete screw anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
57351.tif
43710.tif

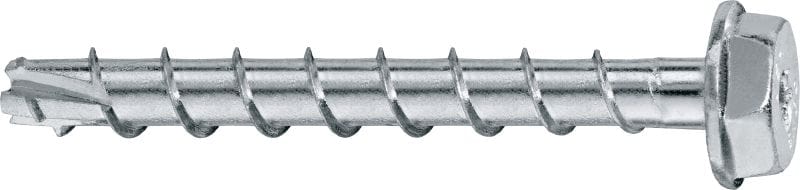

Ultimate-performance screw anchor for quicker permanent fastening in concrete (carbon steel, hex head)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Hex head
  • Approvals / Test reports: ETA, Fire

Choose options

Anchor size - D
  • 6 mm
Anchor length - L
  • 40 mm
  • 60 mm
  • 80 mm
  • 100 mm
  • 120 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 183.60 ILS

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Hex head
Approvals / Test reports
ETA, Fire
Base materials
Concrete (aerated), Concrete (cracked), Masonry (solid)
Type of fixing
Through-fastening
Reusable (and removable)
Possible
PROFIS Software
Yes
Installation direction
All
Material composition
Steel, zinc-plated (min. 5 µm)

Documents

Approval document
Technical information
Test Report
Brochure
Instruction for use
pdf ETA 13/1038 for HUS3-H/C/HF/A/I/I-Flex/P/PS/PL screw anchor (ETAG 13/1038, Option 1), English, German, French, Polish [ 14 MB ]
pdf ETA-10/0005, HUS4/HUS3/HUS for fastening in concrete, static loading, ML, German, English, French, Polish [ 13.3 MB ]

Features & Applications

Features

  • Higher productivity – less drilling and fewer operations than with conventional anchors
  • Neat head design, no further finishing required
  • More reliable and easy to set – HSE product profile available
  • Unbeaten for overhead installation – greatly simplifies the work
  • Reduced edge and spacing distances

Applications

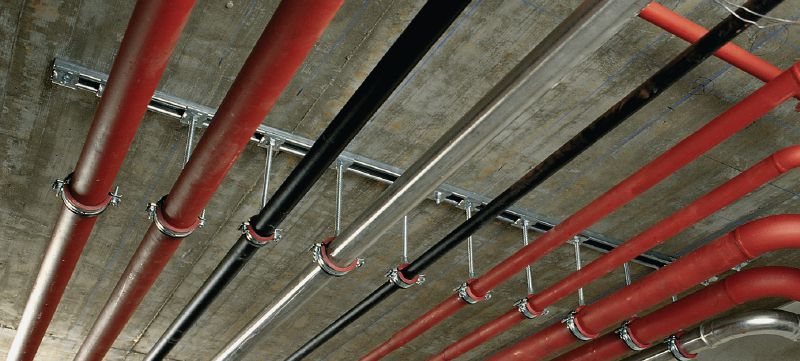

  • Fastening channels directly to the ceiling for the installation of pipes or ventilation ducts
  • Fastening handrails, railings and other ornamental steelwork
  • Suitable for repetitive installation tasks

For approval or certificate information, please see individual items.
