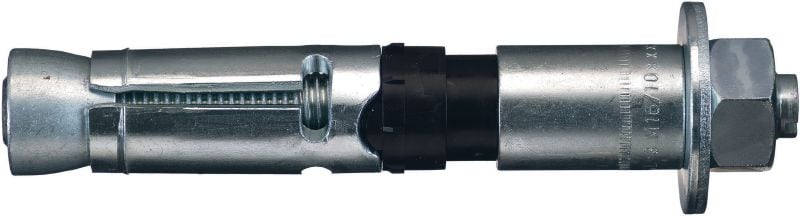

HSL-3-G Heavy-duty wedge anchor

5953.tif
K4A2HSL-TZ.tif
HSL-3-G
00001263.tif

Ultimate-performance heavy-duty expansion stud anchor with approvals for safety-relevant applications in concrete (carbon steel, external thread)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Approvals / Test reports: ETA, Fire, Seismic

Choose options

Anchor size - D
  • M8
  • M10
  • M12
  • M16
  • M20
  • M24
Anchor length - L
  • 87 mm
  • 100 mm
  • 102 mm
  • 115 mm
  • 119 mm
  • 122 mm
  • 135 mm
  • 139 mm
  • 148 mm
  • 155 mm
  • 163 mm
  • 164 mm
  • 170 mm
  • 182 mm
  • 188 mm
  • 190 mm
  • 195 mm
  • 214 mm
  • 215 mm
  • 220 mm
  • 238 mm
  • 260 mm
Pack size
  • 4 pc
  • 6 pc
  • 10 pc
  • 20 pc
  • 40 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 626.40 ILS

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / Test reports
ETA, Fire, Seismic
Base materials
Concrete (cracked), Concrete (uncracked)
Type of fixing
Through-fastening
PROFIS Software
Yes

Documents

pdf ETA 02/0042 for HSL-3 heavy-duty expansion anchor, English, German, French, Polish [ 6 MB ]
pdf ICC ESR-1545 for HSL-3 Heavy Duty Expansion Anchors, English [ 1.8 MB ]
pdf VdS for HSL-3, German [ 41.1 KB ]

Features & Applications

Features

  • High tensile and shear load capacity
  • Force-controlled expansion allows follow-up expansion
  • ETA Option 1 for cracked and uncracked concrete
  • ICC-ES/AC 193 for cracked and uncracked concrete and seismic
  • Suitable for dynamic loading including fatigue, seismic and shock

Applications

  • Heavy-duty fastenings in highly safety-relevant or dynamic applications, including applications in nuclear power plants
  • Applications where extensive approval back-up or technical back-up is required, e.g. machines, heavy equipment, steel columns, heavy pipe supports, pumps, beam supports, medical equipment, cantilevers, cranes, car hoists, etc.

For approval or certificate information, please see individual items.
