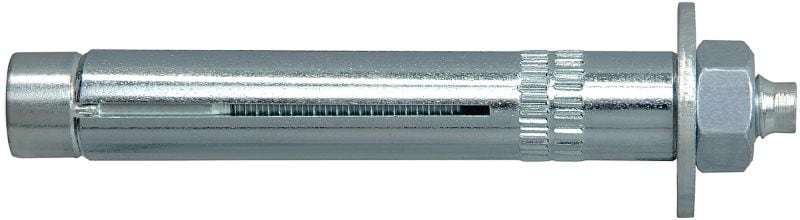

HKH Hollow deck anchor
Economical hollow deck anchor with approval for fastening sprinklers to pre-stressed concrete hollow decks
- Head configuration: Externally threaded
- Environmental conditions: Indoor, dry conditions
- Approvals / Test reports: DIBt, Fire, VDS
Choose options
Anchor size - D
- M6
- M8
- M10
Anchor length - L
- 86 mm
- 88 mm
- 93 mm
Pack size
- 50 pc
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 604.20 ILS
Technical Data
Head configuration
Externally threaded
Environmental conditions
Indoor, dry conditions
Approvals / Test reports
DIBt, Fire, VDS
Material, corrosion
Carbon steel, zinc-plated
Type of fixing
Through-fastening
Documents
Features & Applications
Features
- Highest safety and reliability thanks to the visual setting mark
- No exhausting overhead hammering due to the low expansion force needed
- Through fastening possible
- Machine setting tool available for a faster fastening
- Compliant with all the relevant approvals: DIBt, VdS
Applications

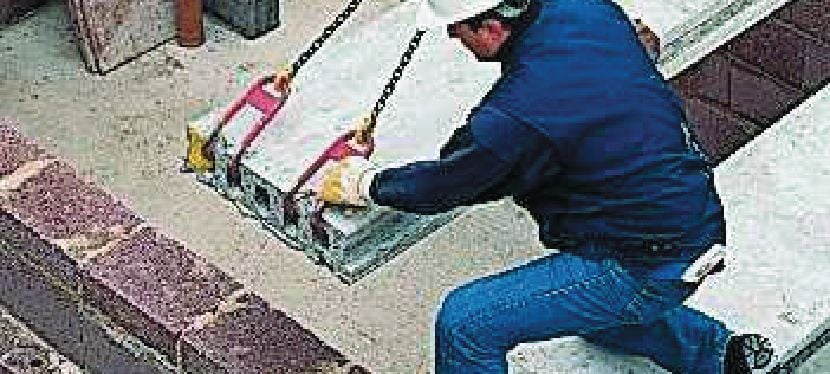

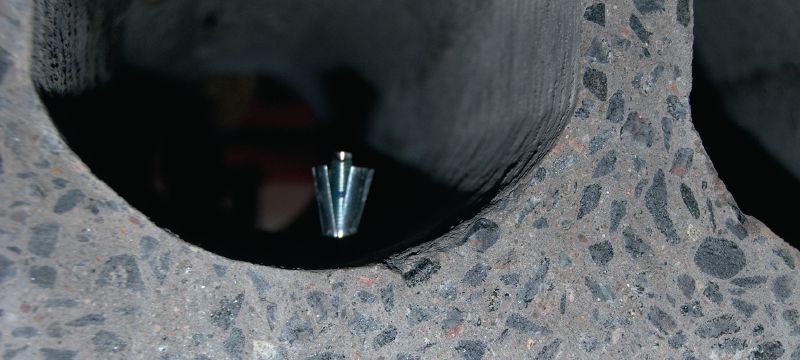

- All fastenings in hollow slab concrete, especially in ceilings.
- Sprinkler installations
- Single point fastening for pipe fixing
- Fixing of channels to ceiling for multiple pipe fixings
- Suspended ceilings
For approval or certificate information, please see individual items.
