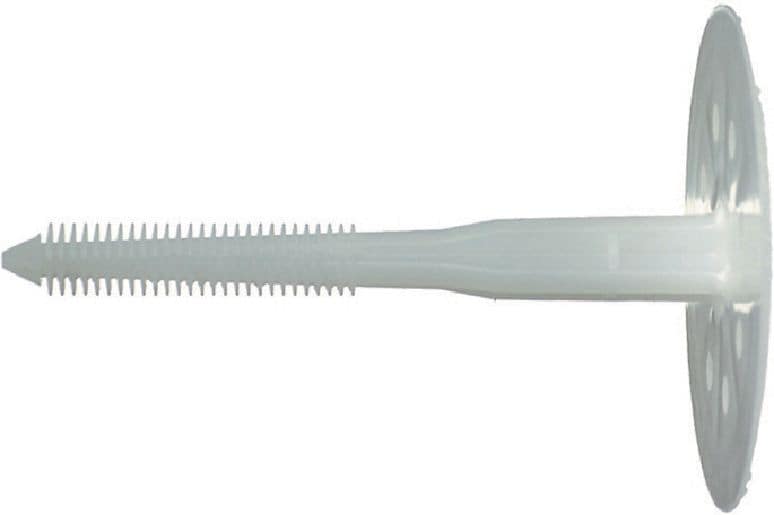

IDP Insulation fastener
Economical plastic insulation anchor for fastening hard insulating materials to concrete and masonry
- Base materials: Masonry (solid), Masonry (hollow), Concrete (tough)
- Working principle: Impact anchor
- Insulation material: Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
Choose options
Insulation material thickness fastened - max
- 20 mm
- 40 mm
- 60 mm
- 80 mm
- 100 mm
- 120 mm
- 150 mm
Drill bit diameter
- 8 mm
Anchor length - L
- 50 mm
- 70 mm
- 90 mm
- 110 mm
- 130 mm
- 150 mm
- 180 mm
Pack size
- 250 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 281.20 ILS
Technical Data
Base materials
Masonry (solid), Masonry (hollow), Concrete (tough)
Working principle
Impact anchor
Insulation material
Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
Approvals / Test reports
N/A
Type of fixing
Through-fastening
Material composition
Polyamide
Material, corrosion
Plastic
Documents
Features & Applications
Features
- Quick and easy impact installation
- Insulating material thickness: up to 150 mm
- Depth of embedment: 25 mm
Applications
- Fastening hard, self-supporting, insulating materials such as expanded polystyrene
For approval or certificate information, please see individual items.
