HST4 DN Wedge anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products

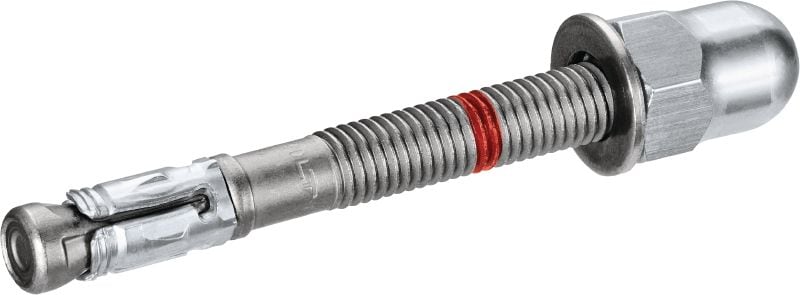

Still life image of the HST 4 DN wedge anchor with cup nut mounted

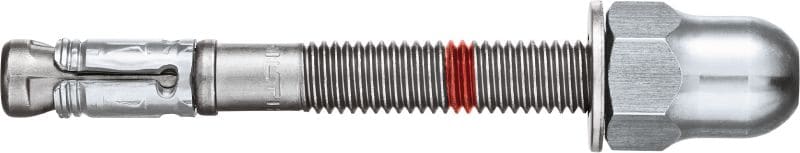

Still life image of the HST 4 DN wedge anchor with cup nut mounted
Baseplate application picture with the wedge anchor HST4 and cordless combihammer TE 60-22 with vaccuum VC 10 in the background.
Railing baseplate application picture showing the set up the wedge anchor HST 4 with the cordless impact wrench SIW 6AT-22.
Image showing the overhead application where piping is fixed with clamps and the HST4 wedge anchor using the cordless impact wrench SIW 6AT-22.

Our highest performing metal wedge expansion anchor for bearing high static and seismic loads in cracked concrete (carbon steel, dome nut)

  • Material, corrosion: Carbon steel, zinc-plated, Zinc plated (min. 5 microns)
  • Head configuration: Dome head
  • Installation tools: TE 30-22 Cordless rotary hammer, TE 6-22 Cordless rotary hammer, SIW 4AT-22 ½” Cordless impact wrench, SIW 6AT-22 Mid-Torque impact wrench

Choose options

Anchor size - D
  • M10
  • M12
Anchor length - L
  • 90 mm
  • 100 mm
  • 105 mm
  • 115 mm
Pack size
  • 25 pc
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 804.74 ILS

Technical Data

Material, corrosion
Carbon steel, zinc-plated, Zinc plated (min. 5 microns)
Head configuration
Dome head
Installation tools
TE 30-22 Cordless rotary hammer, TE 6-22 Cordless rotary hammer, SIW 4AT-22 ½” Cordless impact wrench, SIW 6AT-22 Mid-Torque impact wrench
PROFIS Software
Yes

Documents

Approval document
Technical information
Brochure
Sustainability Documentation
Operating Instruction
pdf ETA-21/0878 HST4 , English, French, Polish, German [ 8.1 MB ]
pdf ER_0815_HST4(-R)_Evaluation_Report, English [ 1 MB ]

Features & Applications

Features

  • Innovative performance – our next-generation anchors offer improved concrete capacity and pull-out loads, allowing you to optimize baseplate size and anchor usage and get more value out of your materials
  • Unlock flexibility – anchors can be securely installed in shallow embedment depths for productivity and deep embedment depths for increased performance with flexible edge and spacing distances
  • Faster and easier installation – install our full range of anchors quickly with our Adaptive Torque compatible tools and without the need for borehole cleaning
  • Safer and more reliable– patented anti-spin expansion cone designed to eliminate spinning issues for a more reliable anchor installation
  • Cost-saving design – pair with PROFIS Engineering software to simplify the design of steel-concrete connections and reduce material costs

Applications

  • Fastening baseplates, handrails, façade systems, and mechanical, electrical, or plumbing supports to concrete
  • Fastening in cracked and uncracked concrete required for building code compliancy
  • Qualified to resist seismic actions and loads; for full coverage of ETA approved C1 and C2 critical connection requirements
  • Suitable for dry indoor use
  • With galvanized dome nut – hammer in the pre-assembled sturdy nut cap for a safer, more attractive finish

For approval or certificate information, please see individual items.
