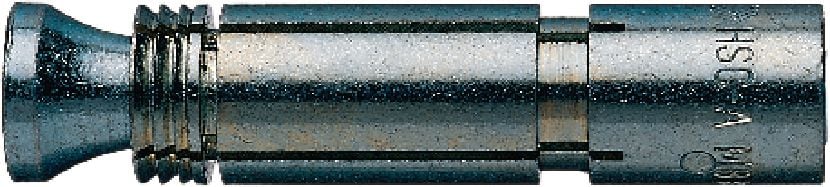

HSC-I Shallow undercut anchor

Ultimate-performance shallow undercut anchor (carbon steel, internal thread)

Anchor size - D

Standard embedment depth

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 477.00 ILS

Material, corrosion

Carbon steel, zinc-plated, Zinc plated (min. 5 microns)

Head configuration

Inner thread

Approvals / Test reports

ETA, Fire

PROFIS Software

Yes

Type of fixing

Pre-fastening

Shallow embedment depth for thin concrete slabs or where permissible drilling depth is limited
Combines high working loads with small edge distances and close spacing thanks to very low expansion forces
Self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed
The resulting keying effect keeps the anchor secure even in cracked concrete under shock loads
Requires a plain cylindrical hole to be drilled, no separate undercutting operation

Safety-relevant, medium-duty fastenings in cracked or uncracked concrete, especially where shallow embedment and/or small edge distance or close spacing is required

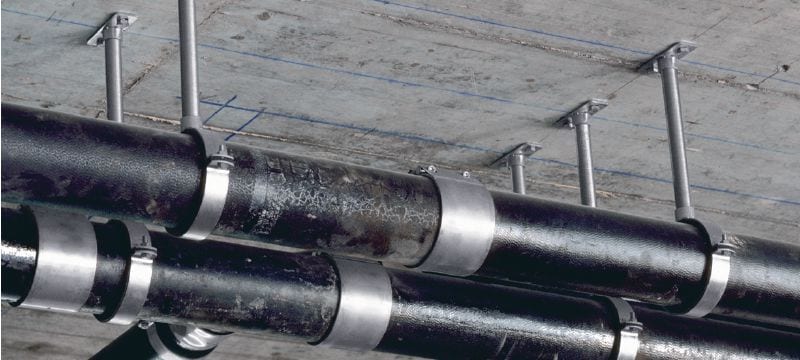

Examples: stair hand rails, sprinkler pipes, air ducts, seating, facade substructures, car park barriers, etc.

For approval or certificate information, please see individual items.
