HDA-P Undercut anchor

Ultimate-performance pre-set undercut anchor for dynamic loads (zinc-plated)

Material, corrosion: Carbon steel, zinc-plated, Zinc plated (min. 5 microns)
Head configuration: Externally threaded
Approvals / Test reports: ETA, Fatigue, ICC-ES report (concrete), Nuclear (NQA-1), Seismic

Anchor size - D

Standard embedment depth

Max. fixture thickness at standard embedment depth

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 2,782.00 ILS

Technical Data

Material, corrosion

Carbon steel, zinc-plated, Zinc plated (min. 5 microns)

Head configuration

Externally threaded

Approvals / Test reports

ETA, Fatigue, ICC-ES report (concrete), Nuclear (NQA-1), Seismic

Seismic loading

Yes

Fatigue loading

Yes

PROFIS Software

Yes

Type of fixing

Pre-fastening

Combines the flexibility and immediate loading capability of a post-installed mechanical anchor with the performance of a cast-in-place headed stud
Close spacing and small edge distances thanks to low expansion forces
Self-undercutting facilitates faster and more reliable installation without need for a separate undercutting tool or additional operations

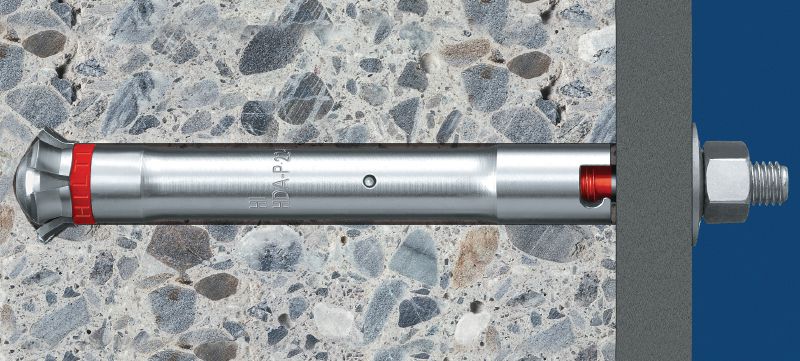

The resulting keying effect provides a more secure hold even in cracked concrete under dynamic loading
Manufactured under an NQA-1 nuclear quality assurance program with comprehensive approvals

Safety-relevant, heavy-duty fastenings for all dynamic loading (shock, seismic and fatigue) in cracked or uncracked concrete, including applications in nuclear power plants

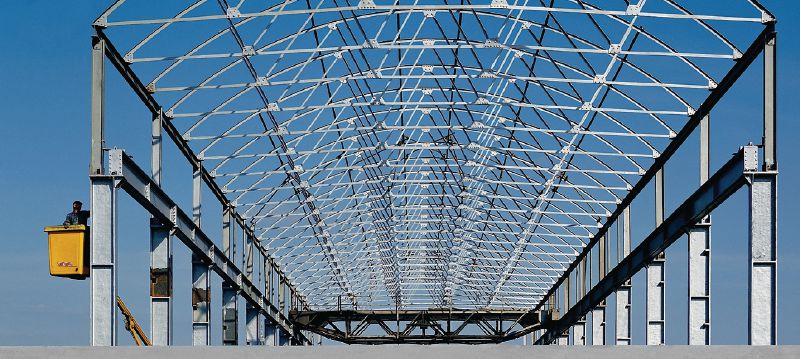

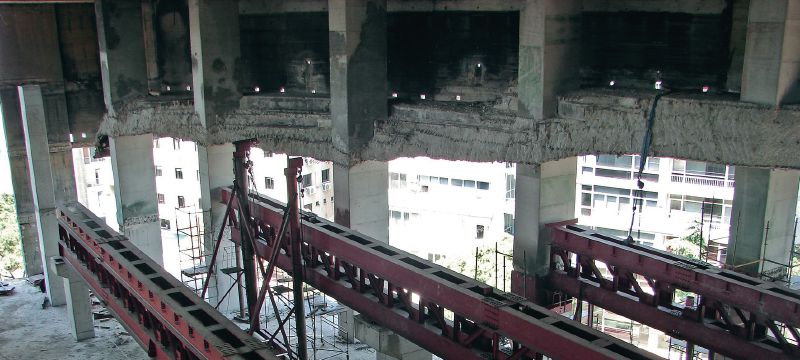

Fastenings to support heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fixings, elevator tracks, bridge retrofitting etc.

For approval or certificate information, please see individual items.
