HDA-T Undercut anchor

Ultimate-performance through-set undercut anchor for dynamic loads (zinc-plated)

Material, corrosion: Zinc plated (min. 5 microns)
Head configuration: Externally threaded
Approvals / Test reports: ETA, Fatigue, ICC-ES report (concrete), Nuclear (NQA-1), Seismic

Anchor size - D

Standard embedment depth

Max. fixture thickness at standard embedment depth

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 2,952.00 ILS

Technical Data

Material, corrosion

Zinc plated (min. 5 microns)

Head configuration

Externally threaded

Approvals / Test reports

ETA, Fatigue, ICC-ES report (concrete), Nuclear (NQA-1), Seismic

Seismic loading

Yes

Fatigue loading

Yes

PROFIS Software

Yes

Type of fixing

Through-fastening

Combines the advantages of a post-installed mechanical anchor, i.e. flexibility and immediate loading, with the performance of a cast-in-place headed stud
Close spacing and small edge distance thanks to low expansion forces
Self-undercutting facilitates fast and reliable installation without the need for a separate undercutting tool or additional operations
The resulting keying effect provides a secure hold even in cracked concrete under dynamic loading
Manufactured under an NQA-1 nuclear quality assurance program with comprehensive approvals

Safety-relevant, heavy-duty fastenings for all dynamic loading (shock, seismic and fatigue) in cracked or uncracked concrete, including applications in nuclear power plants

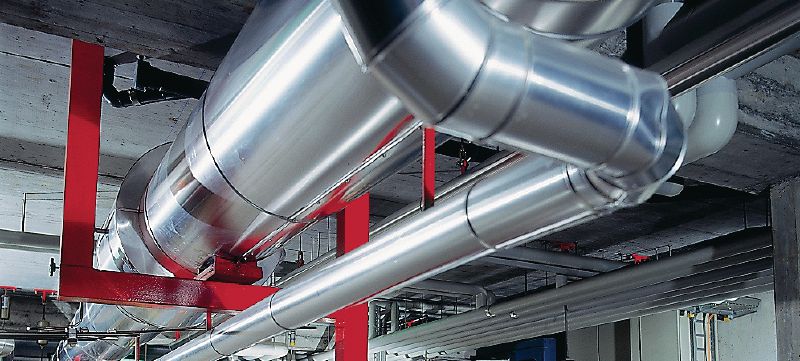

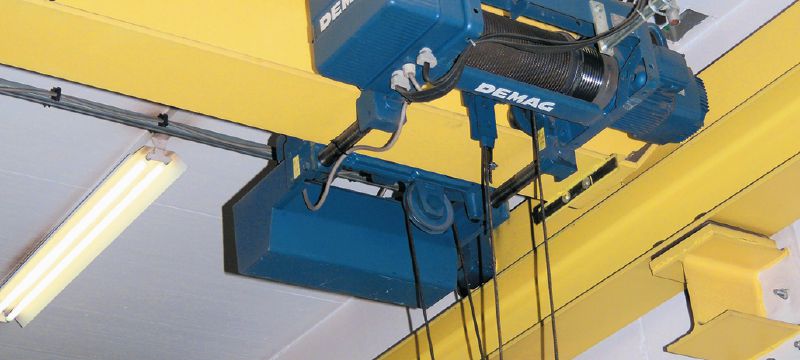

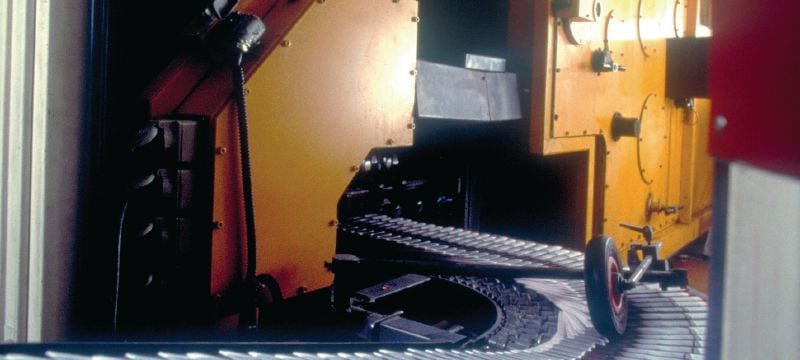

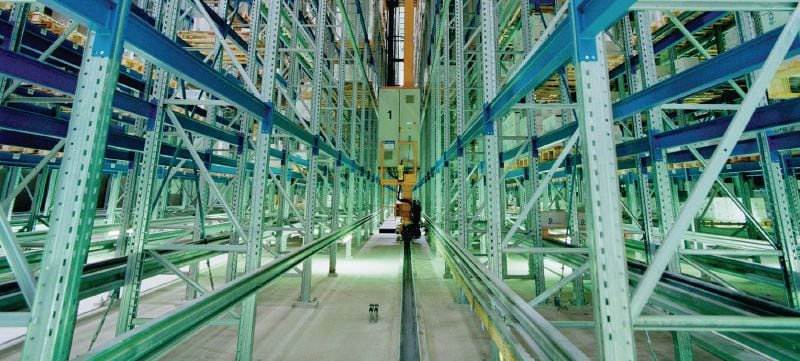

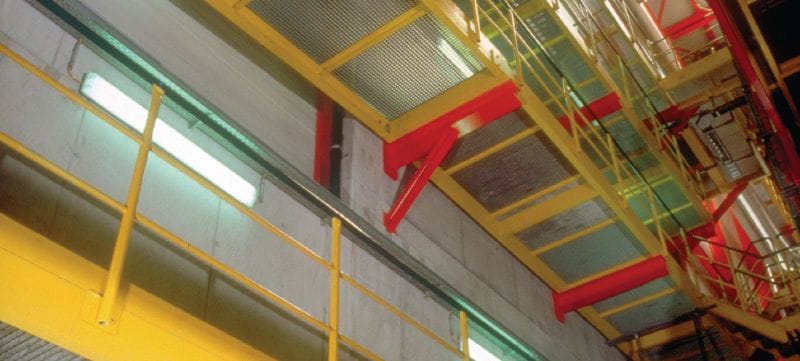

Fastenings to support heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fixings, elevator tracks, bridge retrofitting etc.

For approval or certificate information, please see individual items.
