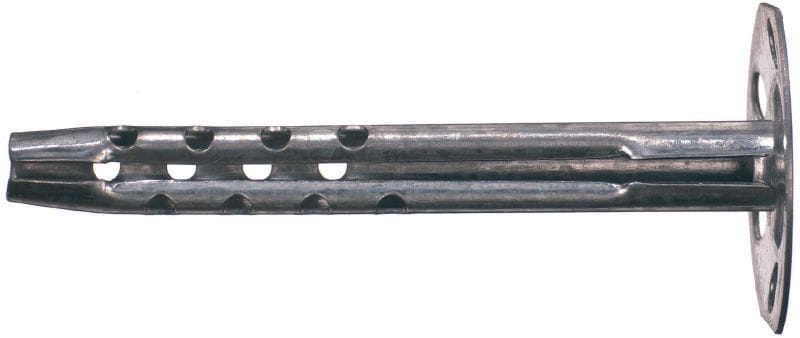

IDMS Metal insulation dowel

Insulation mandrel IDMS 6/ 9 #65754

Economical metal insulation anchor for fastening insulating materials when fire resistance is required

Base materials: Masonry (solid), Masonry (hollow), Concrete (tough)
Working principle: Impact anchor
Drill bit diameter: 8 mm

Choose options

Insulation material thickness fastened - max

90 mm

Drill bit diameter

8 mm

Anchor length - L

140 mm

Pack size

250 pc

Product options

Quantity

Pack

Total Pieces

250

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

545.30 ILS

2.18 ILS / 1 each

Technical Data

Base materials

Masonry (solid), Masonry (hollow), Concrete (tough)

Working principle

Impact anchor

Drill bit diameter

8 mm

Insulation material

Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)

Approvals / Test reports

Fire

Material composition

Steel, zinc-plated

Material, corrosion

Carbon steel, zinc-plated

Documents

Features & Applications

Features

Certified fire resistance
Fire resistant fastener for insulation materials up to 150 mm
Simple setting by hammering
Versatile use for all standard insulation materials
Insulation plates available for soft insulation material

Applications

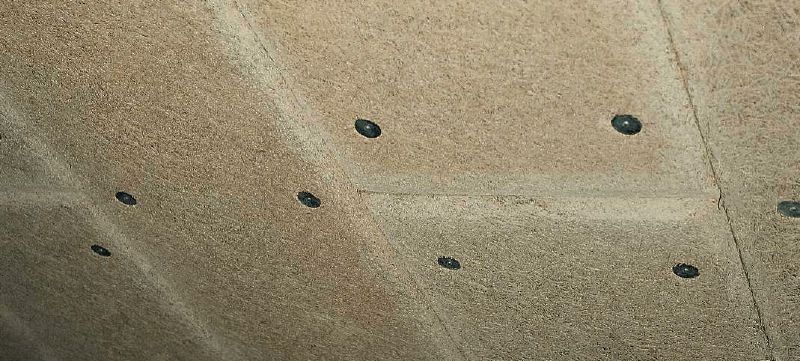

Insulation fastenings with fire resistance requirements
