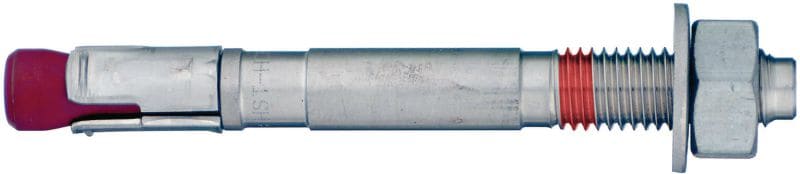

HST-HCR Wedge anchor
Ultimate-performance wedge anchor for everyday static and seismic loads in cracked concrete (high corrosion resistance)
- Material, corrosion: Stainless steel, HCR (High-Corrosion Resistance)
- Head configuration: Externally threaded
- Approvals / Test reports: ETA, Fire, Seismic
Choose options
Anchor size - D
- M8
- M10
- M12
- M16
Anchor length - L
- 75 mm
- 90 mm
- 95 mm
- 115 mm
- 130 mm
- 140 mm
- 145 mm
- 165 mm
Pack size
- 10 pc
- 20 pc
- 25 pc
- 50 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 5,017.50 ILS
Technical Data
Material, corrosion
Stainless steel, HCR (High-Corrosion Resistance)
Head configuration
Externally threaded
Approvals / Test reports
ETA, Fire, Seismic
Base materials
Concrete (cracked)
Type of fixing
Pre-fastening, Through-fastening
Installation tools
TE 6-A36 Cordless rotary hammer
PROFIS Software
Yes
Documents
Features & Applications
Features
- High performance stud anchor. The optimised design of expansion cone and wedge, combined with special steel and coatings, ensure outstanding performance in cracked and non-cracked concrete.
- Suitable for applications in cracked concrete
Applications
- Particularly suited to safety-relevant applications in high corrosive environments:
For approval or certificate information, please see individual items.
