X-SW 30 Soft washer with nail

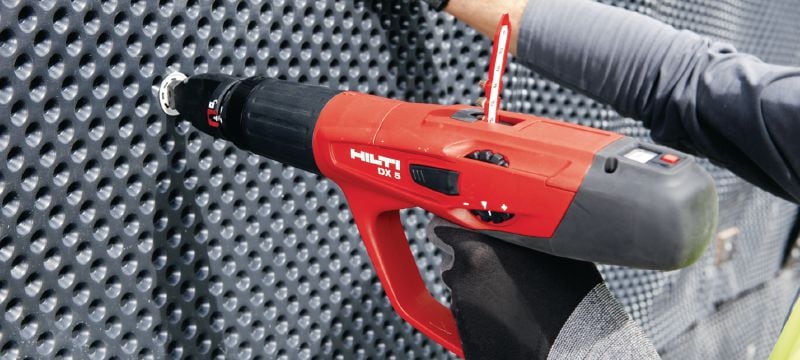

Powder actuated tool DX 5 F8, Building & Construction, water membrane, File name: L090220_cropped.tif, r66753

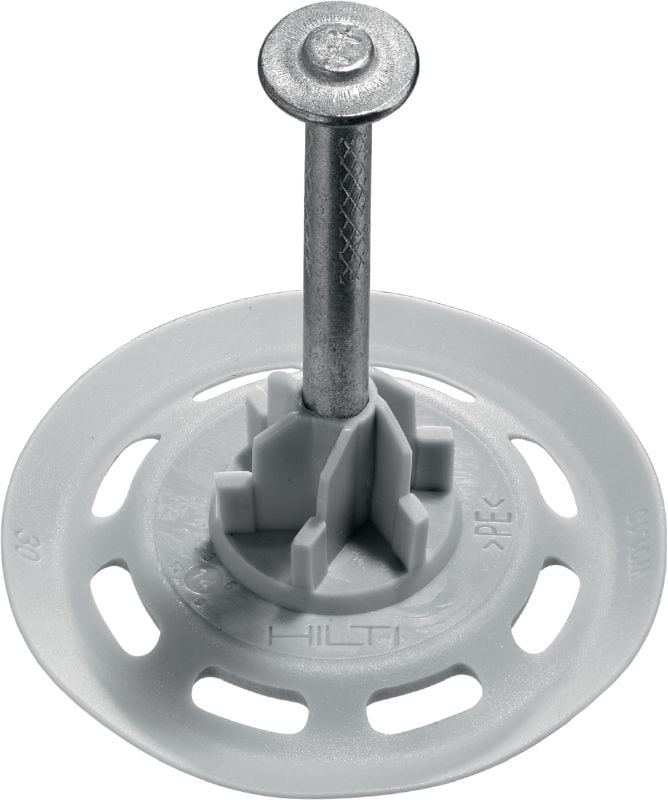

Plastic membrane washer with pre-mounted nail, for attaching waterproofing membrane to concrete or masonry

Application: Water proofing
For use with (tools): DX 2, DX 351, DX 460, DX 5, DX 6
Corrosion protection: Galvanized zinc coated <20 µm

Choose options

Diameter

30 mm

Fastener shank length

37 mm
47 mm

Length

37 mm
47 mm

Pack size

150 pc
400 pc
500 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 246.00 ILS

Technical Data

Application

Water proofing

For use with (tools)

DX 2, DX 351, DX 460, DX 5, DX 6

Corrosion protection

Galvanized zinc coated <20 µm

Environmental Conditions

Dry indoor, Indoor environments with temporary condensation, Outdoor temporary applications, Outdoor, rural or urban environment with low pollution, Outdoor with moderate concentration of pollution, Coastal areas, Outdoor, areas with heavy industrial pollution, Close proximity to roads, Special applications

Approvals

N/A

Diameter

30 mm

Base materials

Concrete (soft), Concrete, Masonry (solid limestone brick)

Documents

Features & Applications

Features

Adequate bearing surface for superior clamping of thin membranes
Helps to prevent tearing or ripping of thin or soft membranes
Flexible, soft plastic washer conforms to uneven surfaces
30 mm soft washer – suitable for fastening fabric waterproofing membranes to concrete surfaces
