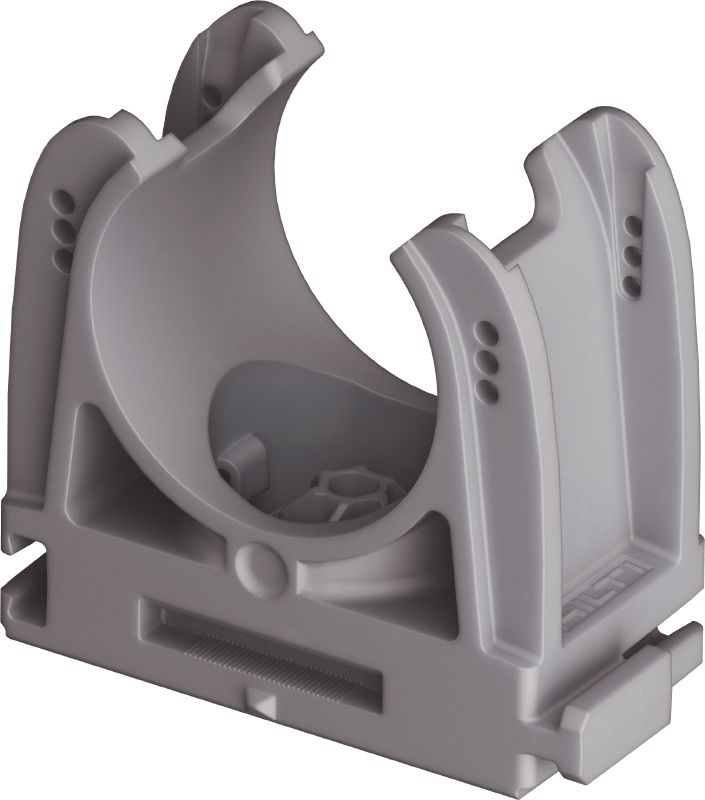

X-EKS MX (02) Conduit clip
New productItem #r19753807
Plastic conduit clip optimized for collated nails and compatible with a wide variety of fastening methods and base materials
- Application: Electrical applications
- Material: High-density polyethylene (HDPE)
- Base materials: Concrete (soft), Concrete (tough), Masonry (solid limestone brick), Steel, Wood, Masonry, brick/hollow brick
Features
- Optimized for your BX nailer – friction-fit nailer nose and drill-less fastening method allows for faster, easier, and virtually dust-free installations
- Versatile fastening methods – compatible with push-fit anchors, wood and metal screws, or standard plastic anchors for fastening to a wide variety of base materials
- Interlocking system – fully modular system allows you to combine multiple conduit clips and clamps to increase your range of applications
- Fully adjustable – flexible interface allows you to adjust the clip into position even after fastening, helping you avoid wasted materials and re-fastening
- ETA approved and more eco-friendly – ETA approved solution, UL listed, and made with up to 63% less product carbon footprint compared to legacy version (based on LCA according to DIN EN ISO 14040/44)
Applications

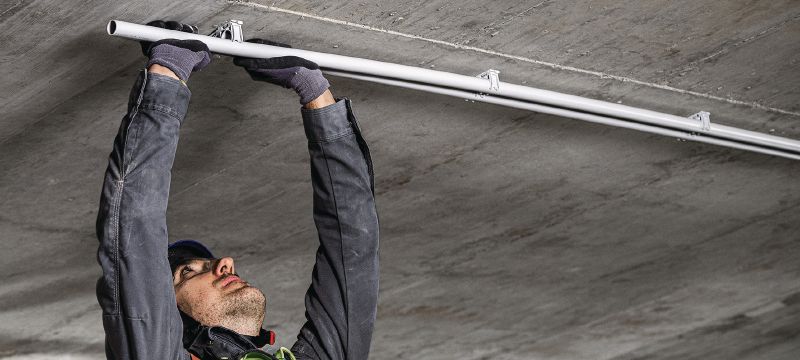

- Fastening cable conduits to floors, walls, and ceilings
- Typical spacing between elements less than 50cm – load requirements must be taken into consideration
- Fastening to virtually all base materials -concrete, masonry, brick, hollow-brick, drywall, steel, wood and more
- For indoor applications
For approval or certificate information, please see individual items.
