X-CC DKH ceiling clip

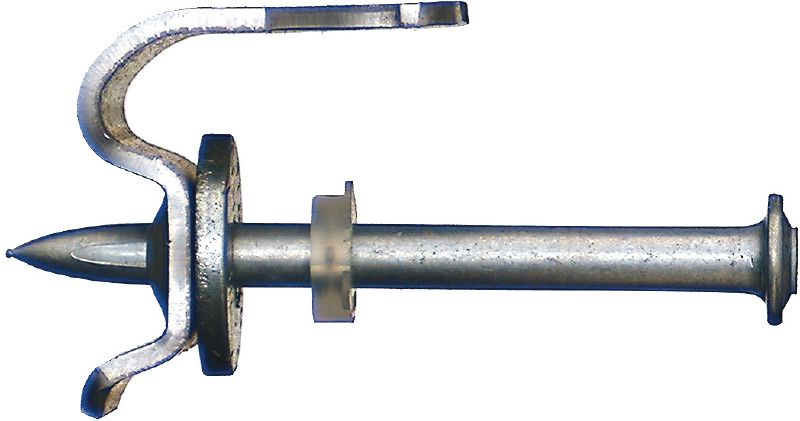

Ceiling clip X-CC DKH48P8S15 #299937

Configurator
Technical Data
Documents
Features & Applications
Related Products
7018.tif
5285.tif

Ceiling clip for use with the DX Kwik technique

  • Application: Acoustic ceiling
  • Material: Carbon steel
  • Base materials: Concrete, Light-weight concrete, Concrete over metal deck
ultimate

Choose options

Fastener shank length
  • 48 mm
Pack size
  • 100 pc
 Product options
Quantity
Pack
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
317.00 ILS
3.17 ILS
/
1 each

Technical Data

Application
Acoustic ceiling
Material
Carbon steel
Base materials
Concrete, Light-weight concrete, Concrete over metal deck
Environmental Conditions
Dry indoor
For use with (tools)
DX 460 F8, DX 5 F8
Approvals
ITB
Fastener shank length
48 mm
Fastener length range
48 - 48 mm
Point type
Ballistic point
Fastener shank diameter
4 mm
Product Class
Ultimate

Documents

Technical information
Approval document
Operating Instruction
pdf X-CC DKH Data Sheet, English [ 706.2 KB ]
pdf DX-Kwik, X-M6H, X-M8H, DNH, X-DKH Data Sheet, English [ 1.8 MB ]
pdf X-HS, X-CC Data Sheet, English [ 1.6 MB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

  • Enhanced load capacity due to deep embedment
  • Suitable for use on hard or tough concrete, such as renovation jobs on older concrete
  • With the DX Kwik technique – fastenings are driven into a small pre-drilled hole, increasing the stick rate to almost 100% while protecting the base material from spalling
  • Peace of mind – European Technical Assessment (ETA) approved system for suspended ceilings
  • Suitable for hook ceiling hangers

Applications

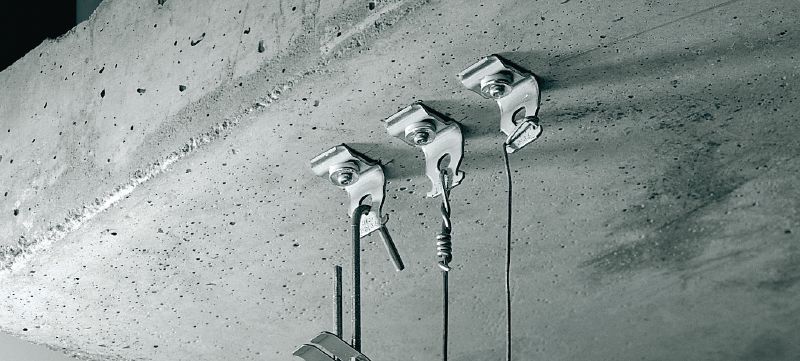

  • Fastening suspended ceilings to concrete slabs, using hook type hangers
  • Hanging suspended ceilings with an ETA approved solution
