X-FS C Formwork spacer with nail
Form stop X-FS C52 #407346

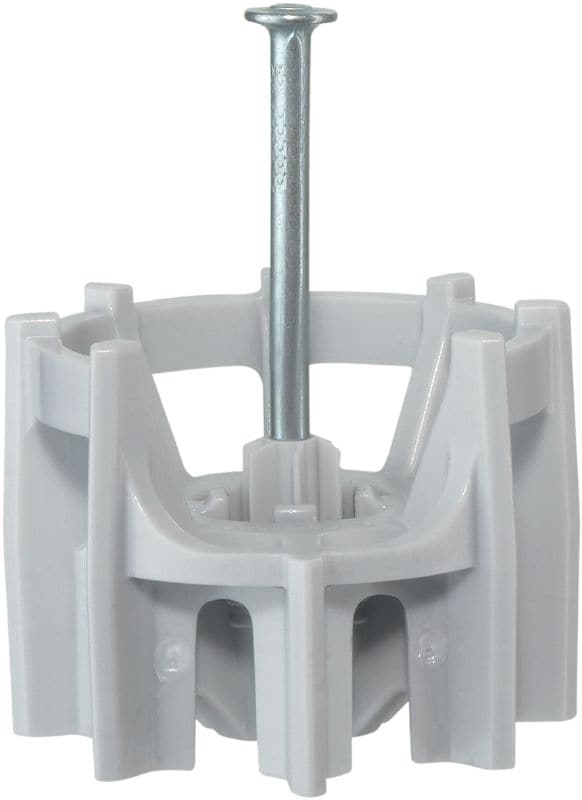

Formwork spacer with pre-mounted nail for positioning formwork on concrete footings
- Dimensions (LxWxH): 49.3 x 49.3 x 55 mm
- Material: High-density polyethylene (HDPE), Halogen-free, Silicone-free
- Color: Light grey (RAL 7035)
premium
Choose options
Length
- 49 mm
Premounted nail type
- X-C 52
Pack size
- 100 pc
Quantity
Pack
Total Pieces
100
Discounted net
451.00 ILS
4.51 ILS / 1 each
Technical Data
Dimensions (LxWxH)
49.3 x 49.3 x 55 mm
Material
High-density polyethylene (HDPE), Halogen-free, Silicone-free
Color
Light grey (RAL 7035)
Application
Formwork
Base materials
Concrete
Minimum thickness of base material (concrete)
80 mm
For use with (tools)
DX 2, DX 36, DX 460 F8, DX 460 MX, DX 5 F8, DX 5 MX
Product Class
Premium
Documents
Features & Applications
Features
- Facilitates quick and easy positioning of formwork panels on concrete footings
- Designed for extremely high productivity – up to five times faster than traditional methods
- Easy to install – even on rough concrete surfaces
- Stronger bond with the concrete due to large openings
- Formwork spacers remain hardly visible or fully hidden in concrete after removing formwork
Applications

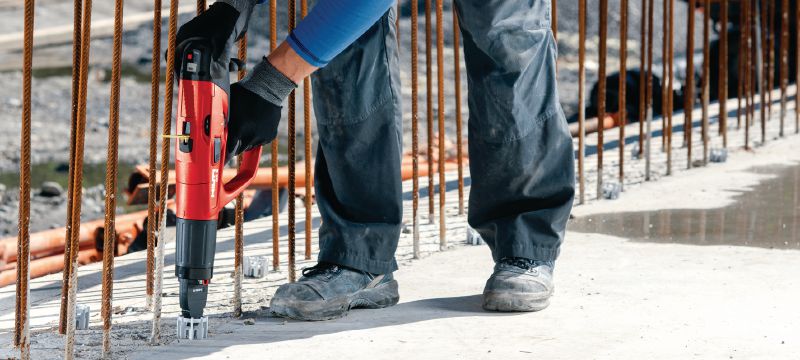

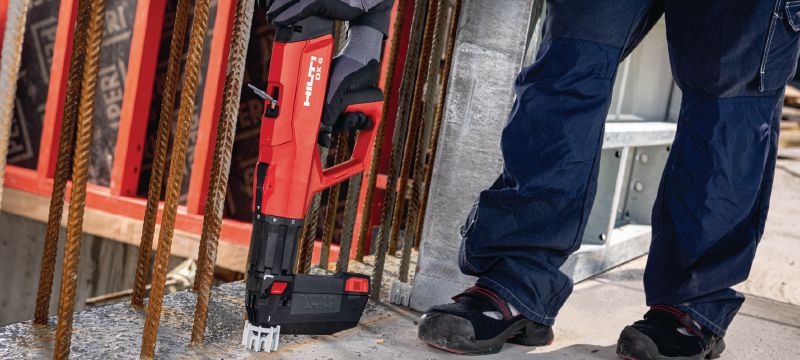

- Positioning formwork on concrete footings
