HIT-RE 500 V4 Epoxy anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products

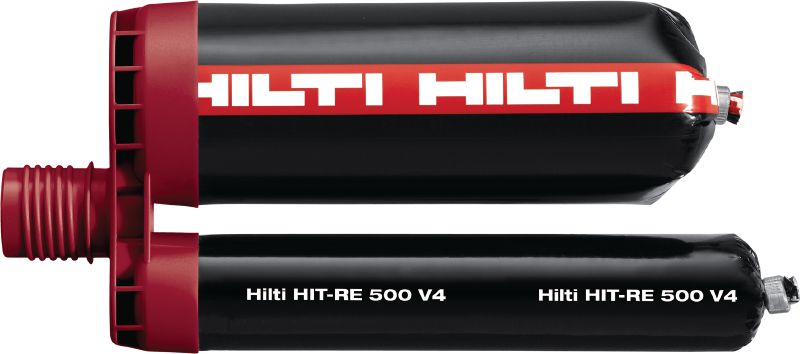

Still life RE 500 V4

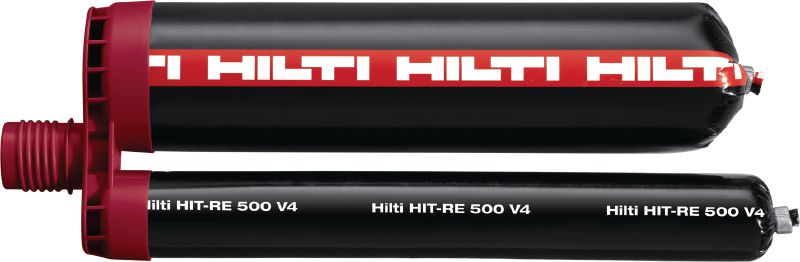

Still life RE 500 V4 500ml

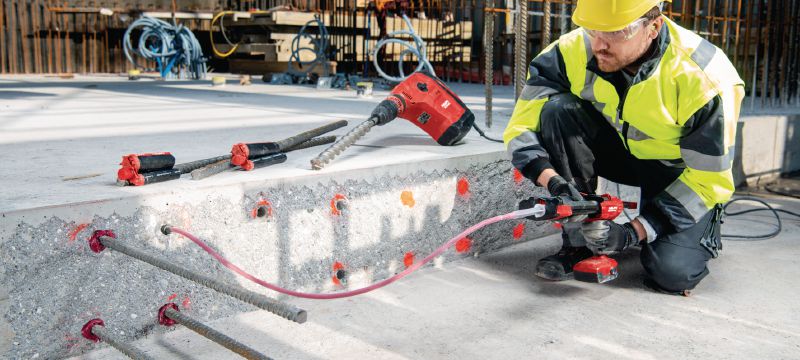

Deep rebar injection with HDE dispenser and piston plug

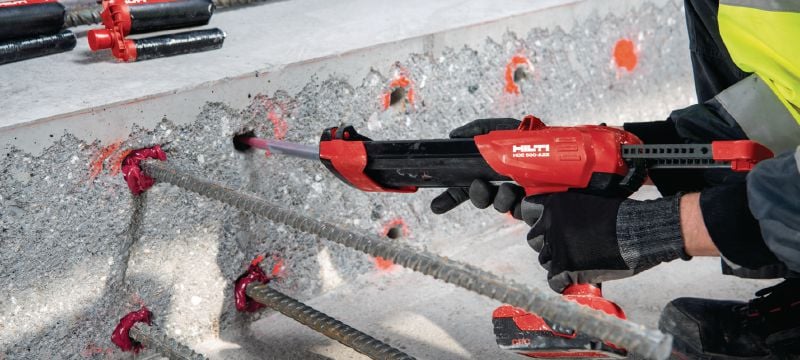

Rebar injection with HDE dispenser close-up, r12629857

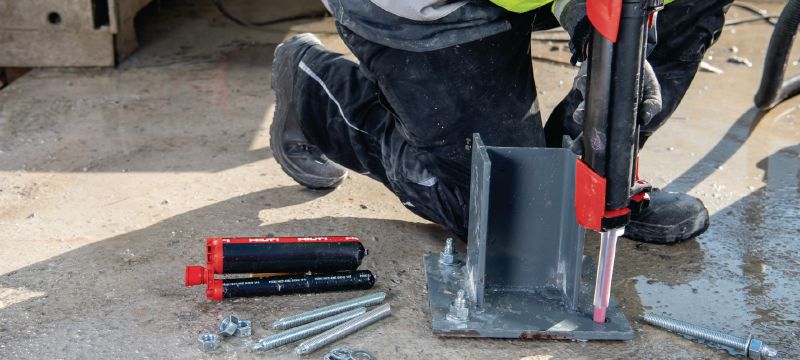

SBP installation with RE 500 V4 and SAFESET in wet concrete, close-up

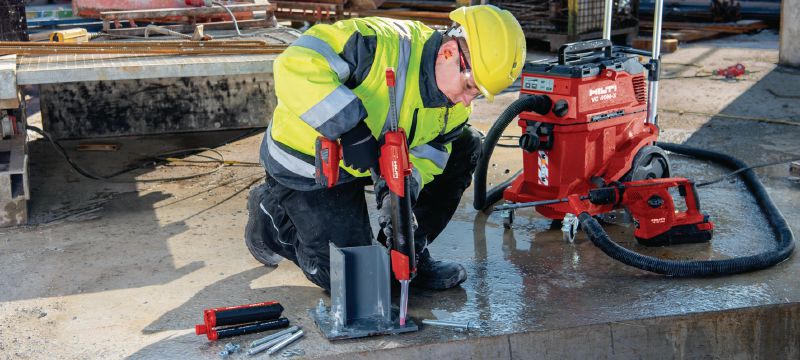

SBP installation with RE 500 V4 and SAFESET in wet concrete

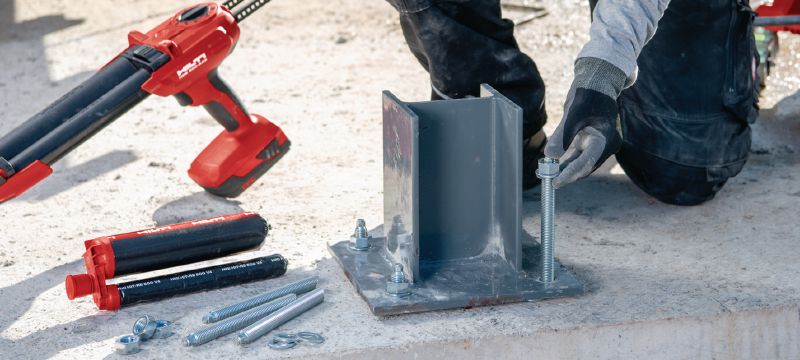

SBP installation with RE 500 V4 and SAFESET close-up

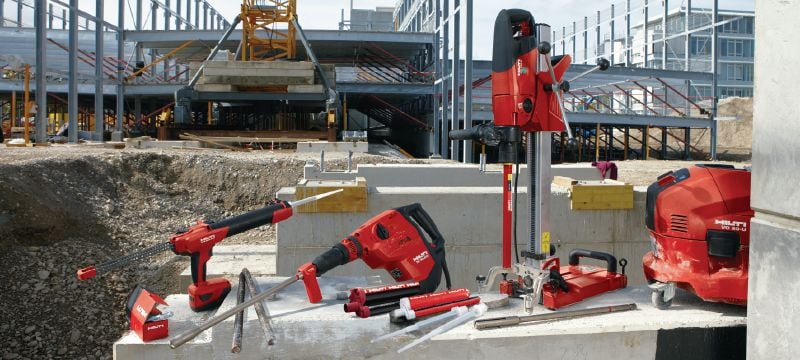

RE 500 V4 and HY 200 R V3 mortars including full safeste system: VC 20 vacuum with HDB, DD

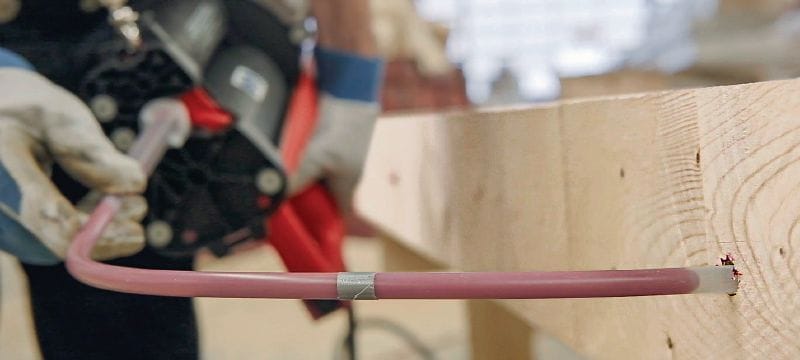

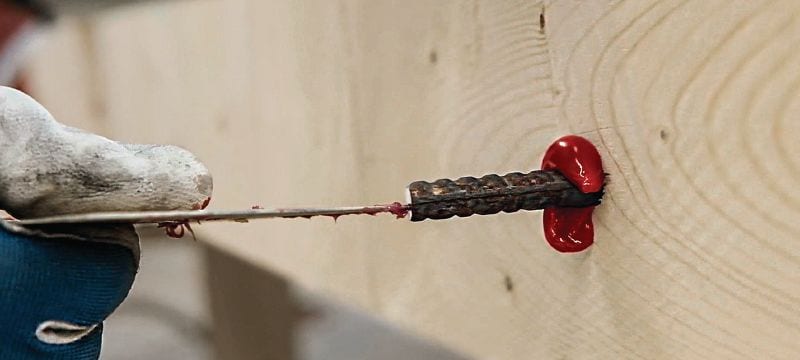

Glued-in rod in wood by RE 500 V3, r4929903
Glued-in rod in wood by RE 500 V3, r4929903

Ultimate-performance injectable epoxy mortar with approvals for rebar connections and heavy-duty anchoring

  • Base materials: Concrete (cracked), Concrete (uncracked), Some natural stone, Wood
  • Base material condition (as per approval): Dry, Submerged, Water-filled
  • Approvals / Test reports: ETA

Choose options

Content per can/cartridge
  • 0.33 l
  • 0.5 l
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 159.60 ILS

Technical Data

Base materials
Concrete (cracked), Concrete (uncracked), Some natural stone, Wood
Base material condition (as per approval)
Dry, Submerged, Water-filled
Approvals / Test reports
ETA
Seismic loading
Yes
Fatigue loading
Yes
Fire resistance
Yes
PROFIS Software
Yes
Environmental conditions
Outdoor
Cleaning procedures
Manual Cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 75 °C
Free of styrene
Yes

Documents

Approval document
Technical information
HSE Information
Certificate
Brochure
Material safety datasheet
Sustainability Documentation
Operating Instruction
pdf ETA-20/0475 HCC-K, English, German, Polish, French [ 3.8 MB ]
pdf ETA-20/0697 HCC-U, English, German, French [ 14.9 MB ]
pdf ETA-25/0448, HIT-RE 500 V4, concrete to concrete connection, 120 year, ML, English, French, German [ 4.5 MB ]
pdf ETA-23/0277 HAS-U A4 Fatigue, English, German, Polish [ 5.3 MB ]
pdf ETA-25/0752, HIT-RE 500 V4, for fastening in concrete, 120 year, ML, French, English, German, Polish [ 9.4 MB ]

Features & Applications

Features

  • Ultimate performance and model code-compliant design for virtually any concrete-to-concrete and steel-to-concrete connections – ETA assessment for anchoring inc. C1 and C2 seismic and ETA for rebar inc. fire and seismic
  • The first epoxy mortar qualified according to EAD 332402-00-0601 for concrete-to-concrete connections – end anchorages with an acting moment can now be designed and executed with post-installed rebars without splices according to the latest update of design TR069 for static, seismic and fire loading for fire requirements up to 240min
  • Suitable for the toughest jobsite conditions – works even in diamond-cored, wet or underwater holes (depending on rod specification and approvals), extremely deep injections, large diameters and at temperatures down to -5°C / 23°F
  • Improved bond strength in the most demanding applications – such as cracked concrete and seismic C2 conditions
  • Easier to specify and order – use PROFIS Engineering to design baseplate connections and PROFIS Rebar to design concrete-to-concrete connections according to EC2, TR069 or the Hilti Design Method

Applications

  • Structural connections with post-installed rebar (e.g. slab extensions, wall/column connections, stairs, foundations, etc.)
  • Structural renovation of buildings, bridges and other civil works, retrofitting and re-strengthening of concrete members
  • Anchoring structural steel connections (e.g. steel columns, beams, etc.)
  • Fastening structural baseplates, including in cracked concrete and challenging seismic conditions
  • Fastening in natural stone and wood, including GLT and CLT made from spruce, pine or fir

For approval or certificate information, please see individual items.
