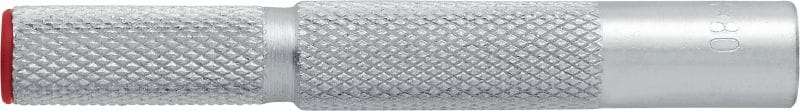

HIT-IC Internally threaded sleeve
High-performance internally threaded sleeve for masonry fastenings (carbon steel)
- Material, corrosion: Carbon steel, zinc-plated
- Environmental conditions: Dry indoor
- Base materials: Masonry (hollow), Masonry (hollow concrete block), Masonry (solid)
Choose options
Anchor size - D
- M8
- M10
- M12
Anchor length - L
- 45 mm
- 80 mm
Material composition
- Steel, zinc-plated
Head configuration
- Inner thread
Pack size
- 10 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 53.10 ILS
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Environmental conditions
Dry indoor
Base materials
Masonry (hollow), Masonry (hollow concrete block), Masonry (solid)
PROFIS Software
No
Approvals / Test reports
ETA, ICC-ES report (masonry)
Cleaning procedures
Manual Cleaning
Type of fixing
Pre-fastening
Documents
Features & Applications
Features
- Installation flush with the surface
- Reuse of the fastening point
Applications

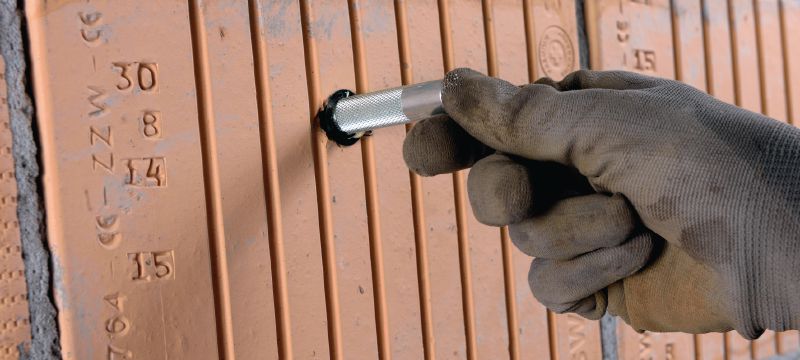

- Suitable for masonry applications with the relevant Hilti HIT injectable adhesive mortar
- For hollow masonry applications in combination with HIT-SC sleeves

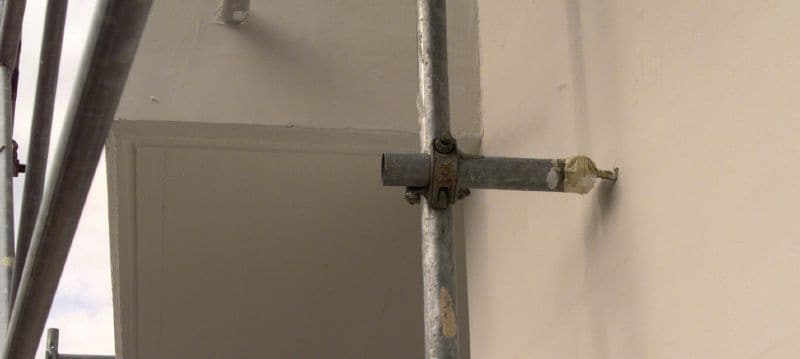

- For applications such as sun blinds, where performance is important and a neat finish is required
For approval or certificate information, please see individual items.
