MFT-MF M
זוית חיבור MFT-MF 150 M 11 #2029650

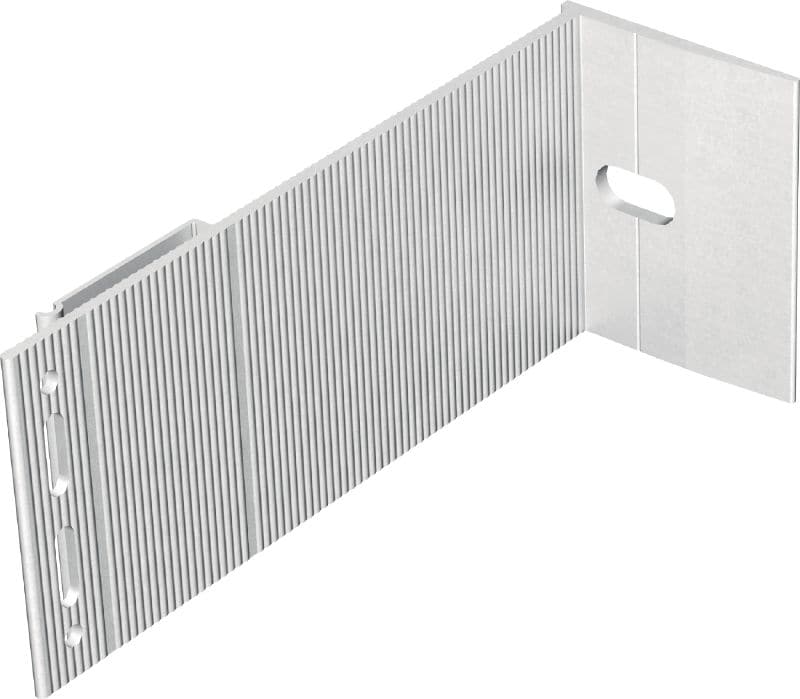

Bracket
- Length: 150 mm
- Hole diameter - D: 11 mm
- Material composition: EN AW-6063 T66
Choose options
Length
- 150 mm
Hole diameter - D
- 11 mm
Pack size
- 50 pc
Quantity
Pack
Total Pieces
50
Discounted net
2,354.00 ILS
47.08 ILS / 1 each
Technical Data
Length
150 mm
Hole diameter - D
11 mm
Material composition
EN AW-6063 T66
Width
62 mm
Height
80 mm
Features & Applications
Features
- Bracket with round and elongated holes for fixed and sliding points with max. 40 mm adjustability
- Simple installation
- Clamping spring facilitates adjustment of the support profile
- Hole diameter 6.5 mm for DX fastening and screws for concrete, steel and wood
- Hole diameters 11 and 15 mm for use of anchors on concrete and masonry
Applications

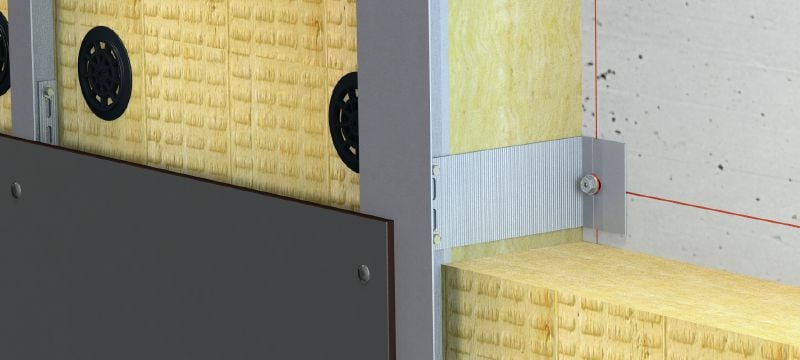

- Suitable for all facade cladding
- For installing vertical support profiles
Related Products
Self-drilling screw (A2 stainless steel) without washer for aluminum façade fastenings (up to 4 mm)
Pre-assembled plastic anchor for concrete and masonry with screw (carbon steel, hex head)

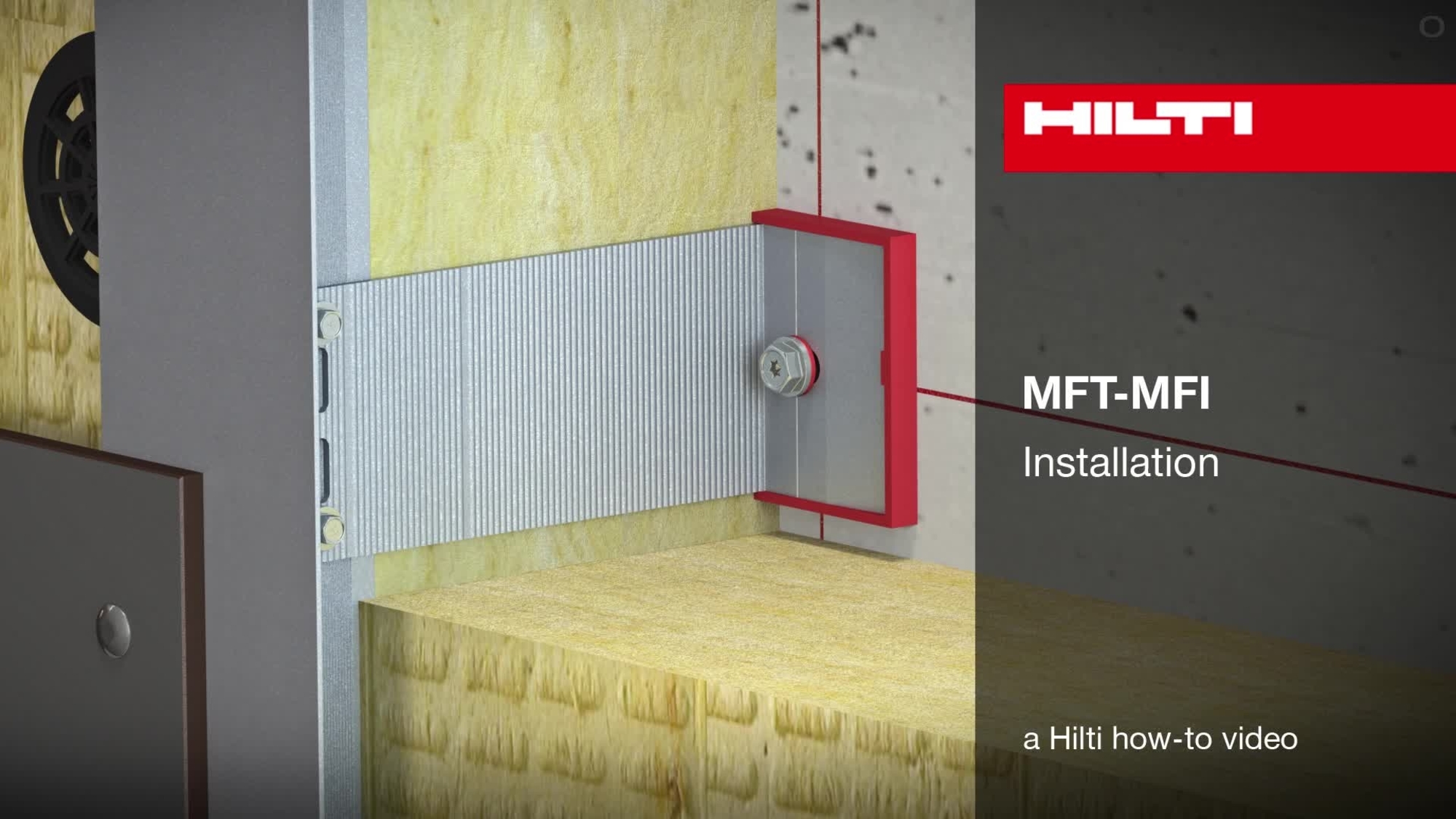

Product Videos
