HSS Co Drill bit set

Configurator
Technical Data
Features & Applications
Related Products
HSS_cobalt_twist_drill_bit_set_with_19_pcs_(Step_0.5_mm,_1-10_mm)

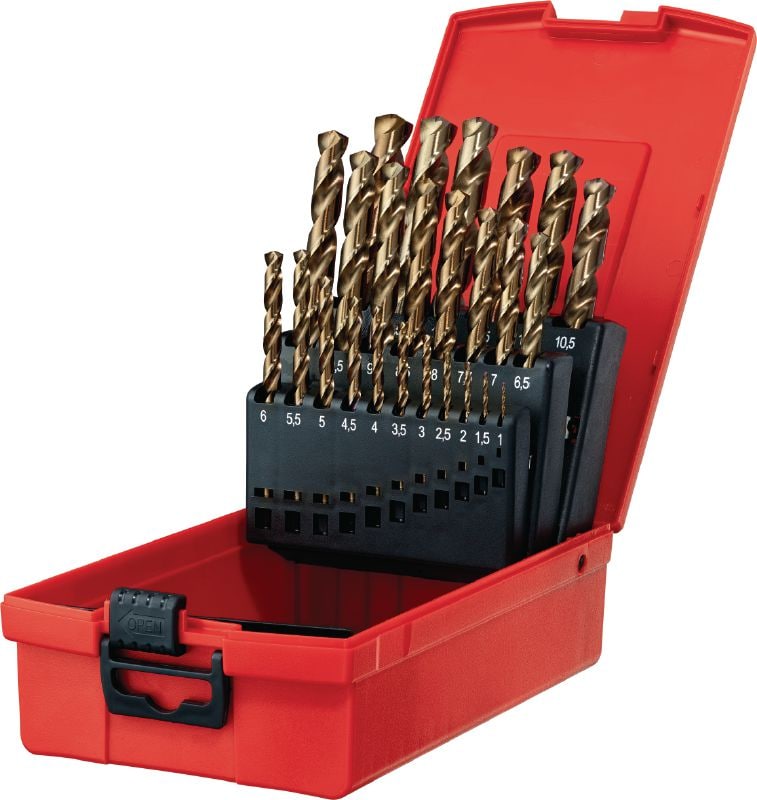

HSS cobalt twist drill bit set with 25 pcs (Step 0.5 mm, 1-13 mm)

Set of ultimate HSS cobalt drill bits for drilling small holes into steel and stainless steel ≤1100 N/mm², compliant with DIN 338 / 340

  • Product Class: Ultimate
  • Connection end: Smooth shank
  • DIN: DIN 338
ultimate

Choose options

Content set
  • 1x Twist drill bit HSS Co 1-13mm kit
  • 1x Twist drill bit HSS Co 1-10mm kit
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 562.50 ILS

Technical Data

Product Class
Ultimate
Connection end
Smooth shank
DIN
DIN 338
Base material
Metal, Stainless steel, Medium alloyed steel

Features & Applications

Features

  • Precision-ground HSS-Co drill bits with 5% cobalt content
  • Specially designed tip with split point – for precise self-centering, fast start and less walking on surface
  • 135° degree tip angle – the best choice for higher cutting speed with less heat when drilling in tougher base materials
  • Longer-lasting drill bits in tougher applications – higher robustness and lifespan thanks to the cobalt content
  • Easier chip removal and optimized heat reduction – spiral flute for better lubricant distribution to the drill bit tip

Applications

  • Drilling holes into high alloyed and unalloyed steel and heat-treated steel ≤1100 N/mm²
  • Drilling into stainless steel, brass, copper and plastics
  • Drilling into other tough metal (e.g. cast iron, titanium)
  • Optimized performance reached when applying the right speed and cutting oil

For approval or certificate information, please see individual items.
