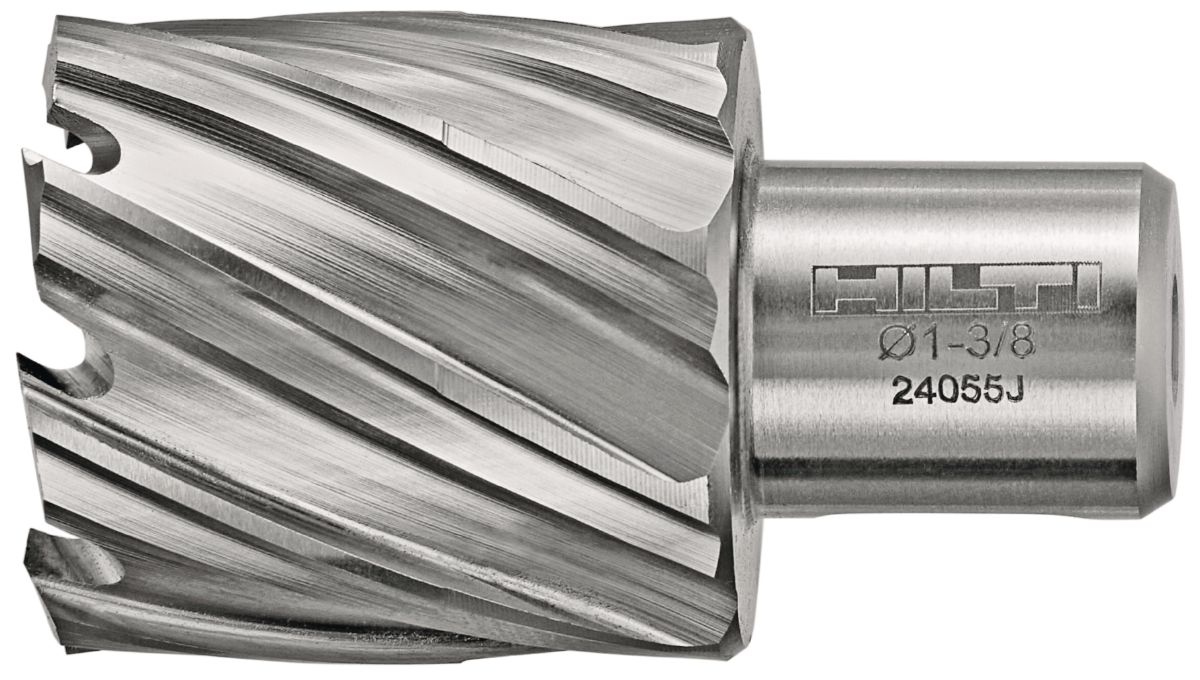

HSS Annular cutter

HSS Annular cutter with a quick-release 3/4 Weldon shank, for drilling 12-35mm diameter holes with a drilling depth of up to 25mm in steel

premium

Diameter

Length

Working length

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 252.00 ILS

Technical Data

Product Class

Premium

Connection end

3/4" Weldon

Quick-release shank – enables faster and easier chuck changes with no tools required to attach and release the annular cutter
Longer lasting – made from durable high speed steel with a cutting teeth hardness of 64 HRC (800 HV)
Smoother drilling – apply the right drilling speed and oil for optimal performance

Core drilling with the SF 30M-22 mag drill up to a diameter of 35 mm and a cutting depth of up to 25mm
Drilling holes into high alloyed and unalloyed steel and heat-treated steel ≤1100 N/mm²
Note: lubrication is required when drilling with HSS annular cutters
Note: pilot pin is required when drilling with annular cutters (sold separately)

For approval or certificate information, please see individual items.
