Nuron

SM 60-22 Cordless miter saw

Cordl. miter saw SM 60-22 box #2390412

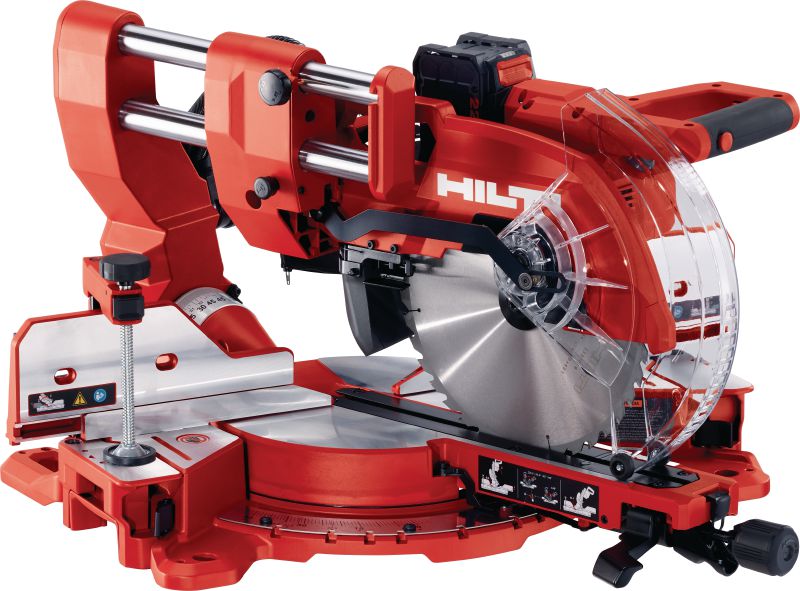

Still life picture of the miter saw SM 60-22 with dust bag and circular saw blade.

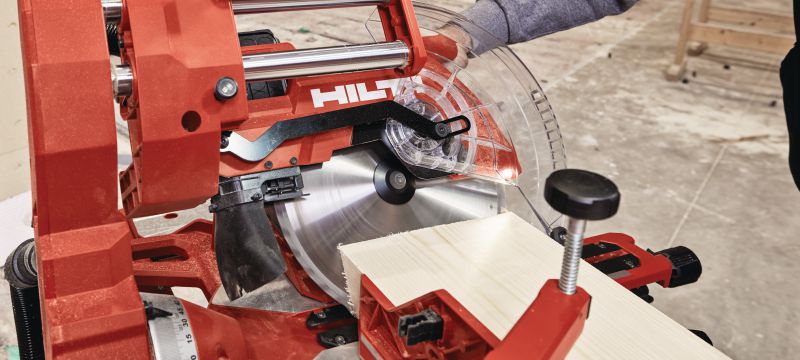

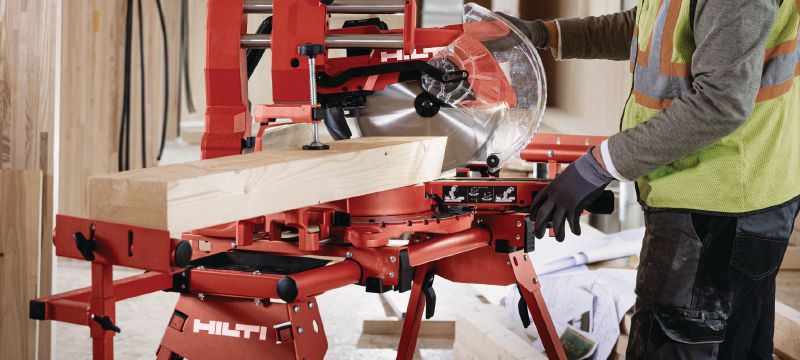

Application picture of the cordless mitter saw SM 60-22. Wood cutting application.

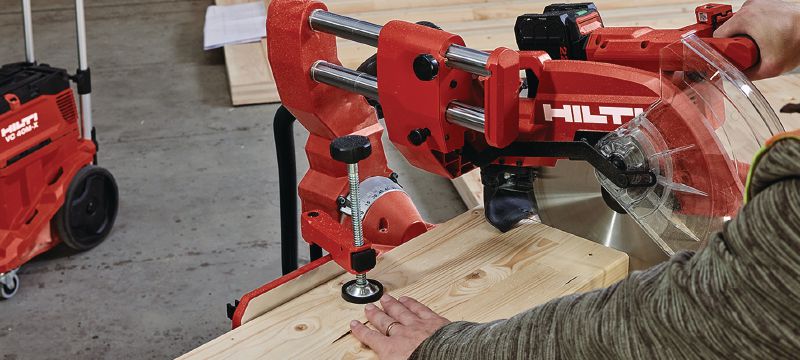

Cropped image of application picture of the cordless miter saw SM 60-22 attached to the cordless vacuum cleaner VC 4X-22. Wood cutting application. Application without gloves.

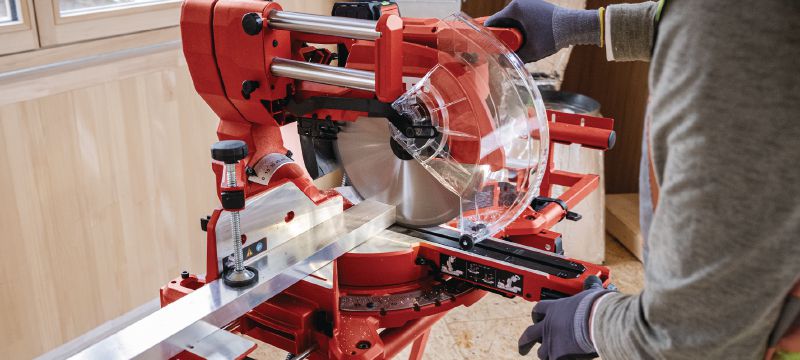

Application picture of the cordless mitter saw SM 60-22. Cutting aluminum.

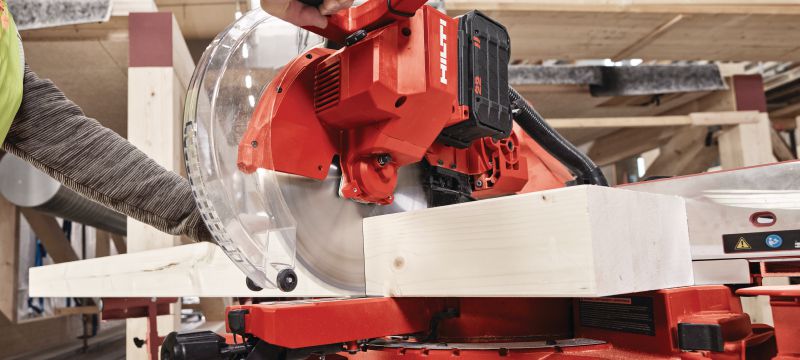

Application picture of the cordless mitter saw SM 60-22. Wood cutting application. Compound cut.
Cropped image of application picture of the cordless miter saw SM 60-22 attached to the cordless vacuum cleaner VC 4X-22. Wood cutting application. Application without gloves.

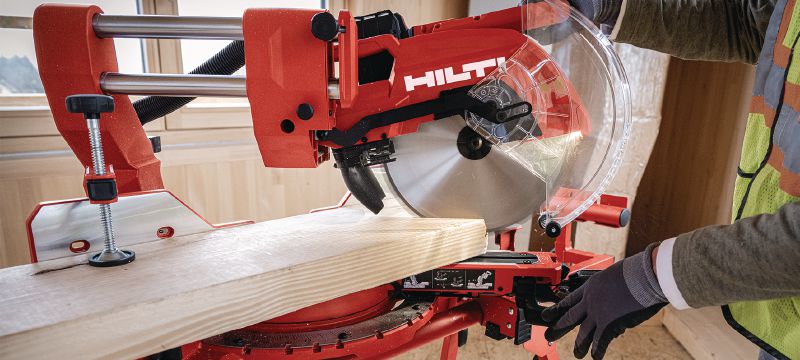

Cropped application picture of a worker is using a SM 60-22 on an interior wood jobsite to cut a wood plank disclaimer: this picture is without glove due to German rotative tool law
Cropped application picture of a worker is using a SM 60-22 on an interior wood jobsite to cut a wood plank disclaimer: this picture is without glove due to German rotative tool law

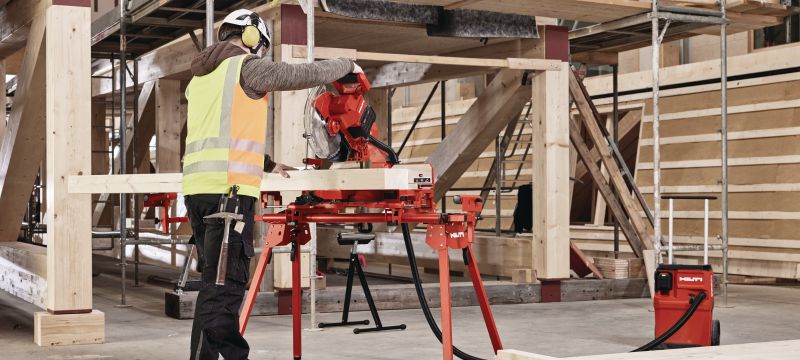

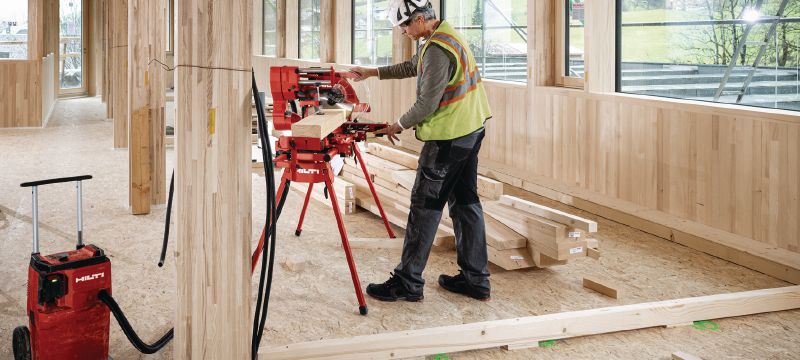

A man worker is using the SM 60-22 with a VC 4MX-22 & T15 on an interior wood jobsite to cut a wood plank disclaimer: this picture is without glove due to German rotative tool law
Still life picture of the miter saw SM 60-22 with dust bag and circular saw blade.
Application picture of the cordless mitter saw SM 60-22. Wood cutting application.
Cropped image of application picture of the cordless miter saw SM 60-22 attached to the cordless vacuum cleaner VC 4X-22. Wood cutting application. Application without gloves.
Application picture of the cordless mitter saw SM 60-22. Cutting aluminum.
Application picture of the cordless mitter saw SM 60-22. Wood cutting application. Compound cut.
Cropped image of application picture of the cordless miter saw SM 60-22 attached to the cordless vacuum cleaner VC 4X-22. Wood cutting application. Application without gloves.
Cropped application picture of a worker is using a SM 60-22 on an interior wood jobsite to cut a wood plank disclaimer: this picture is without glove due to German rotative tool law
Cropped application picture of a worker is using a SM 60-22 on an interior wood jobsite to cut a wood plank disclaimer: this picture is without glove due to German rotative tool law
A man worker is using the SM 60-22 with a VC 4MX-22 & T15 on an interior wood jobsite to cut a wood plank disclaimer: this picture is without glove due to German rotative tool law

Dual-bevel sliding compound miter saw with a cross cut capacity up to 100x355mm│4”x 13-3/4" (Nuron battery platform)

  • Blade diameter: 305 mm
  • Base material: Wood, Plastic
  • No load RPM: gear 1: 4300 rpm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

7,220.00 ILS

7,220.00 ILS / 1 each

Technical Data

Blade diameter
305 mm
Base material
Wood, Plastic
No load RPM
gear 1: 4300 rpm
Guiding rail compatibility
No
Max. bevel angle
48 °
Max. miter angle
60 °
A-weighted emission sound pressure level
101 dB (A) 1
Triaxial vibration value for sawing into wood (ah,W)
2.5 m/s² 2
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

  • Precision cutting – miter (≤ 60° right ≤ 52° left) and bevel (up to 48°) adjusts in both directions for smooth compound cuts and accurate straight cuts throughout the saw’s lifetime
  • Variable speed control – 6 speeds (2000-4300 RPM) allow you to match blade speed with material to optimize cutting quality, performance and battery life when paired with our blades
  • Ergonomic and efficient – forward-sliding rail saves space while front-facing bevel adjustments help streamline your workflow
  • Integrated LED shadow line – line up your workpiece for faster and more accurate cuts, even in low-light conditions
  • Safer and cleaner – fast blade brake and effective dust removable for a safer and cleaner working environment

Applications

  • Commercial wood framing, especially precise, serial cuts in beams, structural elements and temporary supports
  • Clean cuts for concrete formwork such as tilt walls and architectural concrete
  • Bevel and miter cuts for case work, mill work and interior woodwork such as cabinets, molding and trim
  • Cutting aluminum extrusions on-site for building envelope applications
  • Straight cuts in PVC, ABS, and occasional cuts in aluminum and conduit for flush connections in plumbing and electrical installations
