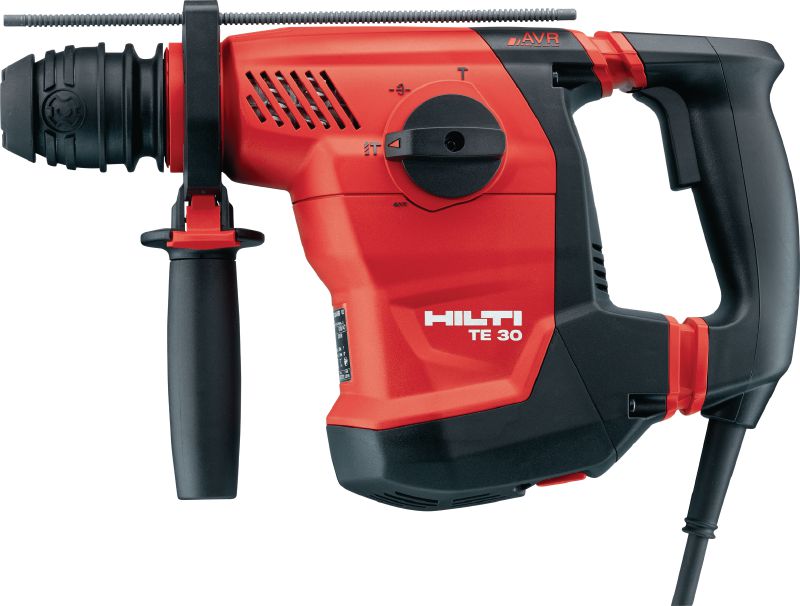

TE 30-AVR Rotary hammer

Combihammer TE 30-AVR 220V case #2160049

Configurator
Technical Data
Documents
Features & Applications
Related Products
TE_30-AVR_Generation_2

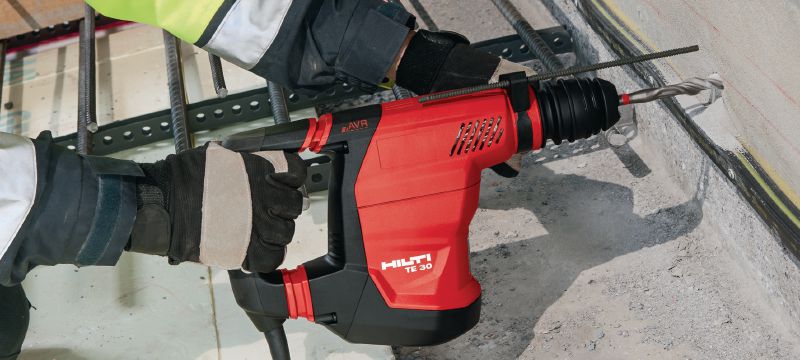

TE 30-AVR Generation 2, Rebar holes with TE-CX

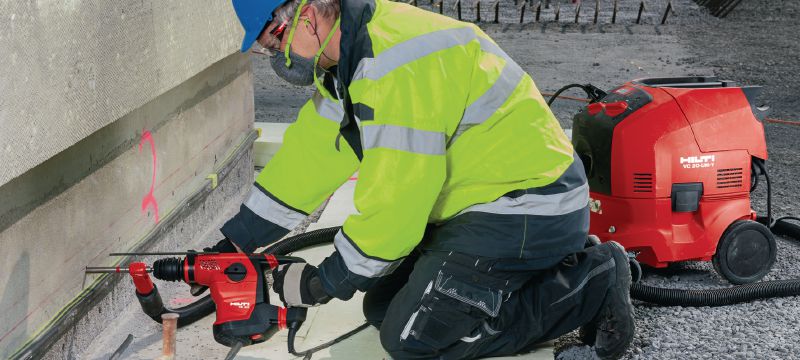

TE 30-AVR Generation 2, Rebar holes with TE-CD and VC20

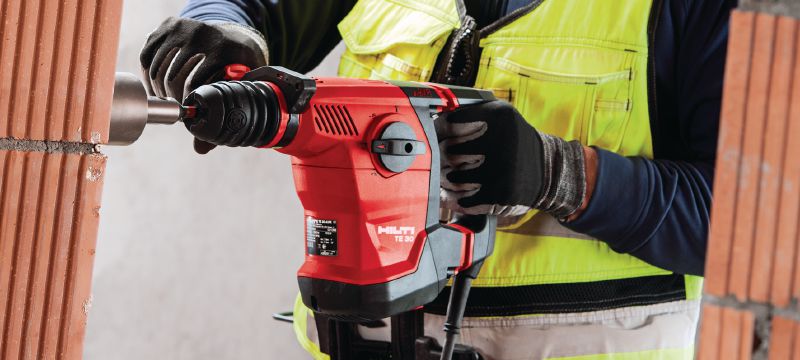

TE 30-AVR Generation 2, Coring with TE-C BK

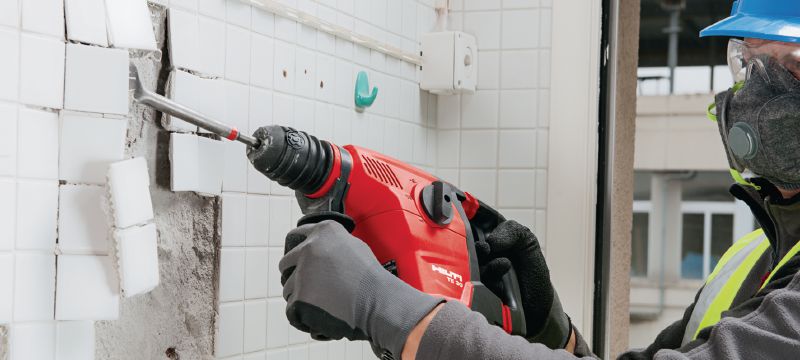

TE 30-AVR Generation 2, Tile removal with wide-flat chisel, TE-CP SPM

Powerful SDS Plus (TE-C) rotary hammer for heavy-duty concrete drilling and corrective chiseling, with Active Vibration Reduction (AVR)

  • Weight according to EPTA-Procedure 01/2003 without battery: 4.2 kg
  • Optimum Hammer drilling range: 10 - 20 mm
  • Single impact energy: 3.6 J

Customers also searched for drilling, combi hammer or demolition.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
5,344.00 ILS
5,344.00 ILS / 1 each

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
4.2 kg
Optimum Hammer drilling range
10 - 20 mm
Single impact energy
3.6 J
Working mode
Hammer drilling, Drilling, Chisel setting, Chiseling
Hammer drilling diameter range
5 - 28 mm
Hammer drilling RPM
1100 rpm
Full hammering frequency
4500 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiseling, Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
9.7 m/s² 1
Triaxial vibration for chiseling into concrete
8.8 m/s² 2
A-weighted emission sound pressure level
95 dB (A) 3
Rated input power
1010 W
Dimensions (LxWxH)
371 x 113 x 225 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)

Documents

Material safety datasheet
Operating Instruction
pdf Material safety datasheet Hilti Grease (EN) [ 765.3 KB ]
pdf Material safety datasheet Hilti Grease (HE) [ 910.2 KB ]

Features & Applications

Features

  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Quick-change chucks – changing bits is fast and tool-free
  • Extra-long lifetime thanks to a highly robust chuck, motor components and casing

Applications

  • Drilling anchor, rebar and through holes in concrete and masonry – possible diameter range 4-28 mm, recommended diameter range 10-20 mm
  • Chiselling in brick and block, corrective chiseling and surface finishing on concrete
  • Drilling in wood and metal using the optional quick-release chuck and drill bits with smooth shank up to 13 mm diameter
  • Driving anchor screws and concrete screw anchors
