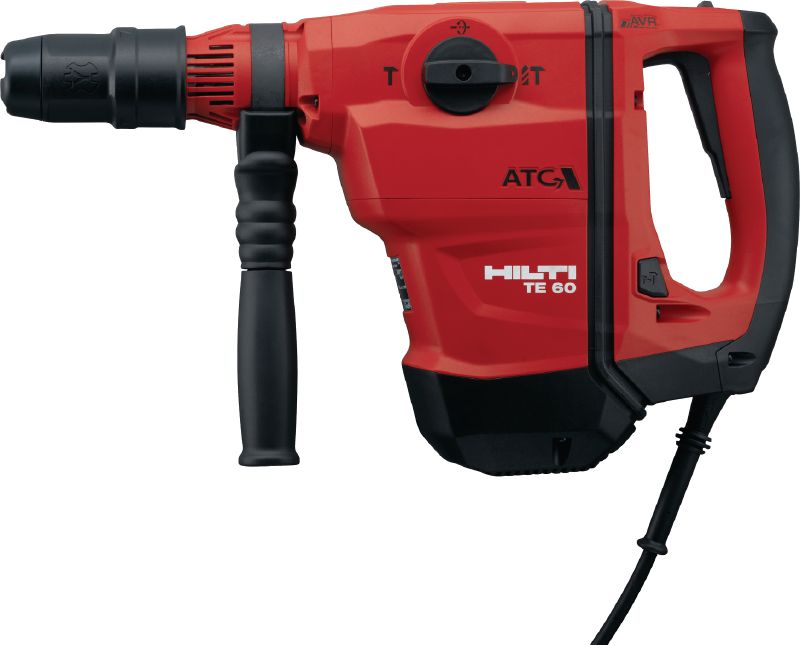

TE 60-ATC-AVR Rotary hammer
Versatile and powerful SDS Max (TE-Y) rotary hammer for concrete drilling and chiselling, with Active Vibration Reduction (AVR) and Active Torque Control (ATC)
- Weight according to EPTA-Procedure 01/2003 without battery: 7.8 kg
- Weight class: 6 kg
- Single impact energy: 7.8 J
Technical Data
Weight according to EPTA-Procedure 01/2003 without battery
7.8 kg
Weight class
6 kg
Single impact energy
7.8 J
Hammer drilling diameter range
12 - 100 mm
Optimum Hammer drilling range
18 - 40 mm
Hammer drilling RPM
340 rpm
Full hammering frequency
3300 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiseling, Depth gauge, Power reduction
Triaxial vibration value for hammer drilling into concrete (ah,HD)
7.2 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D, TE DRS-BK
Triaxial vibration for chiseling into concrete
6.2 m/s² 2
Rated input power
1350 W
Dimensions (LxWxH)
493 x 115 x 293 mm
A-weighted emission sound power level
111 dB (A) 3
A-weighted emission sound pressure level
103 dB (A) 4
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the drill bit jams – helping to reduce a common safety hazard
- Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
- High versatility for a wide range of drilling and chiselling applications
- Optional DRS-Y dust removal system collects up to 95% of dust
- Detachable supply cord for quicker and easier replacement of damaged/broken cords on the jobsite
Applications

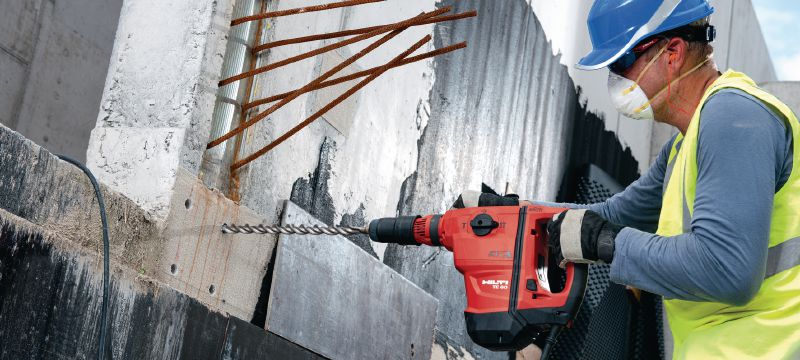

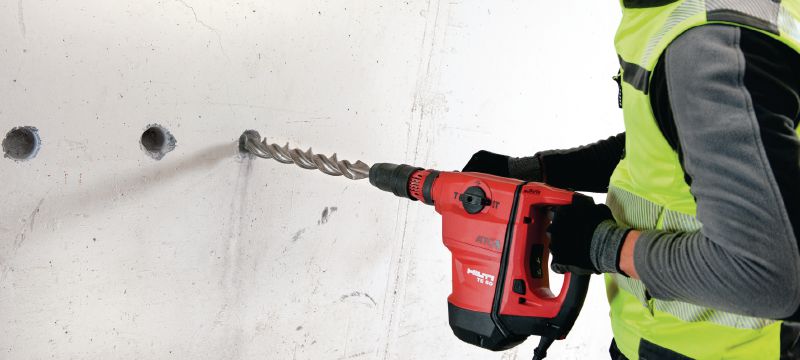

- Drilling anchor and through-holes in concrete and masonry (recommended diameter range 18-80 mm)

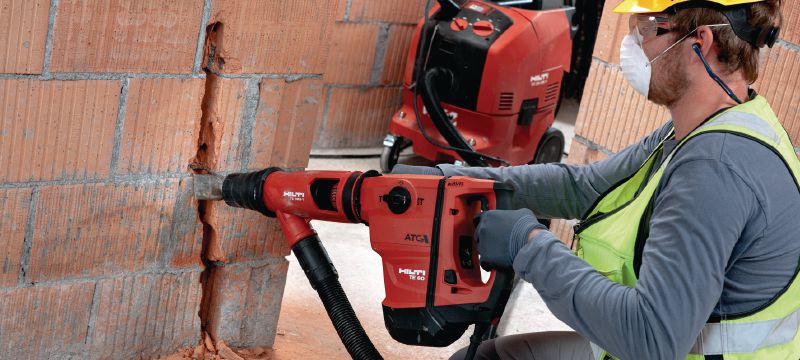

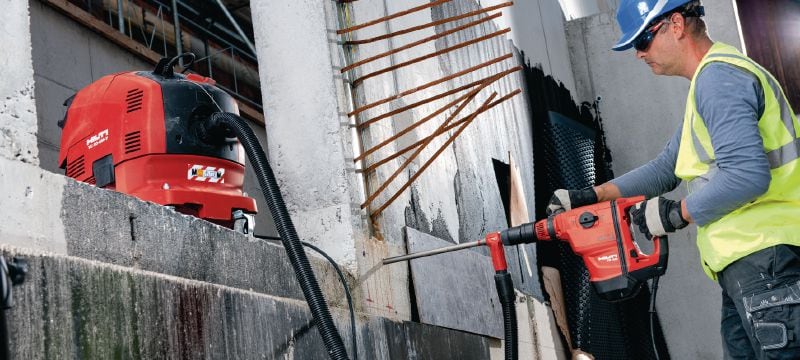

- Medium-duty demolition work

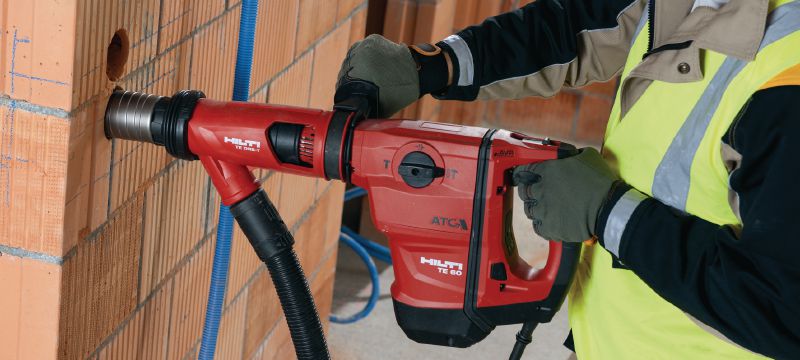

- Coring in masonry and concrete with TE-Y BK core bits up to 122 mm diameter
- Coring in masonry with optional DD-TE-Y-DR adapter and DD-Y PCM core bits up to 122 mm diameter
- Drilling anchor and through-holes in concrete and masonry (recommended diameter range 5/8" - 3-1/8")
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- After no-cost period repair costs are capped
- Smooth on-site pick-up and delivery, thanks to our strong partnerships with trusted carriers
Fleet Management
- Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
- High-performing tools and latest technology help to increase jobsite productivity.
LifeTime Services
- After no-cost period repair costs are capped for as long as we service the tool
- Materials and workmanship warranty over the entire life of the tool
