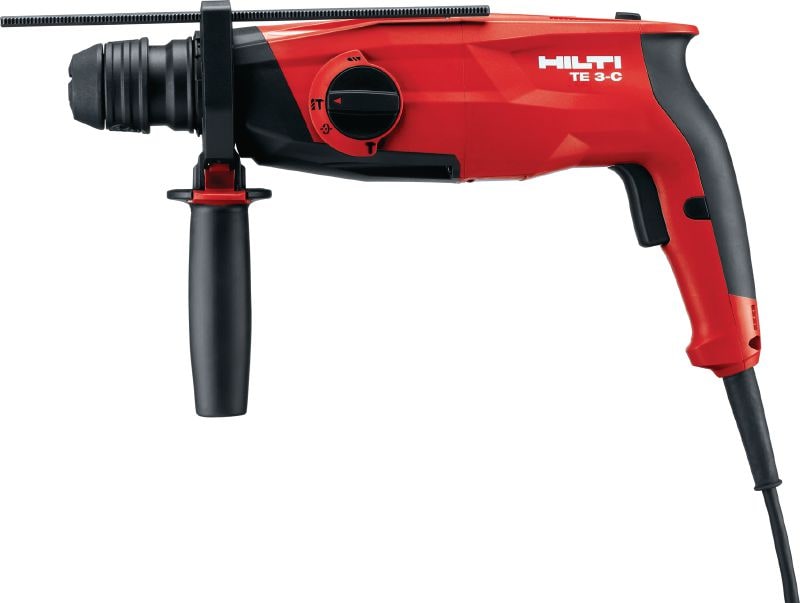

Powerful pistol-grip, triple-mode SDS Plus (TE-C) rotary hammer with chipping function

  • Weight according to EPTA-Procedure 01/2003 without battery: 3 kg
  • Optimum Hammer drilling range: 6 - 16 mm
  • Single impact energy: 2.5 J

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
3 kg
Optimum Hammer drilling range
6 - 16 mm
Single impact energy
2.5 J
Working mode
Hammer drilling, Chiseling, Drilling, Chisel setting
Hammer drilling diameter range
4 - 28 mm
Hammer drilling RPM
1070 rpm
Full hammering frequency
5160 impacts/minute
Functionality
Reverse mode, Depth gauge, Chipping
Triaxial vibration value for hammer drilling into concrete (ah,HD)
15.4 m/s² 1
Triaxial vibration for chiseling into concrete
11.4 m/s² 2
A-weighted emission sound pressure level
95 dB (A) 3
Dimensions (LxWxH)
377 x 88 x 204 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

  • Triple-mode SDS Plus (TE-C) rotary hammer – for hammer drilling, rotary-only drilling and chiseling
  • 850W motor provides high performance and overload protection
  • Quick-change TE-C Click chuck and user-friendly selector switch for high working convenience
  • 360° side handle with quick-set depth gauge – easily adjustable for a firm grip in any position, even in tight spaces
  • Electronic switch for precise hole-starting

Applications

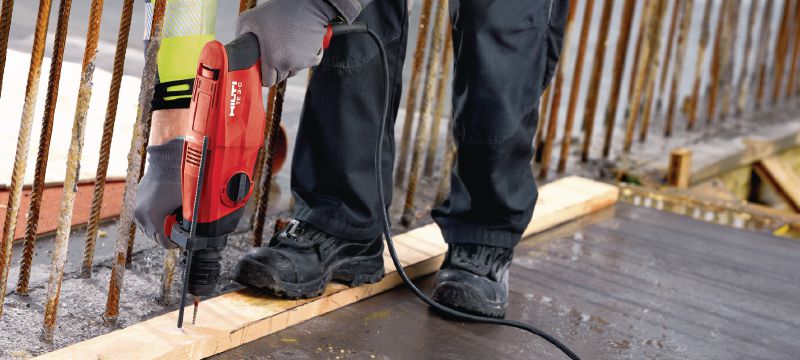

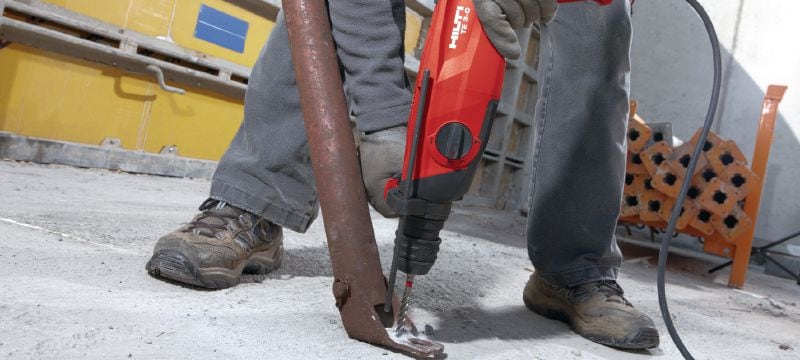

  • Drilling and hammer drilling in concrete and masonry

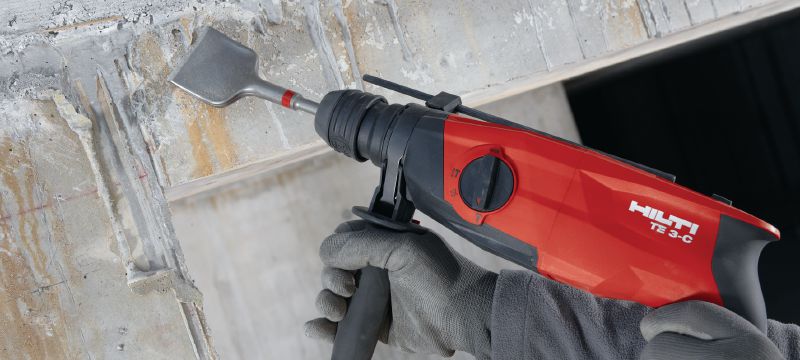

  • Corrective chiseling and light channel chasing in concrete and masonry
  • Occasional drilling in wood and steel using the optional smooth-shank chuck adapter
  • Cutting socket recesses in masonry
  • Driving screws using optional bit holders
