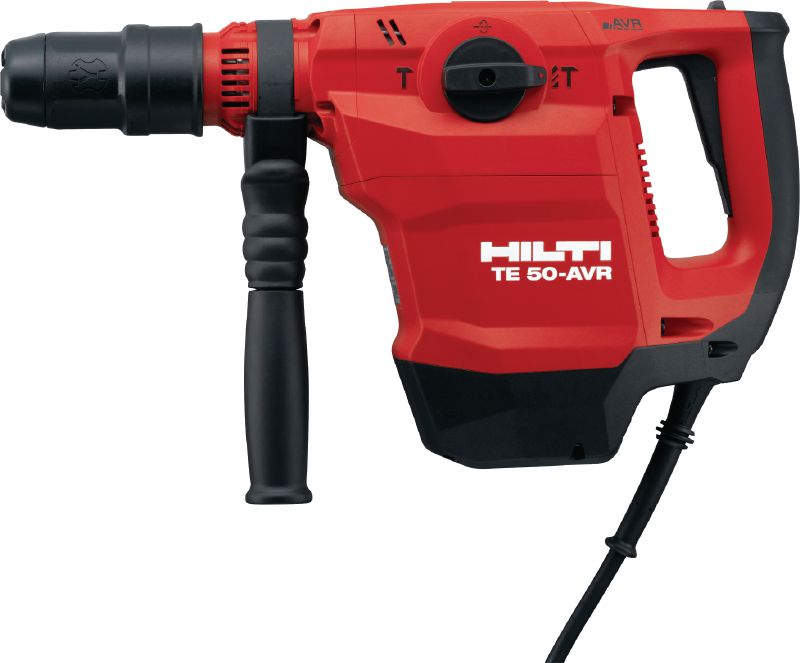

TE 50-AVR Rotary hammer
Our most compact SDS Max (TE-Y) rotary hammer for lightweight comfort and control while drilling or chiseling in concrete, stone, and masonry
- Weight according to EPTA-Procedure 01/2003 without battery: 6.1 kg
- Weight class: 5 kg
- Single impact energy: 6 J
Technical Data
Weight according to EPTA-Procedure 01/2003 without battery
6.1 kg
Weight class
5 kg
Single impact energy
6 J
Hammer drilling diameter range
12 - 82 mm
Optimum Hammer drilling range
16 - 35 mm
Hammer drilling RPM
360 rpm
Full hammering frequency
3510 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiseling, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
8.8 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D, TE DRS-BK
Triaxial vibration for chiseling into concrete
7.1 m/s² 2
Rated input power
1100 W
Dimensions (LxWxH)
449 x 115 x 272 mm
A-weighted emission sound power level
108 dB (A) 3
A-weighted emission sound pressure level
100 dB (A) 4
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- Exceptionally light and versatile SDS Max (TE-Y) rotary hammer
- Low contact pressure for high user comfort
- Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

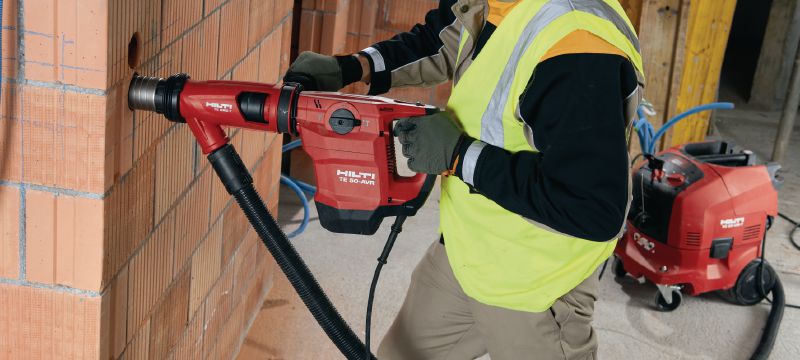

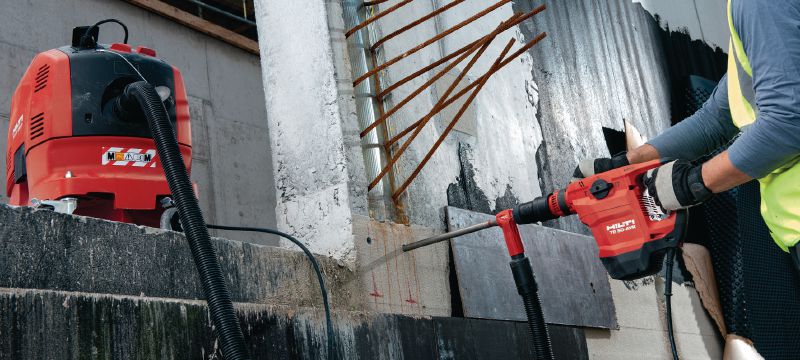

- Optional DRS-Y dust removal system collects up to 95% of dust
- Detachable supply cord for quicker and easier replacement of damaged/broken cords on the jobsite
Applications

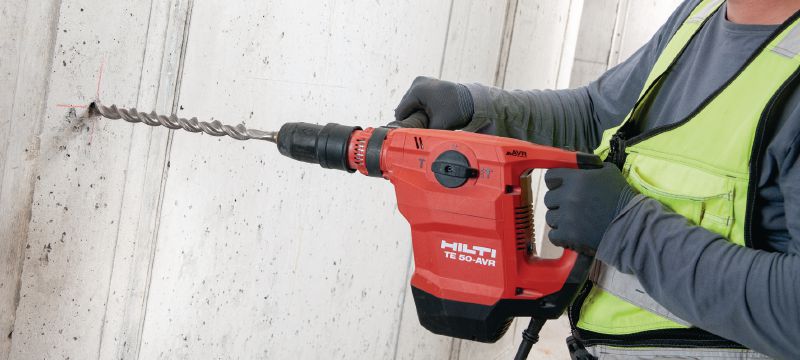

- Hammer drilling in concrete, masonry and natural stone (possible diameter range 12-55 mm, recommended diameter range 16-32 mm)

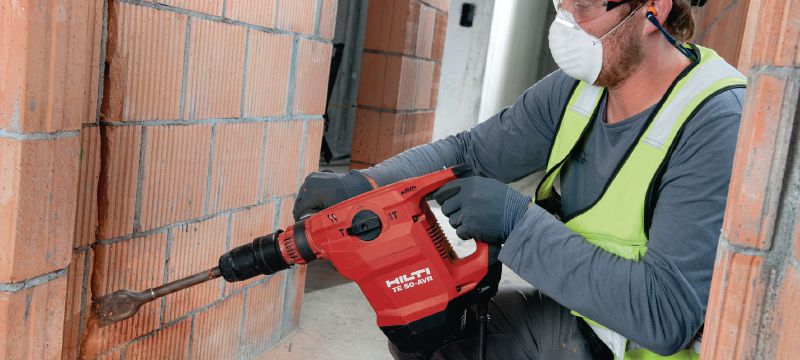

- Light to medium-duty chiselling in masonry and concrete
- Drilling penetrations mainly in masonry using percussion core bits (possible diameter range 45-150 mm, recommended diameter range up to 82 mm)
- Hammer drilling in concrete, masonry and natural stone (possible diameter range 1/2"- 2", recommended diameter range 5/8" - 1 1/4")
- Drilling penetrations mainly in masonry using percussion core bits (possible diameter range 1 3/4"- 5 15/16", recommended diameter range up to 3 1/4" )
