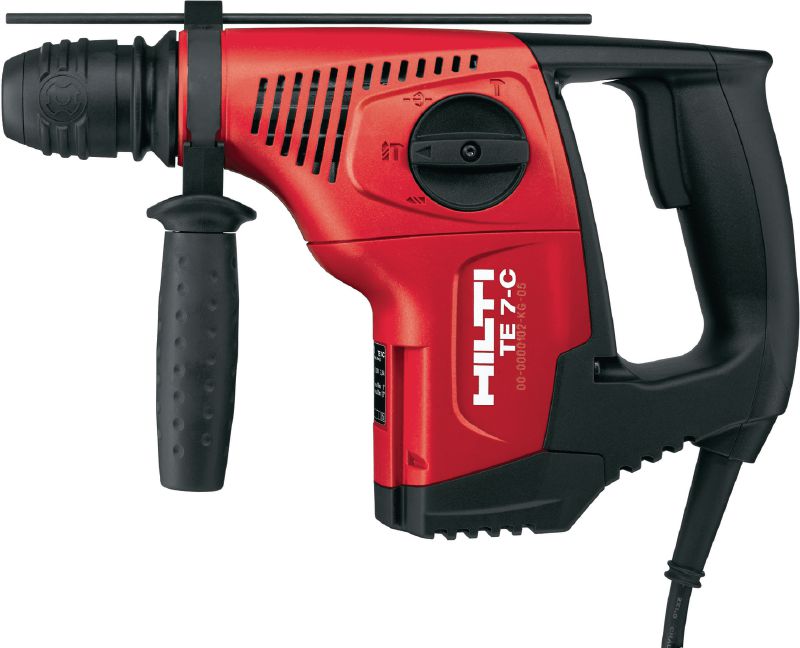

TE 7-C Rotary hammer
Powerful D-grip, triple-mode SDS Plus (TE-C) rotary hammer with chipping function
- Weight according to EPTA-Procedure 01/2003 without battery: 3.4 kg
- Optimum Hammer drilling range: 6 - 16 mm
- Single impact energy: 2.6
Technical Data
Weight according to EPTA-Procedure 01/2003 without battery
3.4 kg
Optimum Hammer drilling range
6 - 16 mm
Single impact energy
2.6
Working mode
Hammer drilling, Drilling, Chiseling, Chisel setting
Hammer drilling diameter range
4 - 28 mm
Hammer drilling RPM
740 rpm
Full hammering frequency
4020 impacts/minute
Functionality
Chipping, Integrated Dust Removal System (DRS), Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
17 m/s² 1
Triaxial vibration for chiseling into concrete
17 m/s² 2
A-weighted emission sound pressure level
90 dB (A) 3
Dimensions (LxWxH)
343 x 86 x 215 mm
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- Ergonomically designed D-grip for comfortable use over long periods
- Robustly built – engineered for maximum reliability and long life
- High drilling performance
- Virtually dustless drilling when used with the DRS-M dust removal system
- Quick-change TE-C Click chuck for versatility and ease of use
Applications

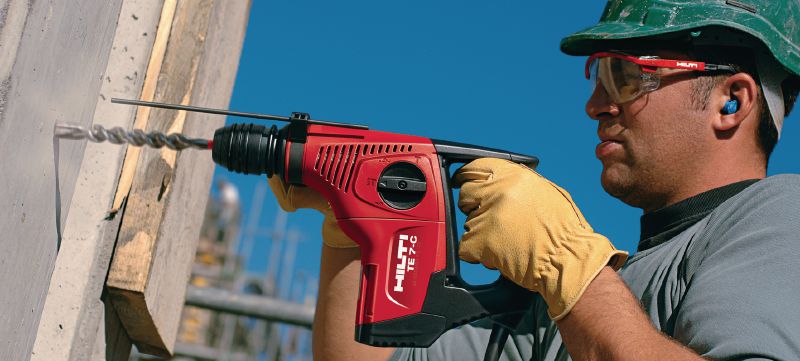

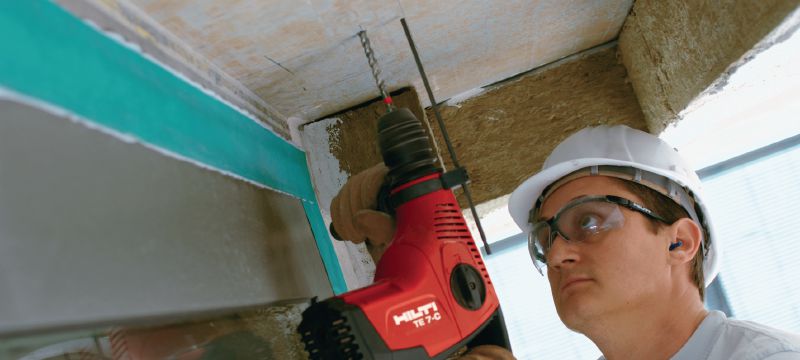

- Drilling and hammer drilling in concrete and masonry
- Corrective chiseling and small channel openings in concrete
- Occasional drilling in wood and steel with optional quick release chuck

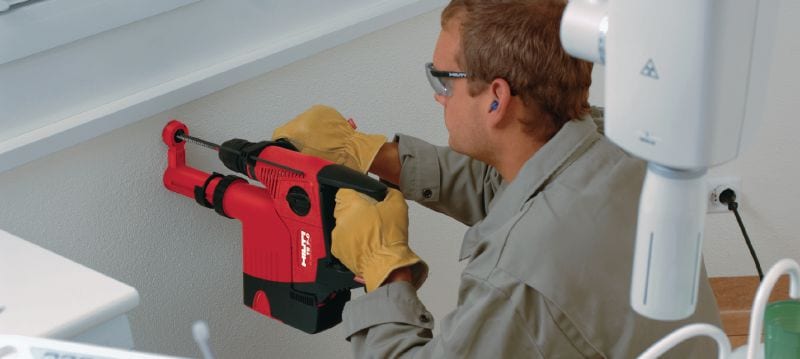

- Drilling in concrete in clean areas with integrated Dust Removal System (DRS-M)

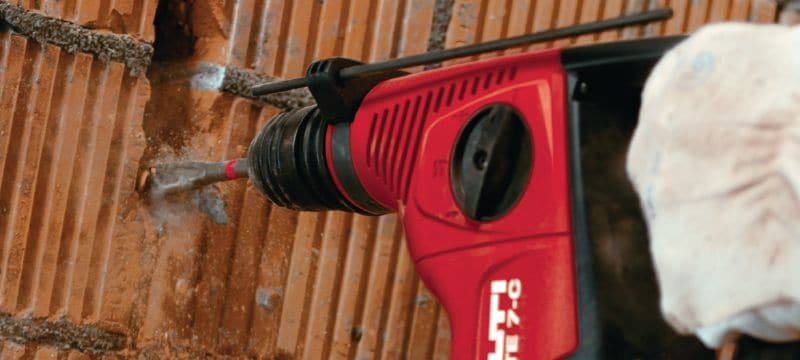

- Cutting socket recesses in masonry
For approval or certificate information, please see individual items.
