Nuron

TE 70-22 Cordless rotary hammer

Configurator
Technical Data
Documents
Features & Applications
Related Products

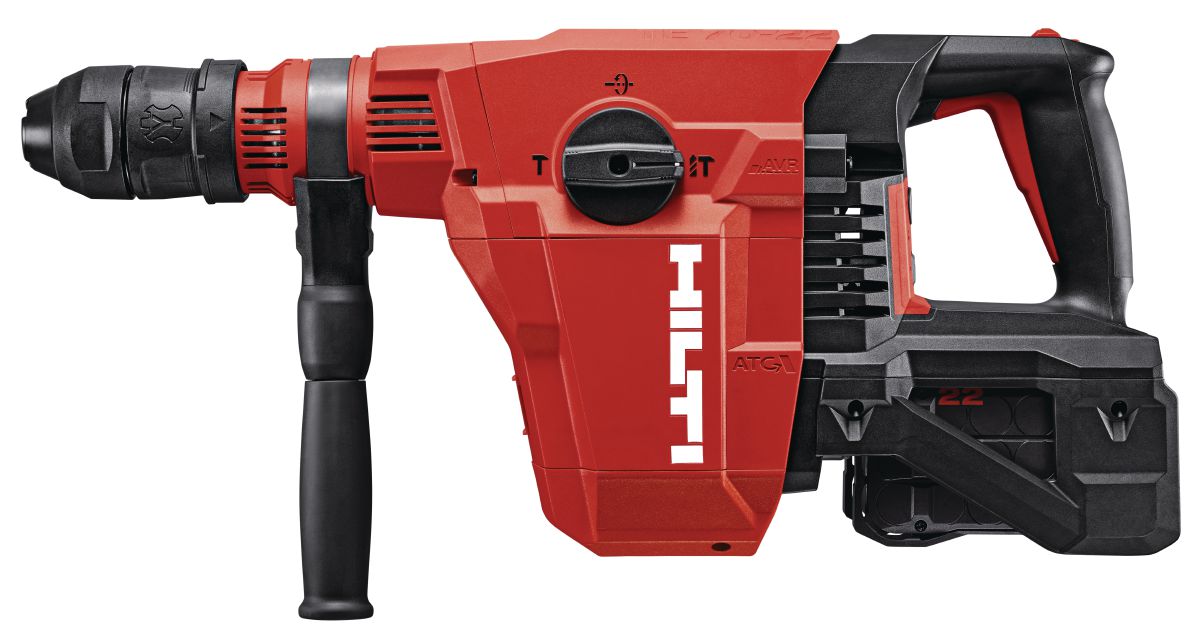

Still life image of TE 70-22(04) tool with B22/290 battery.
Cropped application picture of the rotary hammer TE 70-22 with the DRS system attached. Concrete chiseling application.
Cropped application picture of the rotary hammer TE 70-22 with the hollow drill bit TE-YD and the vacuum cleaner attached. Post-installed rebar application.
Cropped application picture of the rotary hammer TE 70-22 with the DRS system attached. Concrete chiseling application.
Cropped application picture of the rotary hammer TE 70-22. Concrete chiseling application.
Cropped application picture of the rotary hammer TE 70-22 with the hollow drill bit TE-YD and the vacuum cleaner attached. Post-installed rebar application.

Very powerful and cordless SDS Max (TE-Y) rotary hammer for heavy-duty drilling and chiseling in concrete (Nuron battery platform)

  • Weight according to EPTA-Procedure 01/2003 without battery: 10.7 kg
  • Optimum Hammer drilling range: 12 - 52 mm
  • Hammer drilling diameter range: 12 - 52 mm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 11,000.00 ILS

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
10.7 kg
Optimum Hammer drilling range
12 - 52 mm
Hammer drilling diameter range
12 - 52 mm
Single impact energy
14.5 J
Hammer drilling RPM
246 rpm
Full hammering frequency
2820 impacts/minute
Functionality
Active Vibration Reduction (AVR)
Triaxial vibration value for hammer drilling into concrete (ah,HD)
8.6 m/s² 1
Triaxial vibration for chiseling into concrete
7.8 m/s² 2
Dust removal system available
TE DRS-Y, TE DRS-D, TE DRS-BK
A-weighted emission sound pressure level
99 dB (A) 3
A-weighted emission sound power level
107 dB (A) 4
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)
  4. According to the applicable product standard (see Operating Instruction for more details)

Documents

Material safety datasheet
Operating Instruction
pdf Material safety datasheet Hilti Grease (EN) [ 765.3 KB ]
pdf Material safety datasheet Hilti Grease (HE) [ 910.2 KB ]
pdf Material safety datasheet LI-ION-BATTERIES >100Wh (HE) [ 353 KB ]
pdf Material safety datasheet LI-ION-BATTERIES >100Wh (EN) [ 230.2 KB ]

Features & Applications

Features

  • Optimized performance – our most powerful cordless SDS Max rotary hammer brings more drilling power with less weight, helping you work faster while staying mobile
  • More work per charge – the brushless motor and more efficient 22V Nuron batteries help you get more battery run time
  • Durable and longer lasting – the optimized torque transfer, dust sealing, and drop-resistant battery garage combine for reduced wear and increased tool lifetimes
  • Upgraded safety features – includes Active Torque Control (ATC) and an On/Off switch to better protect you from uncontrolled spinning, and Dust Removal System (DRS) compatibility for virtually dust-free drilling
  • Longer trigger time – Active Vibration Reduction (AVR) helps shield from vibration so you can work with fewer interruptions

Applications

  • Heavy-duty chiseling and concrete wall demolition
  • Drilling in reinforced concrete (recommended drill bits 20mm to 55mm in diameter)
  • Hammer drilling in masonry (recommended drill bits 12mm to 150mm in diameter)
  • Drilling holes for heavy-duty anchors (recommended drill bits 20mm to 40mm in diameter)
  • Breaching and demolition with pointed and flat chisels

For approval or certificate information, please see individual items.
