SIW 9-A22 3/4" Cordless impact wrench

SIW 9 A22 CASE(RU) #2107759

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services

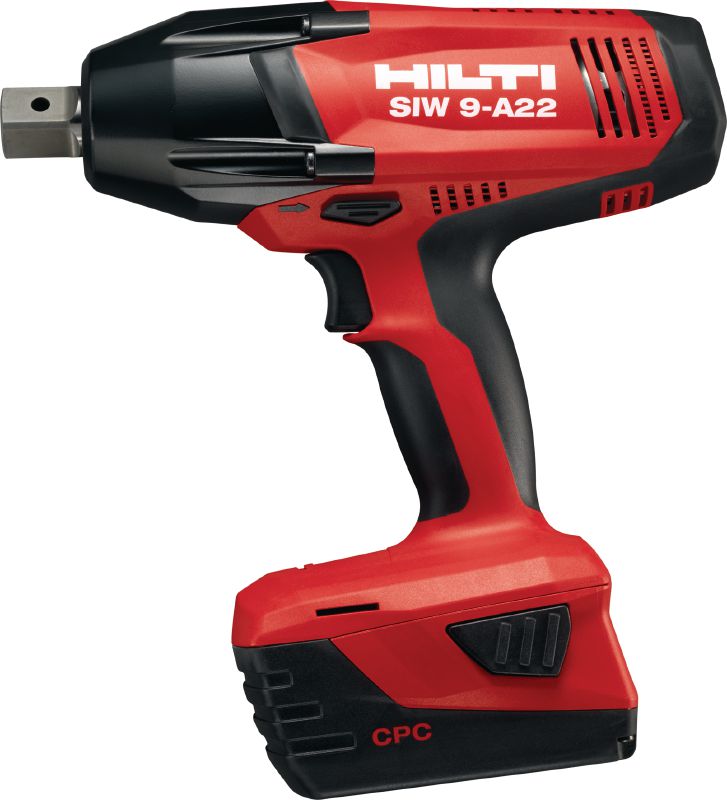

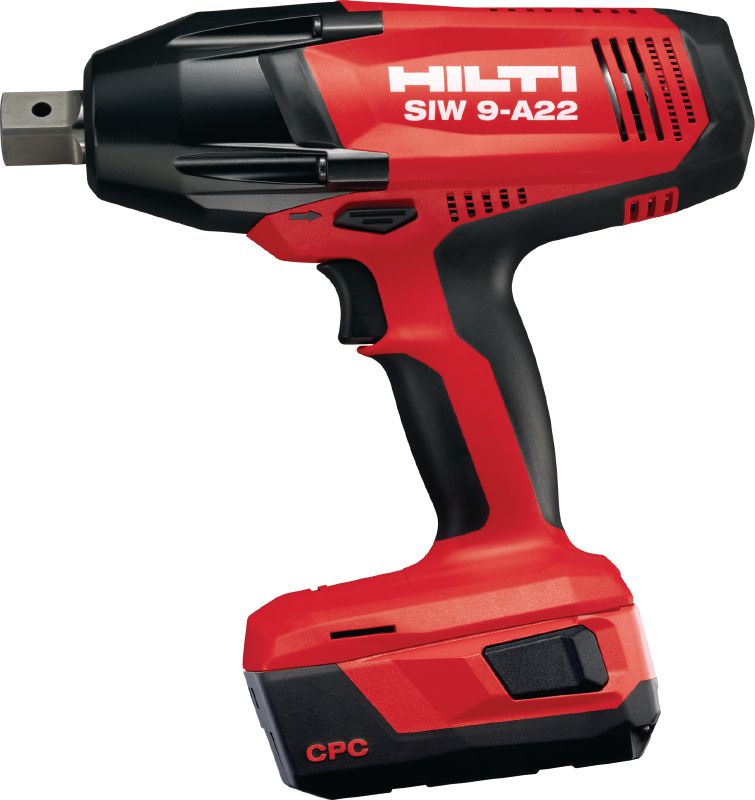

SIW 9-A22 3/4" ultimate class cordless impact wrench

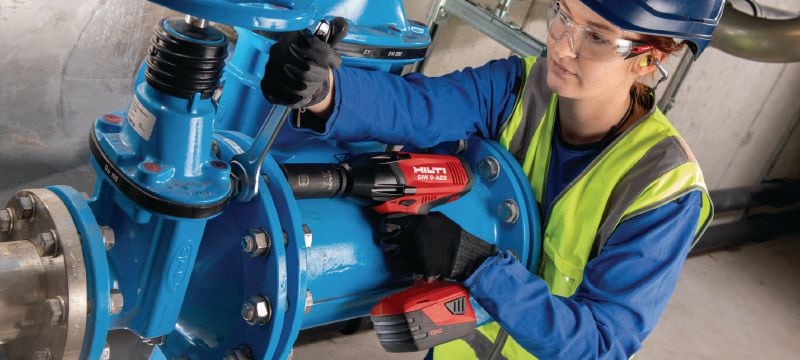

Bolting pipe flange with SIW 9-A22

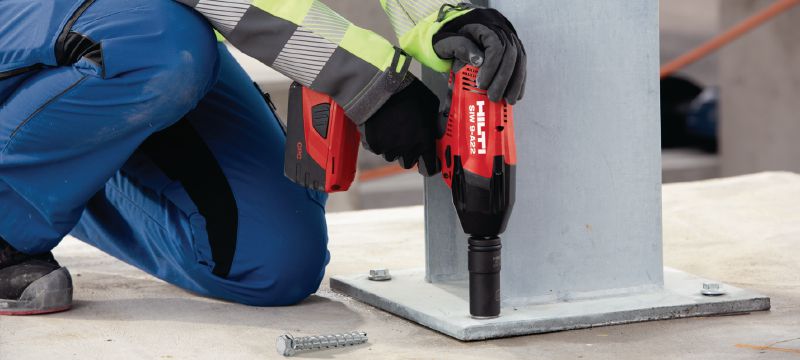

Setting HUS3-H 14 with SIW 9-A22

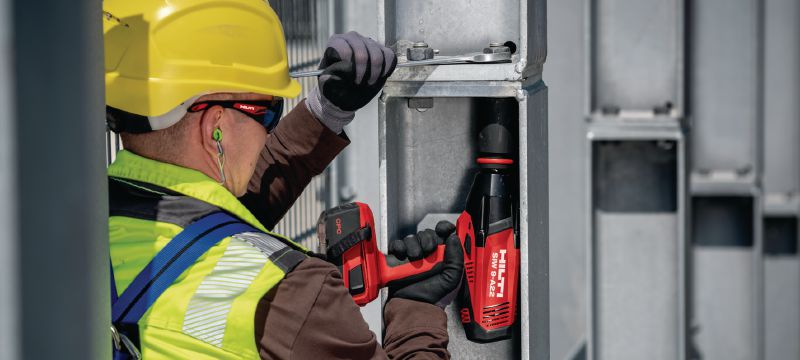

SIW 9-A22 bolting structural steel, r4838535
SIW 9-A22 bolting structural steel, r4838535

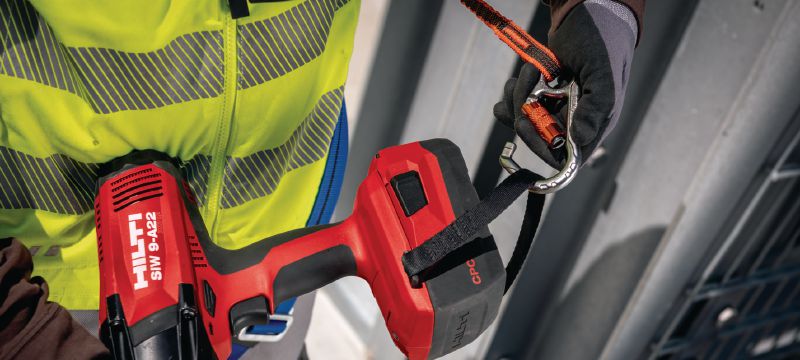

Retaining strap attachement on SIW 9-A22, r4838535, 2106731

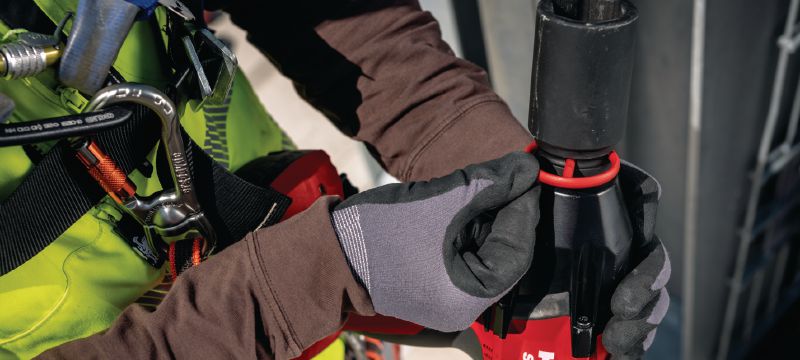

E-spring attachement on 3/4" long socket - SIW 9-A22, r4838535, 2136354, 2148350

Ultimate-class 22V high-torque impact wrench with 3/4" through hole anvil for bolting and anchoring

  • Anvil type: 3/4" through hole
  • Maximum torque: 800 Nm (1)
  • Nut busting torque: 875 Nm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
3,476.00 ILS
3,476.00 ILS
/
1 each

Technical Data

Anvil type
3/4" through hole
Maximum torque
800 Nm (1) 1
Nut busting torque
875 Nm
Full hammering frequency
2200 impacts/minute
Number of gears
1
Dimensions (LxWxH)
250 x 92 x 267 mm
Tool body weight
2.86 kg
A-weighted emission sound pressure level
98.5 dB (A) 2
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SIW 9-A22 (01), Arabic, cn, Danish, English, Estonian, Finnish, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Russian, Swedish, Turkish, Chinese [ 4.7 MB ]

Features & Applications

Features

  • Robust metal gearbox housing for demanding jobsite conditions
  • High-strength steel 3/4" square anvil drive with thru-hole retention for long lifetime
  • Durable and user-friendly E-spring lets you fit impact sockets in one step
  • Low vibration values due to double-hammer gearbox allow long periods of productive work
  • Centered balance point for precise handling in all working directions

Applications

  • Tightening and releasing M16 to M24 nuts and bolts
  • Tightening and releasing 5/8" to 1" nuts and bolts

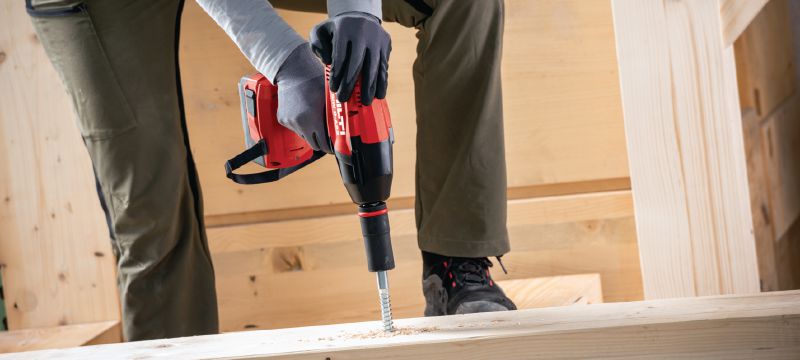

  • Assembling steel profiles, formwork, timber or precast concrete components
  • Pre-tightening bolts on the flanges of large-diameter pipes
  • Pre-tightening nuts and bolts up to 1-1/4"
