Nuron

SIW 4R-22 3/8” Right-angle impact wrench

מברגת ציר SIW 4R-22(N) #2363677

Configurator
Technical Data
Documents
Features & Applications
Related Products

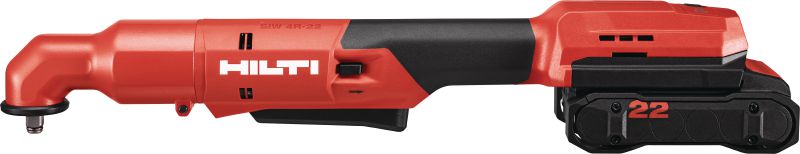

Still life image of the right angle impact wrench SIW 4R-22.

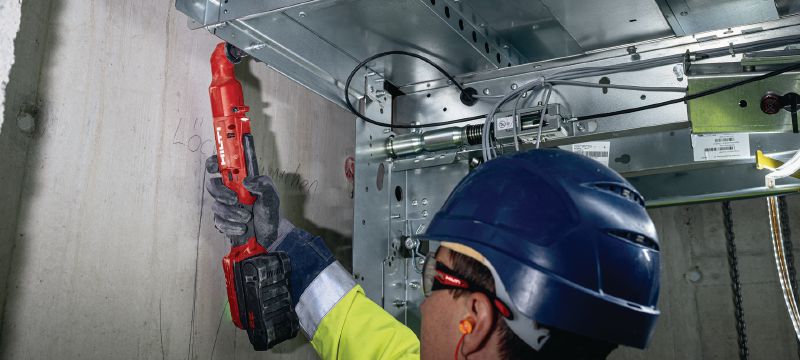

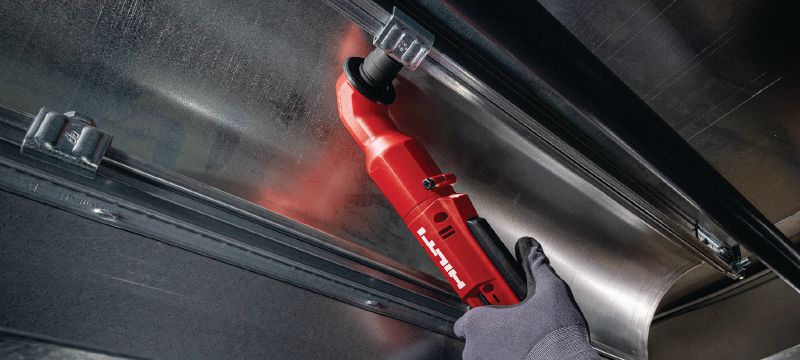

Application image of the right angle impact wrench SIW 4R-22 with B22-55 battery and with socket. Mechanical ventilation application.

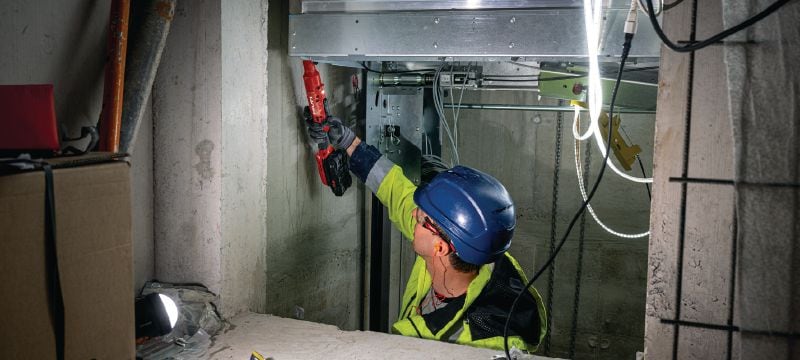

Application image of the right angle impact wrench SIW 4R-22 with B22-55 battery. Elevator application.
Application image of the right angle impact wrench SIW 4R-22 with B22-55 battery. Elevator application.

Compact, cordless right-angled impact wrench for reaching tough to access applications

  • Anvil type: 3/8" anvil
  • Maximum torque: 37 Nm (1); 106 Nm (2)
  • Full hammering frequency: 3800 impacts/minute

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
2,437.00 ILS
2,437.00 ILS
/
1 each

Technical Data

Anvil type
3/8" anvil
Maximum torque
37 Nm (1); 106 Nm (2) 1
Full hammering frequency
3800 impacts/minute
Number of gears
2
No load RPM
gear 1: 1600 rpm; gear 2: 2250 rpm
A-weighted emission sound pressure level
97 dB (A) 2
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SIW 4R-22 (01) (ARCNDAENETFIJAKKKOLTLVNORUSVTRUKZH), Arabic, cn, Danish, English, Estonian, Finnish, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Russian, Swedish, Turkish, Ukrainian, Chinese [ 3 MB ]

Features & Applications

Features

  • Access to hard to reach spaces where other tools won’t fit
  • Reach even further into confined spaces with the longer grip and in-line battery interface
  • Robust 3/8” anvil with friction ring for quick and easy socket changes
  • Built to last thanks to the more efficient brushless motor, more powerful motor cooling and sealed electronics
  • Strong LED light provides more powerful illumination of the work area

Applications

  • Bolting steel – such as for handrails, racking and machinery (M8-M10 diameter)
  • Setting HUS anchors in concrete – such as for handrails and temporary fixtures (diameter 6 mm)
  • Driving screws into 8 mm and 10 mm HRD frame anchors in masonry and concrete
  • Metal bolting in steel – such as handrails, racking and machinery
