AG 230-24D Angle grinder

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
Angle_Grinder
Angle Grinder
Angle Grinder
Angle Grinder
Angle Grinder

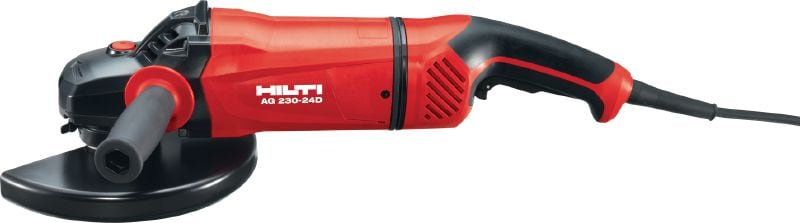

2400W angle grinder with dead man's switch, rotatable grip and long-lasting carbon brush, for discs up to 230 mm

  • Disc diameter: 230 mm
  • Weight according to EPTA-Procedure 01/2003 without battery: 6.5 kg
  • Max. cutting depth: 68 mm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 2,994.00 ILS

Technical Data

Disc diameter
230 mm
Weight according to EPTA-Procedure 01/2003 without battery
6.5 kg
Max. cutting depth
68 mm
No load RPM
gear 1: 6500 rpm
Trigger type
Dead man
A-weighted emission sound pressure level
97 dB (A) 1
Triaxial vibration value for angle grinding (ah,AG)
5.8 m/s² 2
Disclaimer
Use specific guard depending on selected disc
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction AG 230-24D (04), English, Hebrew [ 3.7 MB ]
pdf Operating Instruction AG 230-24D (04), Bulgarian, Czech, German, Greek, English, Spanish, French, Croatian, Hungarian, Italian, Dutch, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Turkish, Ukrainian, Serbian [ 8.8 MB ]

Features & Applications

Features

  • Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the disc jams – helping to reduce a common safety hazard
  • Hilti Smart Power technology automatically adjusts power output to suit the material being cut – helping to deliver consistently high cutting performance and to protect the motor from overload
  • Active Vibration Reduction (AVR) makes the tool much less tiring to use – helping to increase daily productivity

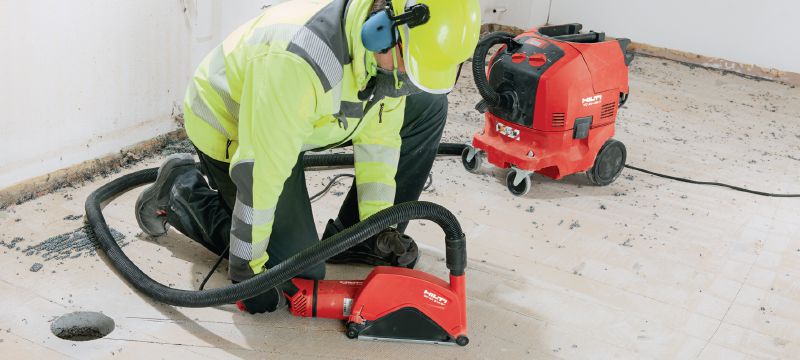

  • Rugged dust removal hood (optional) for virtually dustless operation and soft grips for greater working comfort
  • Adjustable side handle – for a secure, comfortable grip when working in any position

Applications

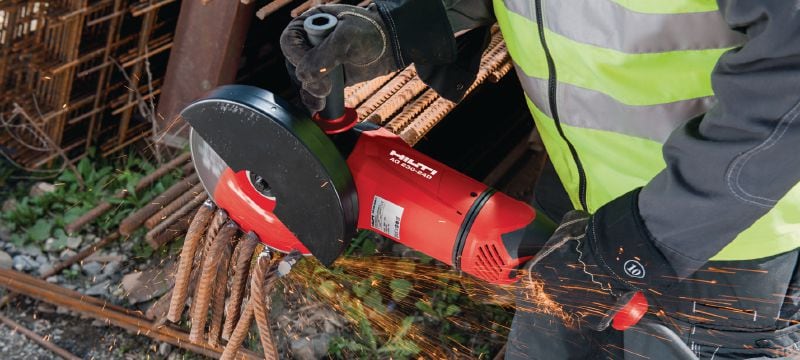

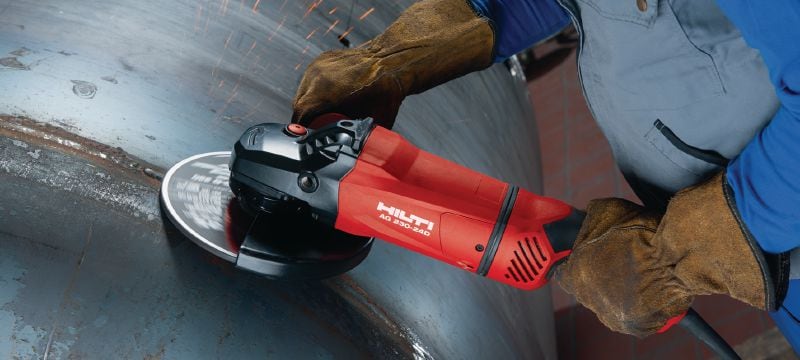

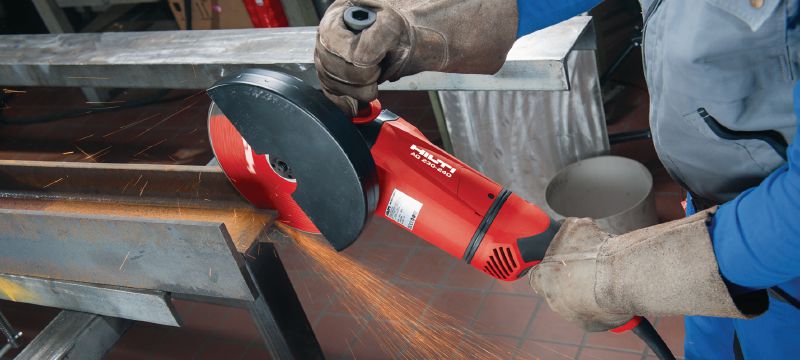

  • Cutting and grinding steel and metal
  • Cutting concrete
  • Slitting for the installation of cable conduits in concrete and brick

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Smooth on-site pick-up and delivery, thanks to our strong partnerships with trusted carriers
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
More information about Fleet Management

LifeTime Services

  • After no-cost period repair costs are capped for as long as we service the tool
  • Pick-up and delivery service
More information about LifeTime Services
