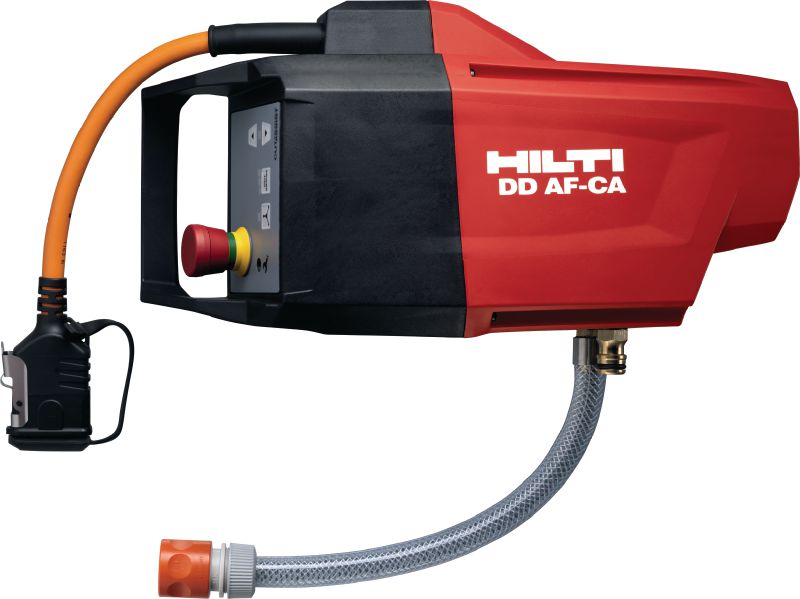

Autofeed units for core drills
מנוע לאוטומציה מלאה CA ל DD350/500 #2082528

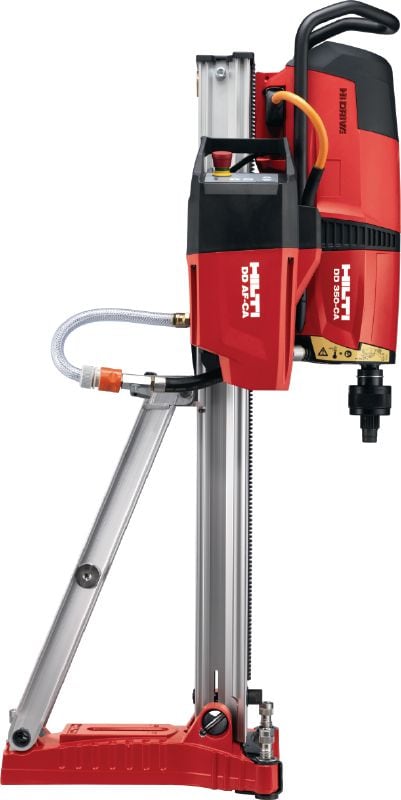

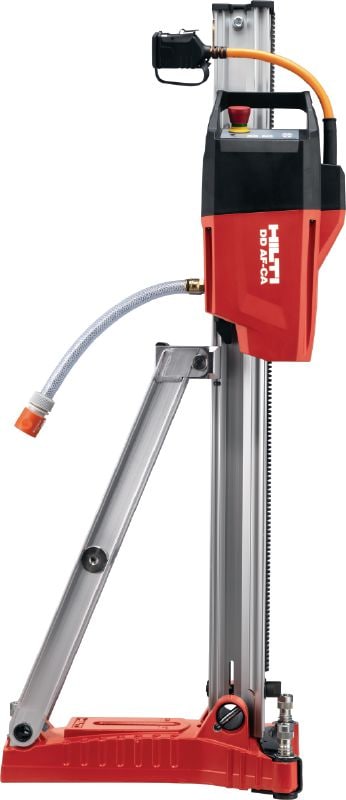

Autofeed unit to assist the drilling process with rig-based diamond coring systems – for use with the DD 350-CA and DD 500-CA
- For use with: DD 350-CA, DD 500-CA
- Weight: 4.5 kg
- Dimensions (LxWxH): 361 x 193 x 133 mm
Choose options
Rated input voltage
- 230 V
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
31,737.00 ILS
31,737.00 ILS
/
1 each
Technical Data
For use with
DD 350-CA, DD 500-CA
Weight
4.5 kg
Dimensions (LxWxH)
361 x 193 x 133 mm
IP protection class
IP 55 (EN 60529)
Rated input voltage
230 V
Rated input power
100 W
Documents
pdf Operating Instruction DD AF-CA (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese [ 11.2 MB ]
pdf Operating Instruction China RoHS II, cn, English, Chinese [ 13.9 KB ]
Features & Applications
Features
- Unmatched productivity with fully automated drilling process
- Automatic surface detection, water management, hole starting, iron boost and through-hole detection
- Intelligent algorithm for immediate reaction to any change in the characteristics of the base material
- Applies optimum power during the drilling process, resulting in extended equipment lifetime and faster drilling progress
- No exposure to vibration – for greater operating safety and higher working comfort
Applications
- Serial drilling of through-holes and penetrations
- Corner holes for sawing
- Large diameters and deep hole drilling
- Stitch coring for installing cable trays
- Drilling where access to the hole is difficult
