TE 800-AVR TE-S demolition hammer

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
Renderings
L074218.tiff
L072220.tiff
L072241.tiff
L072208.tiff

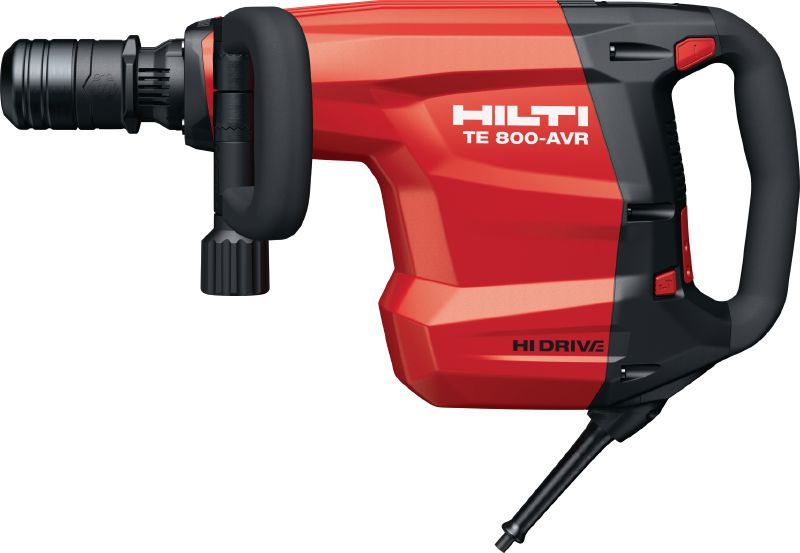

Very powerful TE-S demolition hammer for heavy-duty chiseling in concrete, with Active Vibration Reduction (AVR)

  • Working direction: Wall, Floor
  • Tool chuck type: TE-S
  • Weight according to EPTA-Procedure 01/2003 without battery: 10.6 kg

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 8,342.90 ILS

Technical Data

Working direction
Wall, Floor
Tool chuck type
TE-S
Weight according to EPTA-Procedure 01/2003 without battery
10.6 kg
Single impact energy
21 J
Full hammering frequency
1890 impacts/minute
Max. chiseling performance
2500 cm³/min
Dimensions (LxWxH)
587 x 141 x 326 mm
Triaxial vibration for chiseling into concrete
9.0 m/s² 1
Dust removal system available
TE DRS-B
A-weighted emission sound pressure level
90 dB (A) 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

Material safety datasheet
Operating Instruction
pdf Material safety datasheet Hilti Grease (EN) [ 765.3 KB ]
pdf Material safety datasheet Hilti Grease (HE) [ 910.2 KB ]

Features & Applications

Features

  • Powerful breaking performance thanks to exceptional impact energy and innovative Hilti chisels
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • High robustness and long lifetime due to separate lubrication chambers
  • Power reduction button for use on lighter materials and for greater precision in controlled breaking jobs
  • Optional TE DRS-B dust removal system collects up to 95% of fine dust

Applications

  • Demolition work on walls
  • Correction work on floor slabs
  • Breaking out openings for doors and windows
  • Making penetrations for ducts and pipes

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • After no-cost period repair costs are capped
  • Smooth on-site pick-up and delivery, thanks to our strong partnerships with trusted carriers
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
More information about Fleet Management

LifeTime Services

  • After no-cost period repair costs are capped for as long as we service the tool
  • Materials and workmanship warranty over the entire life of the tool
More information about LifeTime Services
