Nuron

TE 500-22 SDS-Max cordless chipping hammer

Cordless breaker TE 500-22 case #2309294

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services

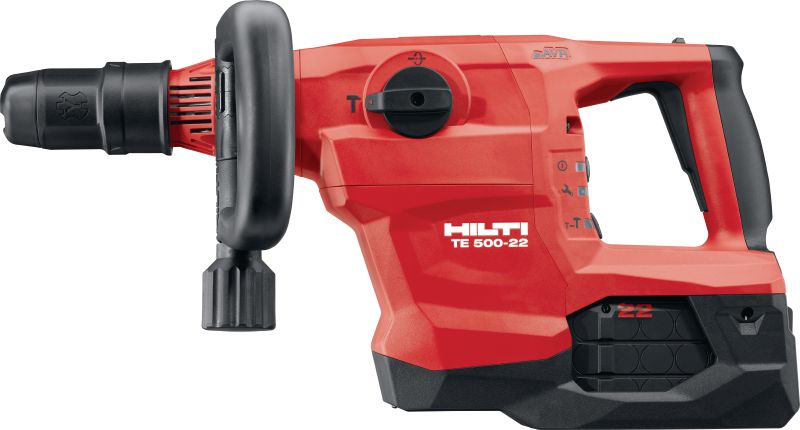

TE 500-22 tool body

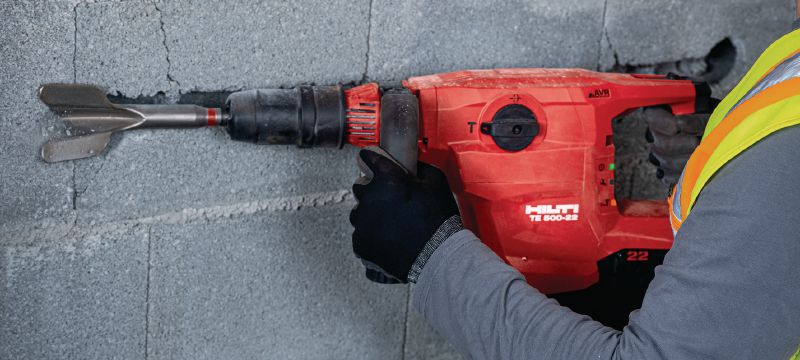

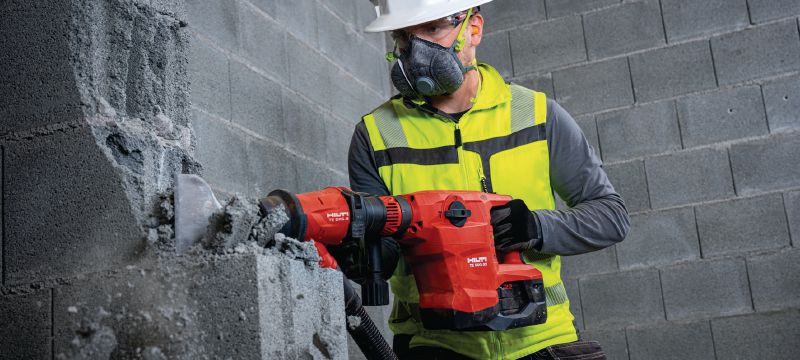

Masonry wall breaking with SDS-Max cordless wall breaker TE 500-22 and dust removal system

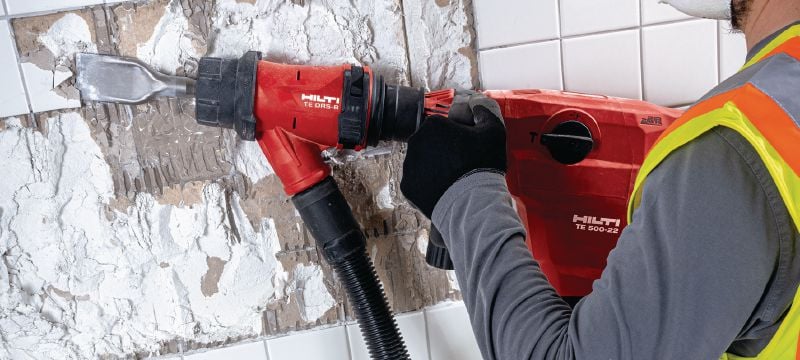

Removing tiles with SDS-Max cordless wall breaker TE 500-22 and dust removal system
Opening channel in grey-brick masonry with SDS-Max cordless wall breaker TE 500-22
Masonry wall breaking with SDS-Max cordless wall breaker TE 500-22 and dust removal system

Cordless SDS Max (TE-Y) demolition and chipping hammer with Active Vibration Reduction for chiseling concrete or masonry (Nuron battery platform)

  • Working direction: Wall
  • Tool chuck type: TE-Y (SDS Max)
  • Tool body weight: 6 kg

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
7,581.00 ILS
7,581.00 ILS / 1 each

Technical Data

Working direction
Wall
Tool chuck type
TE-Y (SDS Max)
Tool body weight
6 kg
Single impact energy
8.1 J
Full hammering frequency
3300 impacts/minute
Dimensions (LxWxH)
528 x 118 x 264 mm
Triaxial vibration for chiseling into concrete
8.7 m/s² 1
A-weighted emission sound pressure level
95 dB (A) 2
Rated voltage
21.6 V
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

Material safety datasheet
Operating Instruction
pdf Material safety datasheet Hilti Grease (EN) [ 765.3 KB ]
pdf Material safety datasheet Hilti Grease (HE) [ 910.2 KB ]

Features & Applications

Features

  • Uncompromised cordless performance – revolutionary Nuron batteries deliver the power to help you boost productivity and gain independence from other power supplies
  • More power, more possibilities – TE 500-22 chipping hammers can perform all the full range of tasks as comparable corded demolition hammers
  • Reduced worker fatigue – Active Vibration Reduction (AVR) helps minimize your exposure to vibration, better protecting your health and reducing interruptions on the jobsite
  • Virtually dust-free demolition – contributes to safer jobsites when used with a DRS-B dust removal system connected to a compatible Hilti vacuum cleaner
  • On the Nuron battery platform – cordless chipping hammers without compromise thanks to longer-lasting Nuron batteries, high-performance chisels and a range of services to keep you productive, today and tomorrow

Applications

  • Demolishing concrete and masonry walls
  • Removing tiles and plaster
  • Loosening compacted earth
  • Chiseling breaches, channels or penetrations for pipes in walls and floors

Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
