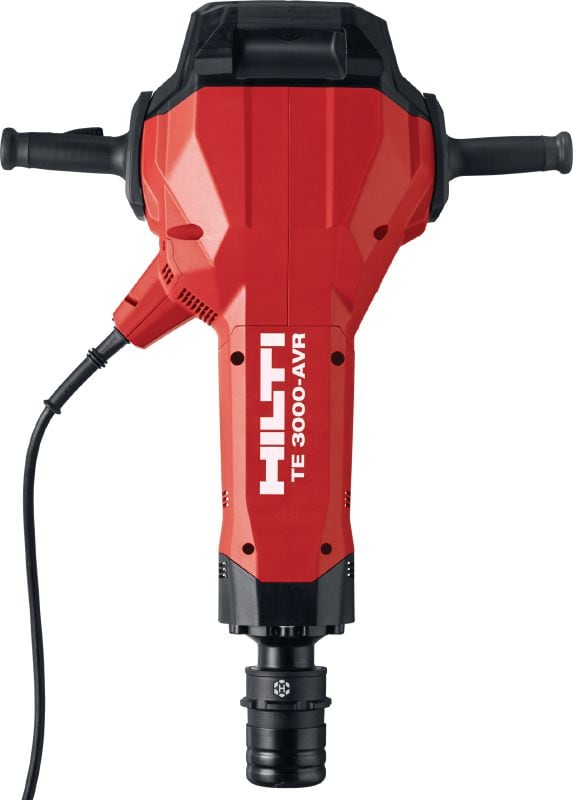

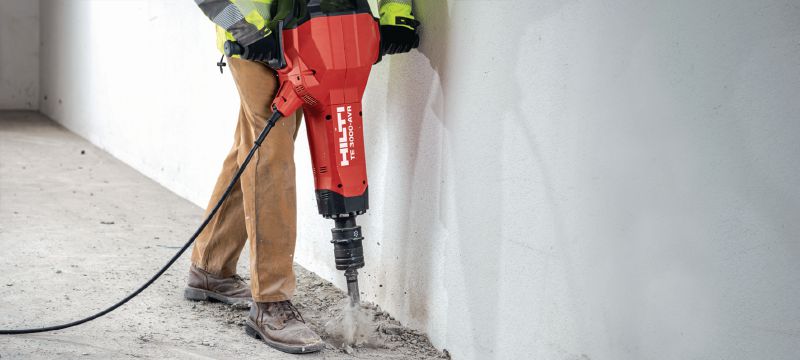

TE 3000-AVR TE-H heavy-duty electric jackhammer
Exceptionally powerful breaker for heavy-duty concrete demolition, asphalt cutting, earthwork and driving ground rods
- Working direction: Floor
- Tool chuck type: TE-H (Hilti HEX 28)
- Weight according to EPTA-Procedure 01/2003 without battery: 27.1 kg
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 21,907.95 ILS
Technical Data
Working direction
Floor
Tool chuck type
TE-H (Hilti HEX 28)
Weight according to EPTA-Procedure 01/2003 without battery
27.1 kg
Single impact energy
85 J
Full hammering frequency
858 impacts/minute
Max. chiseling performance
60000 cm³/min
Dimensions (LxWxH)
820 x 588 x 218 mm
Triaxial vibration for chiseling into concrete
6.3 m/s² 1

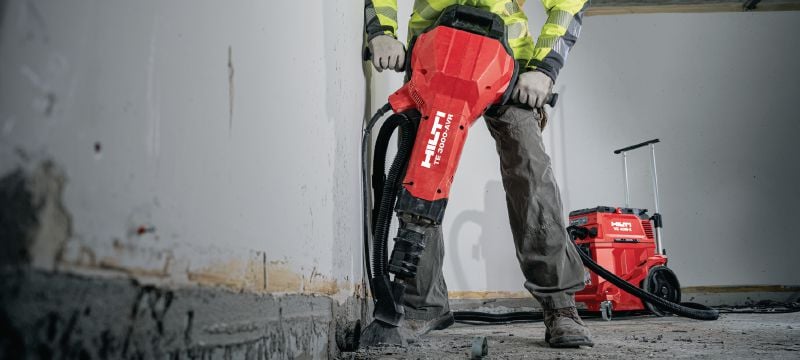

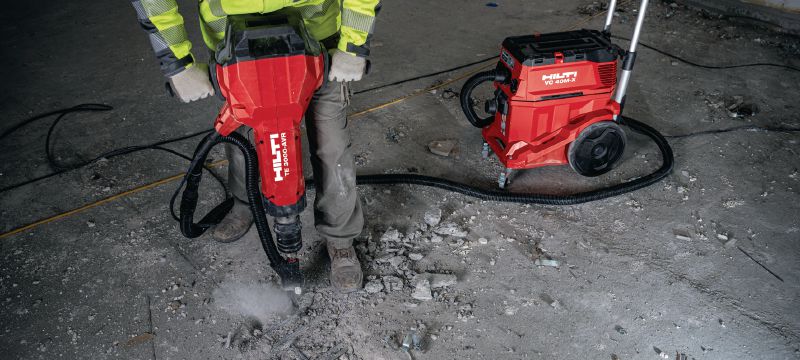

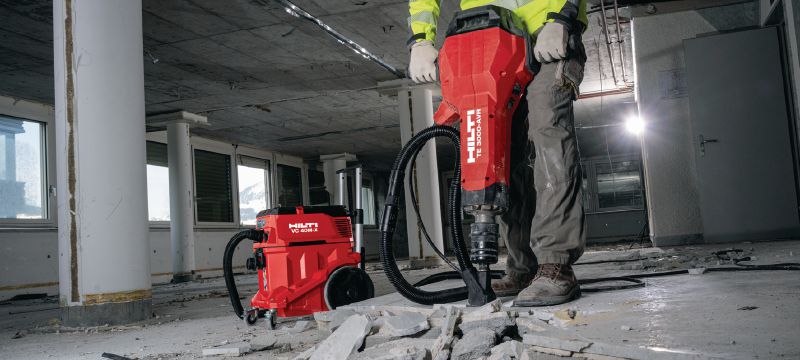

Dust removal system available
TE DRS-H
A-weighted emission sound pressure level
98 dB (A) 2
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- Upgraded performance – the TE 3000 now delivers demolition power comparable to 45 kg air-powered breakers
- Improved handling – 10% weight reduction and new top handle make the jackhammer easier to control and transport
- Active Vibration Reduction (AVR) – vibration-damped jackhammer with two fully decoupled handles and -10% lower vibration than previous TE 3000 models
- Redesigned quick change chuck – takes new Hilti TE-H chisels
- Virtually maintenance-free brushless motor and triple-chamber lubrication systems for less downtime and longer lifetime
Applications

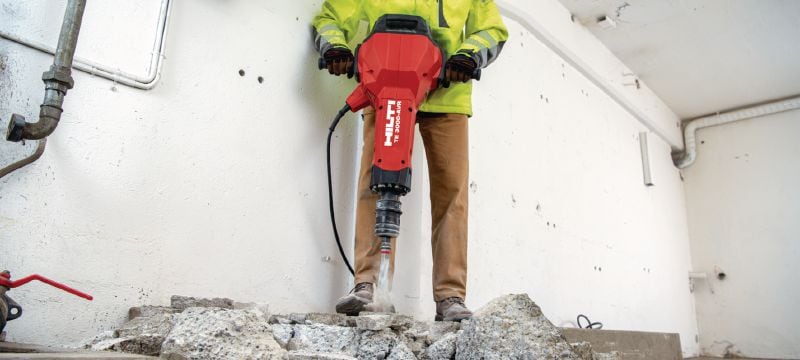

- Demolishing reinforced concrete slabs and foundations

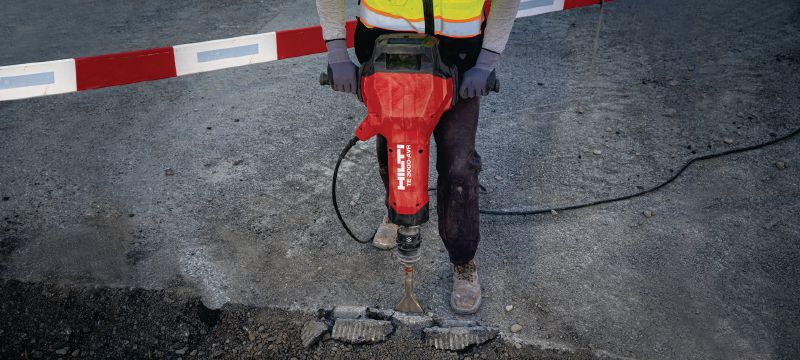

- Breaking/cutting asphalt in civil road construction, pipe laying and pavement repair
- Removing concrete for structural restoration, slab extensions, rebar reinforcement and repair
- Digging, trenching and tamping in rocky, hard clay and other dense earthwork
- Setting ground rods in hard soils for a safer, ladder-free installation of earthing rods (optional TE-H PD Power Driver required)
For approval or certificate information, please see individual items.
Related Products
Portable, temporary electric power supply with high output and capacity for use with heavy-duty power tools
Pointed chisel bits for chipping/breaking up concrete and masonry using the third-gen TE 3000 or H28 demolition tools with clamp
Self-sharpening flat chisel bits for precision demolition of concrete and masonry using the third-gen TE 3000 or H28 demolition tools with clamp
Ultra-robust flat chisel bits for chipping/channeling into concrete and masonry using the third-gen TE 3000 or H28 demolition tools with clamp
