Nuron

DSH 700-22 ATC Battery-powered cut-off saw (300mm)

Battery cut-off saw DSH 700-22 ATC #2423837

Configurator
Technical Data
Documents
Features & Applications
Related Products

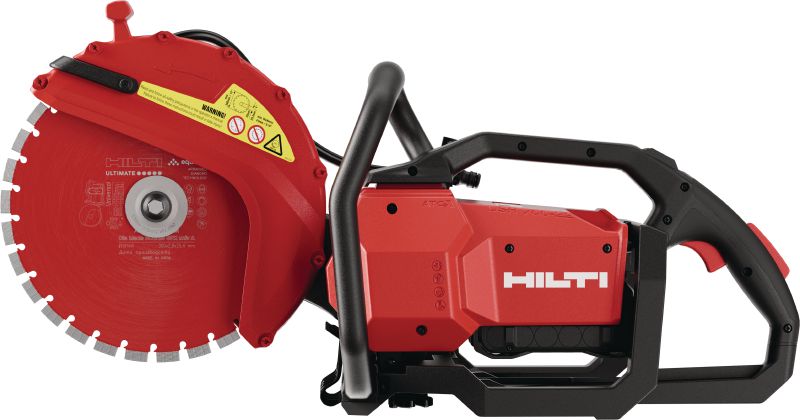

DSH 700-22 without disc.

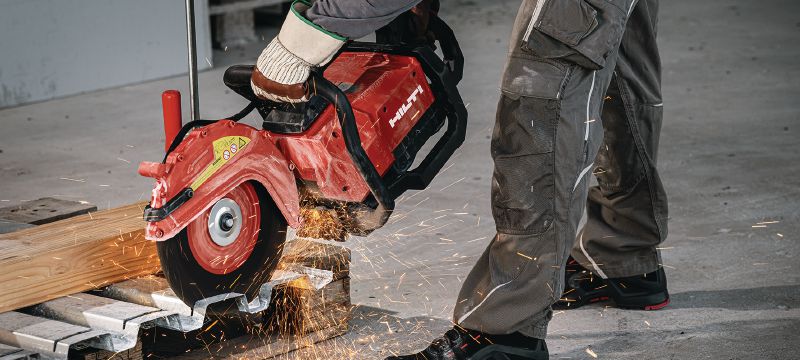

Application image of metal deck cutting with abrasive disc.

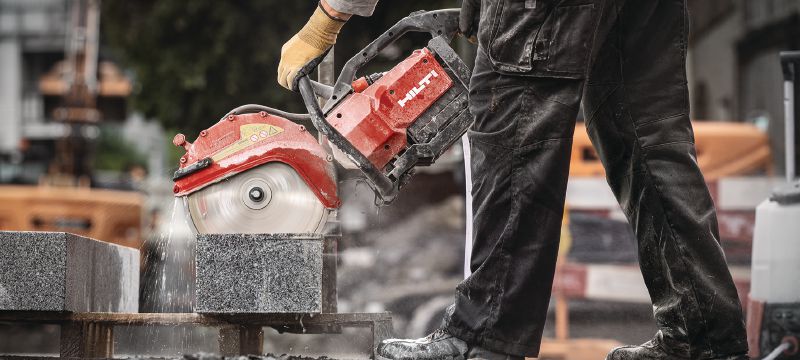

Application image of curbstone cutting with SPX universal A blade.

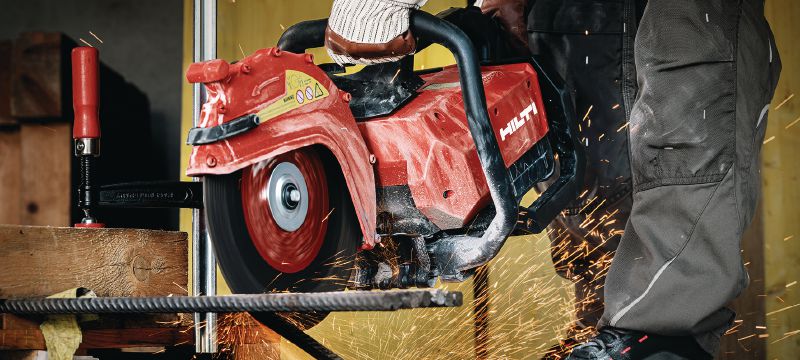

Application image of metal pipe cutting with abrasive disc.

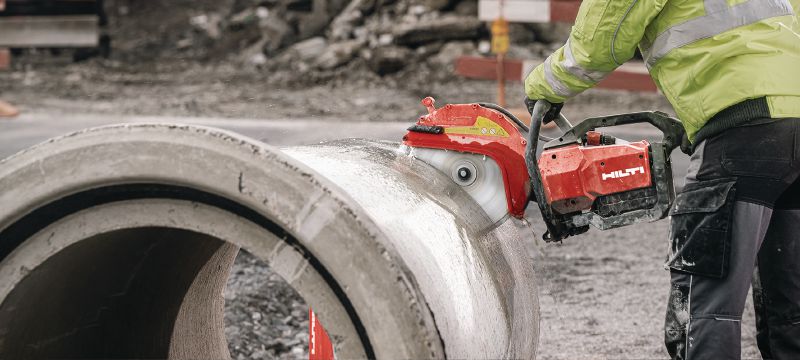

Application image of concrete pipe cutting with SPX universal A blade.

Versatile rear-handle battery cut-off saw, for cutting up to 120 mm with 300 mm blades in concrete, masonry, and metal (Nuron battery platform)

  • Base materials: All types of concrete and brick, All types of masonry (hollow brick, limestone, etc), Asphalt, Steel, Mineral
  • Dimensions (LxWxH): 740 x 290 x 350 mm
  • Protection class: IEC Battery operated

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
9,025.00 ILS
9,025.00 ILS
/
1 each

Technical Data

Base materials
All types of concrete and brick, All types of masonry (hollow brick, limestone, etc), Asphalt, Steel, Mineral
Dimensions (LxWxH)
740 x 290 x 350 mm
Protection class
IEC Battery operated
Work environment
Interior and Exterior
Arbor Size
Option 1 : 25.4 mm; Option 2: 20 mm
A-weighted emission sound power level
107 dB (A) 1
  1. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction DSH 600-22 & DSH 700-22, Bulgarian, cn, Greek, English, Hebrew, Croatian, Italian, Japanese, Korean, Romanian, Slovenian, Chinese, Serbian [ 5.3 MB ]

Features & Applications

Features

  • Matching power-class – our second generation offers improved power to help match the performance and feel of a 70cc gas cut-off saw, all without the fumes, noise, or high vibration rate
  • Advanced safety features – new 3D Active Torque Control (ATC) stops unexpected saw kickback in under 1 second, and fast-acting blade brake stops the blade in ≤ 4 seconds after releasing the trigger
  • Longer trigger time – cuts up to 30% more than a full tank of gas with four B 22-290 Nuron batteries and 300 mm SPX univ. A cordless-optimized blades (see technical data below)
  • Push button start – green LED power button indicates whenever the tool is ON and automatically turns the tool OFF after 1 minute
  • Versatile handling – weighing 13.5 kg (with two B 22-290 batteries and a 300 mm blade), this cut-off saw can be used for both ground-facing and front-facing applications

Applications

  • Construction work – cutting out openings in brick or concrete walls
  • Metalwork – cutting steel profiles, pipes and steel sheets
  • Laying paving – cutting curbstones and paving slabs to size
  • Masonry work – cutting bricks and blocks to size
  • Floor construction – cutting expansion joints in fresh concrete
