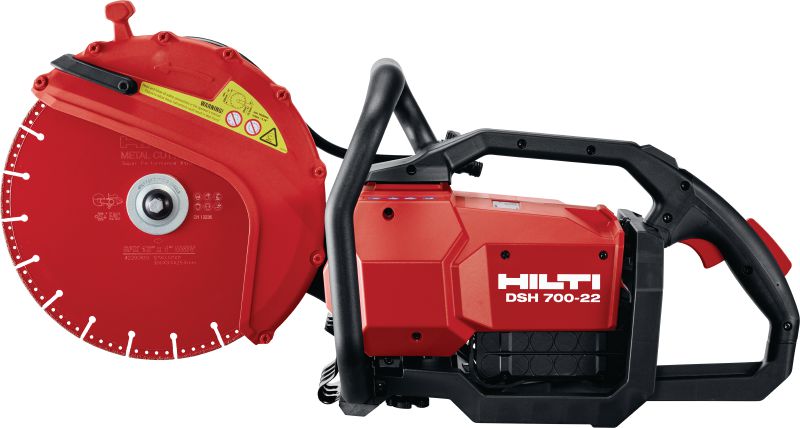

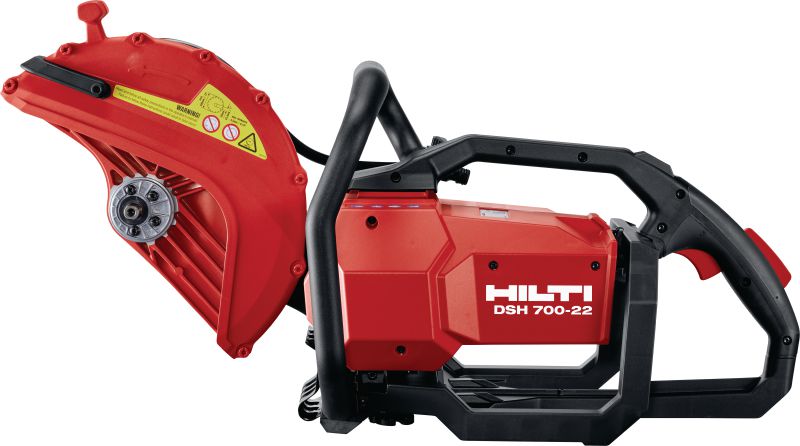

DSH 700-22 Battery cut-off saw (rear handle)

מסור נטען DSH 700-22(N) #2334240

DSH 700-22 with SPX Metal blade and B 22-255 for metal cutting

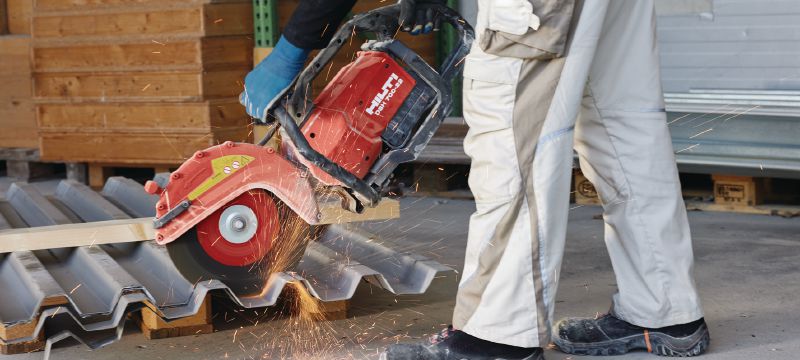

Sheet metal cutting with DSH 700-22 and Hilti abrasive disc

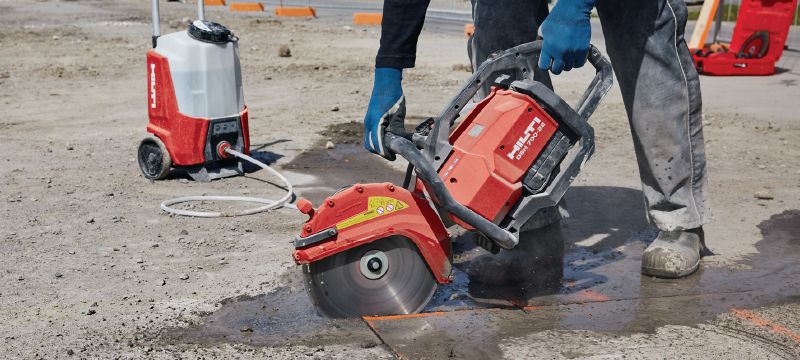

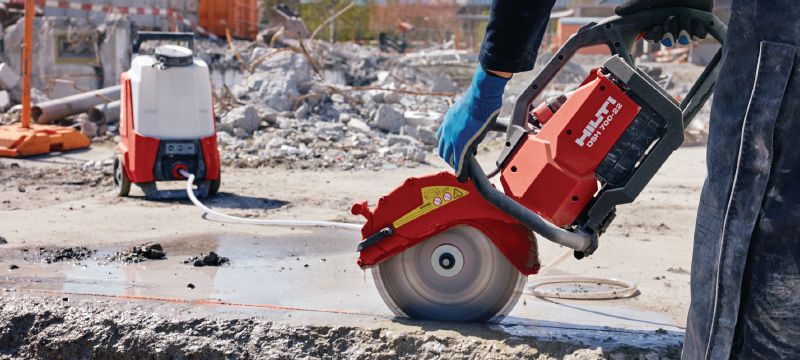

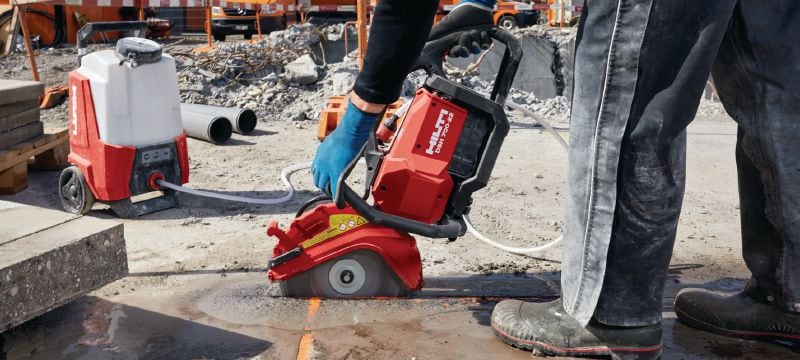

Concrete cutting ground facing with DSH 700-22

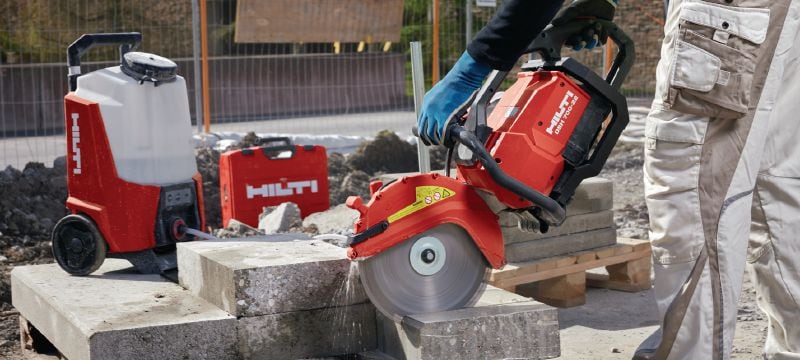

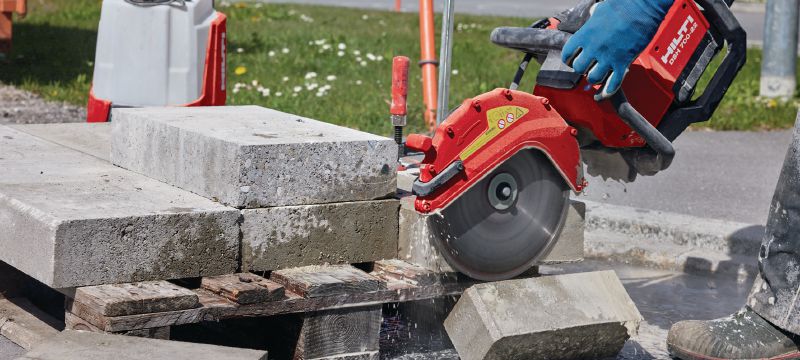

Cutting curb stones with DSH 700-22 and SPX univ. A diamond blade

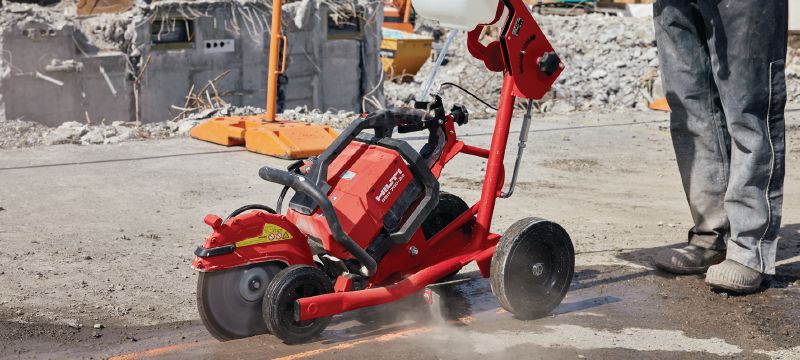

Cutting asphalt with DSH 700-22 mounted on floor saw cart DSH-FSC

Heavy-duty, rear-handle battery-powered cut-off saw for concrete, metal and masonry (Nuron battery platform)

Base materials: All types of concrete and brick, All types of masonry (hollow brick, limestone, etc), Asphalt, Steel, Mineral
Dimensions (LxWxH): 740 x 290 x 350 mm
Protection class: IEC Battery operated

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

9,994.95 ILS

1 each

Technical Data

Base materials

All types of concrete and brick, All types of masonry (hollow brick, limestone, etc), Asphalt, Steel, Mineral

Dimensions (LxWxH)

740 x 290 x 350 mm

Protection class

IEC Battery operated

Work environment

Interior and Exterior

Arbor Size

Option 1 : 25.4 mm; Option 2: 20 mm

A-weighted emission sound power level

108 dB (A) ¹

According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction DSH 600-22 (01), Bulgarian, cn, Greek, English, Hebrew, Croatian, Italian, Romanian, Slovenian, Chinese, Serbian [ 5.5 MB ]

Download

Features & Applications

Features

Battery-powered rear handle cut-off saw for floor-focused tasks – DSH 700-22 gets the same work done as gas cut-off saws in this class, but without the fumes, noise, extra maintenance and fuel mix issues
Longer trigger time – cuts up to 30% more than a full tank of gas with four B 22-255 Nuron batteries and 300mm SPX univ. A cordless-optimized blades
Lower running costs – no fuel to buy or mix; less maintenance, and up to double the lifespan of a gas saw thanks to a brushless electric motor
Perfect for ground-facing applications – this cut-off saw weighs just 8.8 kg (or 13.3 kg including two B 22-255 batteries and a 300 mm blade)
Improved safety features – fume-free, quieter, lower-vibration cutting, and a fast-acting blade brake

Applications

Slabs and paving – cutting concrete, asphalt, curbstones and pavers (max. cutting depth 120 mm with 300 mm blades)
Floor construction – cutting expansion joints. Compatible with the DSH-FSC Floor saw cart (sold separately)
Cutting concrete and masonry – such as making new openings or trimming blocks to size
Metalwork – cutting metal deck, rebar, steel sheet, metal track, and pipes
Lower-dust cutting with DSH-DRS accessories – using a compatible vacuum or water supply may help you comply with local silica dust exposure limits
