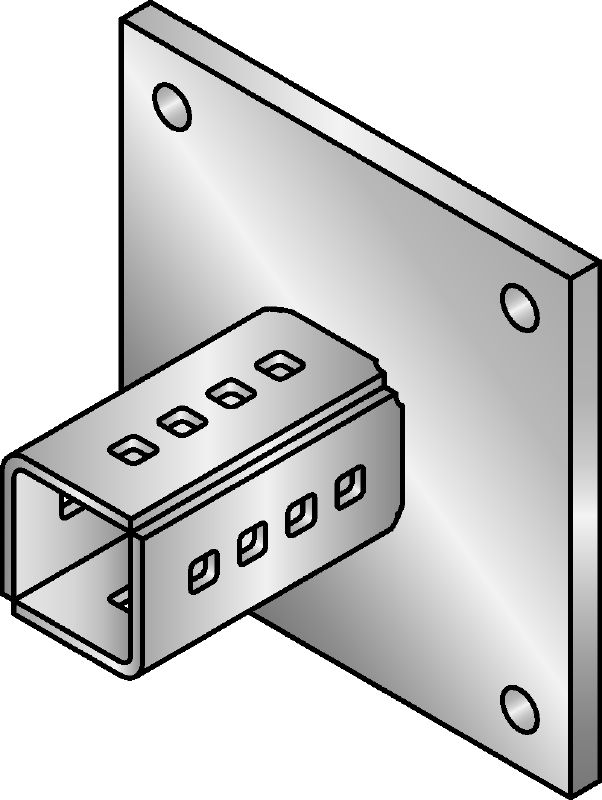

MIC-C-DH Baseplate
Hot-dip galvanized (HDG) baseplate for fastening MI-90 girders to concrete for heavy-duty applications
- Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
- Surface finish: HDG: Connector min 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Choose options
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: Connector min 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm
Documents
Features & Applications
Features
- High-strength part designed for extra-high application loads
- Concrete connector base plates can be fastened using a variety of Hilti anchors
- Designed for fast, one-person installation and extension
- No welding required – for faster, more efficient installation
- Hot-dip galvanized coating for better corrosion protection
Applications

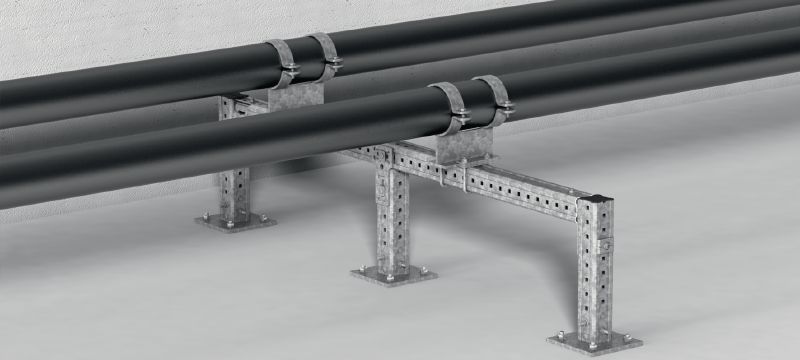

- Part of a modular system for supporting cable trays, pipes and miscellaneous secondary steel
- Fastening to concrete
- Fastening to ceilings, walls and floors
- Designed to provide extra-high load capacity
- Recommended for use in moderately corrosive outdoor and indoor environments
For approval or certificate information, please see individual items.
