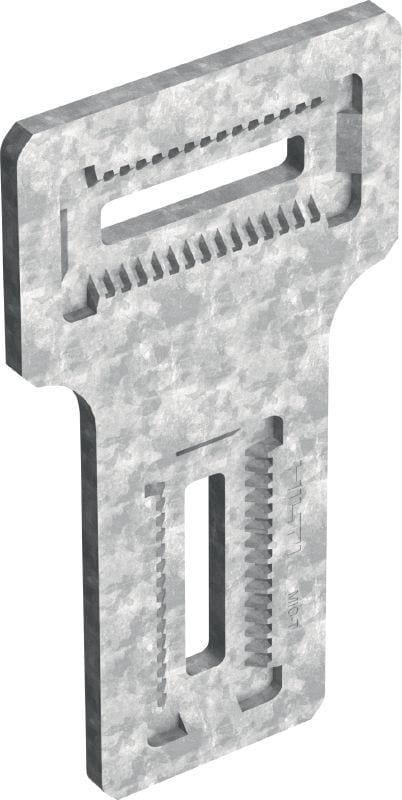

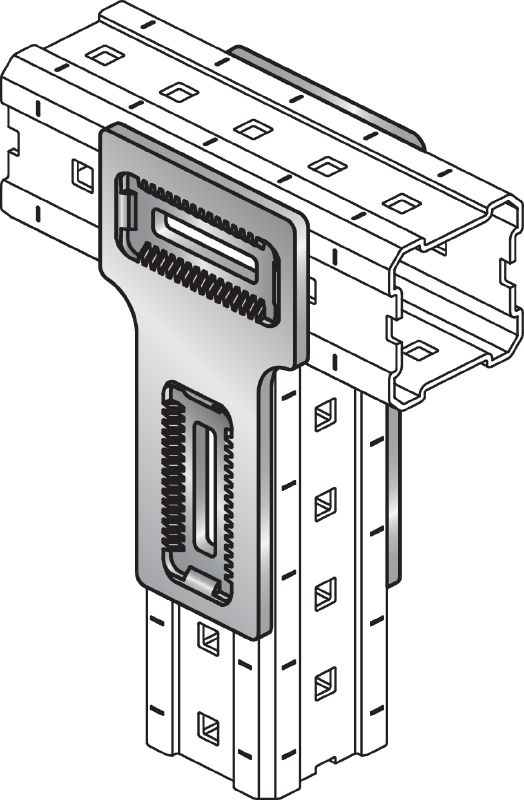

Hot-dip galvanized (HDG) connector for fastening MI girders perpendicularly to one another

  • Weight: 2.2 kg
  • Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Tooth plate: S235 - EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
  • Surface finish: HDG: Connector 55 µm - DIN EN ISO 1461; Tooth plate, Bolt, Nut 45 µm - DIN EN ISO 1461

Choose options

Modular Girder Type
  • 90, 120
Pack size
  • 2 pc
Product options
Quantity
Pack
Total Pieces
2
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

1,026.00 ILS

513.00 ILS / 1 each

Technical Data

28657.eps
IS_HNA_316.eps
Weight
2.2 kg
Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Tooth plate: S235 - EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: Connector 55 µm - DIN EN ISO 1461; Tooth plate, Bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm

Documents

Features & Applications

Features

  • Positive engagement for optimum transmission of forces and moments
  • Connector comes with self-locking nuts to help protect against vibration
  • Rigid extension for connection of MI girders
  • Designed for fast, one-person installation
  • No welding required – for faster, more efficient installation

Applications

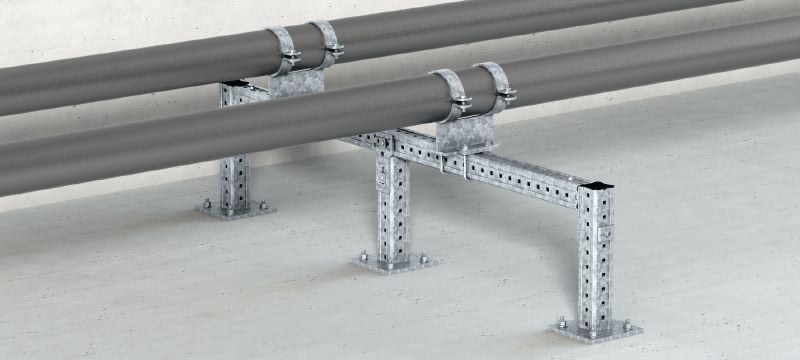

  • Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
  • Industrial and heavy commercial applications requiring an easy-to-install, adjustable, flexible solution that eliminates the need for welding
  • Pedestal connections
