MIC-L Connector

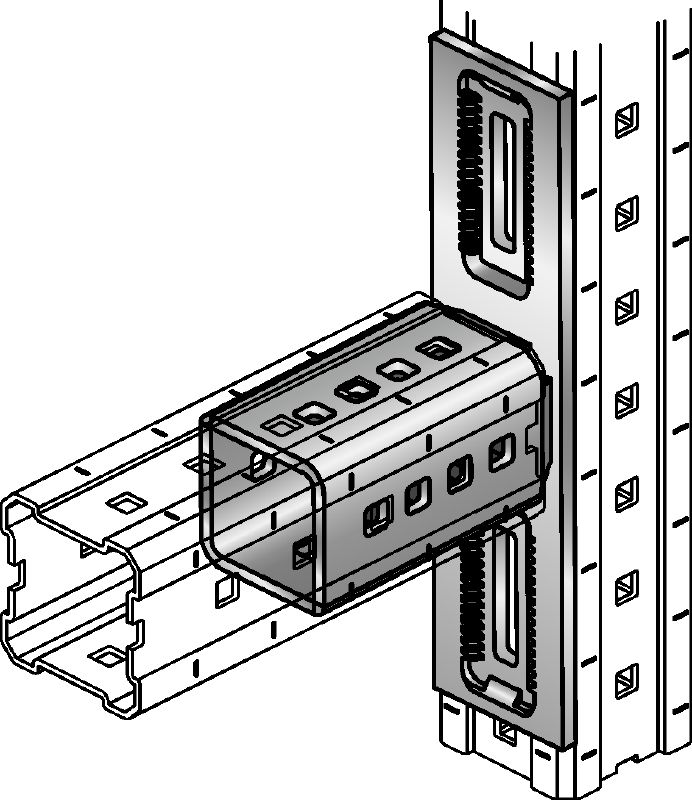

Hot-dip galvanized (HDG) connector for fastening MI girders perpendicularly to one another

Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Backing plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-7 - DIN EN 1562; Tooth plate: S235 - EN10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish: HDG: Connector 55 µm - DIN EN ISO 1461; Backing plate, Tooth plate, Bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Choose options

Modular Girder Type

Pack size

2 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 909.00 ILS

Technical Data

Material composition

Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Backing plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-7 - DIN EN 1562; Tooth plate: S235 - EN10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8

Surface finish

HDG: Connector 55 µm - DIN EN ISO 1461; Backing plate, Tooth plate, Bolt, Nut 45 µm - DIN EN ISO 1461

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Tightening torque

84 Nm

Wrench size

19 mm

Documents

Features & Applications

Features

Provides a strong and rigid connection
Adjustable by up to 50 mm during installation
Can be finely adjusted by up to 5 mm
Connector comes with self-locking nuts to help protect against vibration
No welding required – for faster, more efficient installation

Applications

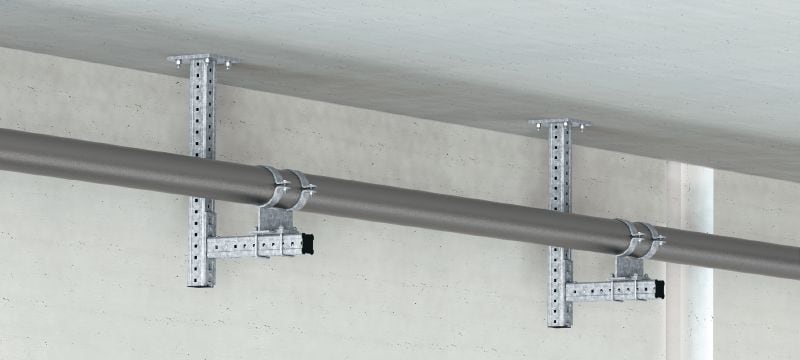

Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
Provides flexible solutions for industrial and heavy commercial applications, eliminating the need for welding

For approval or certificate information, please see individual items.
