MIC-PA pipe shoe connector

Connector pipe shoe MIC-PA90 #304836

Configurator
Technical Data
Documents
Features & Applications
Related Products

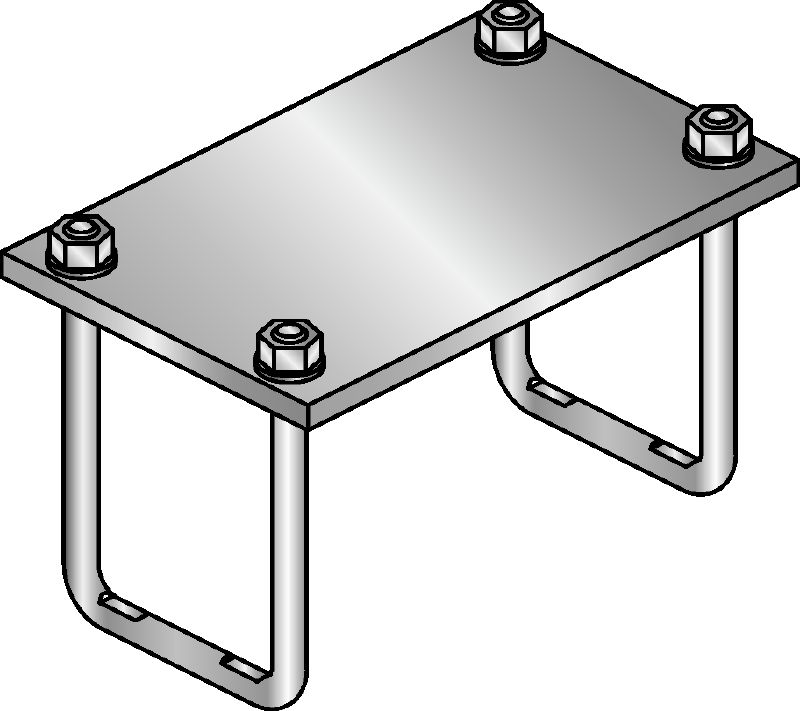

MIC-PA90
LCG001006.tiff

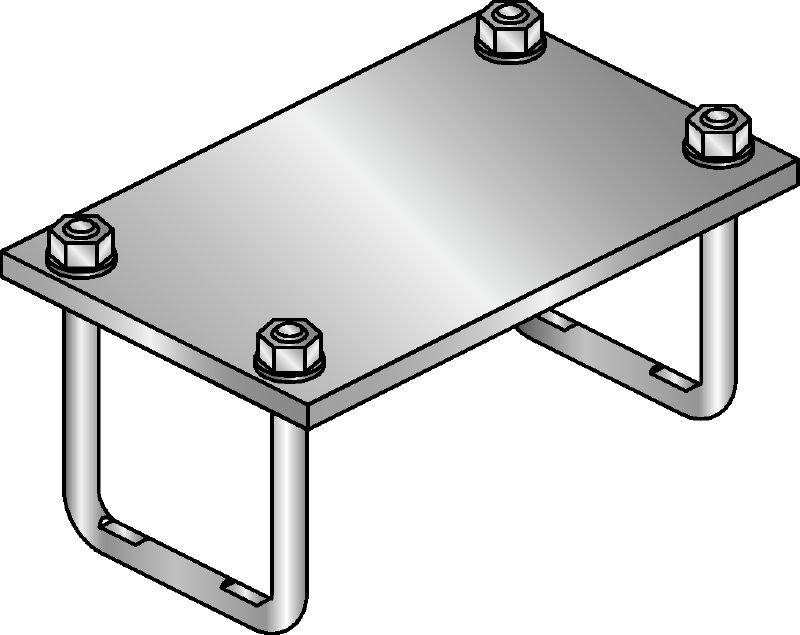

MIC-PA90
14618.eps

Hot-dip galvanized (HDG) connector for fastening pipe shoes to MI girders for heavy-duty applications

  • Weight: 3.44 kg
  • Material composition: Plate: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2;U-bolt: Steel grade 8.8; Nut: Steel grade 8
  • Surface finish: HDG: U-bolt, Nut 45 µm - DIN EN ISO 1461; Plate 55 µm - DIN EN ISO 1461

Choose options

Modular Girder Type
  • 90
Pack size
  • 2 pc
 Product options
Quantity
Pack
Total Pieces
2
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
787.00 ILS
393.50 ILS
/
1 each

Technical Data

Details
Technical illustrations
Weight
3.44 kg
Material composition
Plate: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2;U-bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: U-bolt, Nut 45 µm - DIN EN ISO 1461; Plate 55 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm

Documents

pdf Instruction for use MIC-PA90 / MIC-PA120, Portuguese, French, Spanish, English, Chinese, Vietnamese, Ukrainian, Turkish, Thai, Swedish, Slovenian, Slovak, Sardinian, Russian, Romanian, Polish, Norwegian, Dutch, Malay, Latvian, Lithuanian, Korean, Kazakh, Japanese, Italian, Hungarian, Croatian, Finnish, Estonian, Greek, German, Danish, Czech, cn, Bulgarian, Arabic [ 284.2 KB ]

Features & Applications

Features

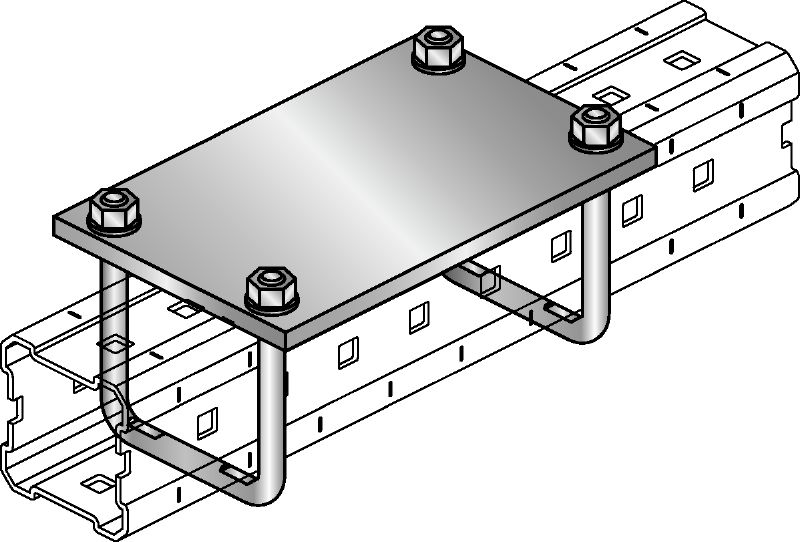

  • The adapter plates replace the steel beam flange, thus allowing use of conventional clamping systems for pipe supports
  • Reduces total cost of installation compared to applications utilizing conventional welded steel structures.
  • Easy, straight forward installation process

Applications

  • Pipe shoe for hot pipes
  • Fastening pipes, with clamping system for fixed supports
  • Adapter components for pipe support clamping systems
