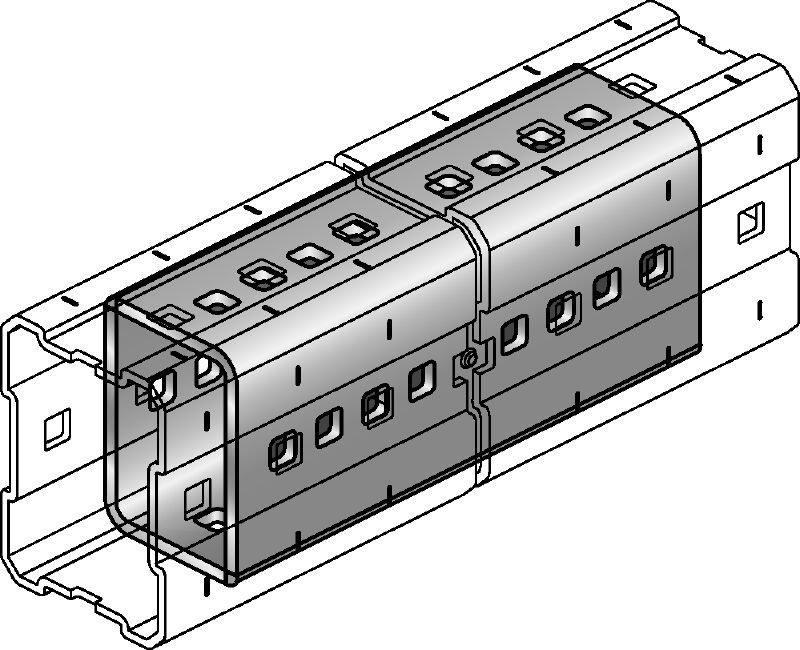

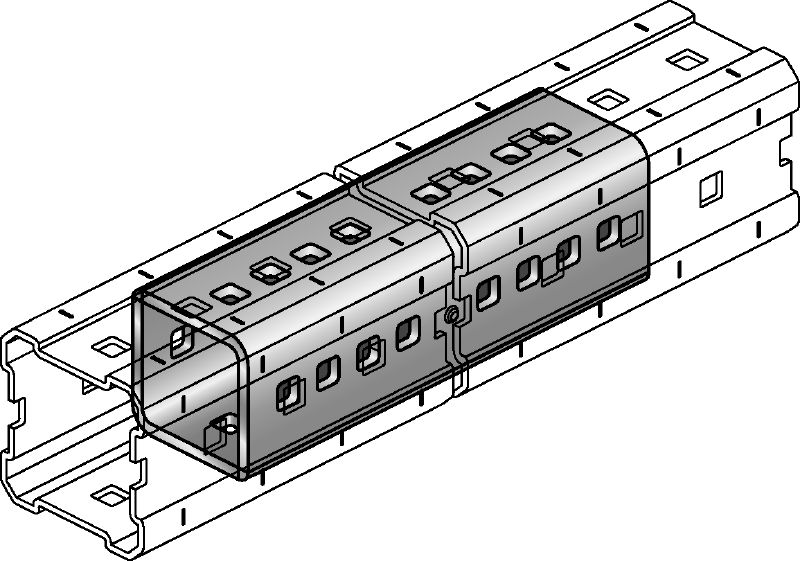

Hot-dip galvanized (HDG) connector used to connect MI girders longitudinally for long spans in heavy-duty applications

  • Weight: 3.69 kg
  • Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
  • Surface finish: HDG: Connector 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461

Choose options

Modular Girder Type
  • 90
Pack size
  • 2 pc
Product options
Quantity
Pack
Total Pieces
2
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

1,284.00 ILS

642.00 ILS / 1 each

Technical Data

14606.eps
IS_HNA_401.eps
Weight
3.69 kg
Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: Connector 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm

Documents

Features & Applications

Features

  • Designed for faster and more efficient installation
  • Positive locking hold for optimum transmission of forces and moments
  • Connector comes with self-locking nuts to help protect against vibration
  • Built-in stop helps prevent the extension sliding right inside the girder

Applications

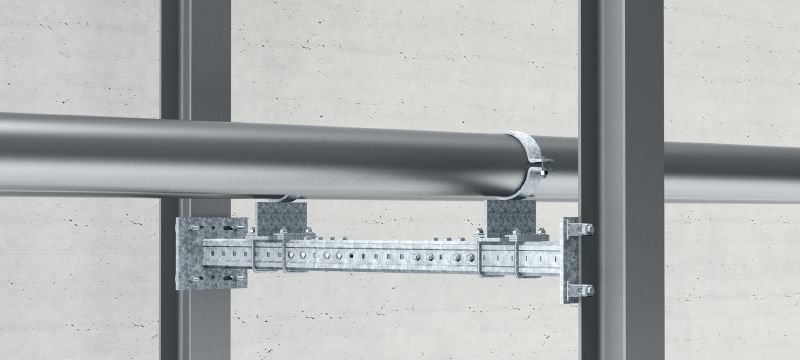

  • Connecting MI girders to each other longitudinally
