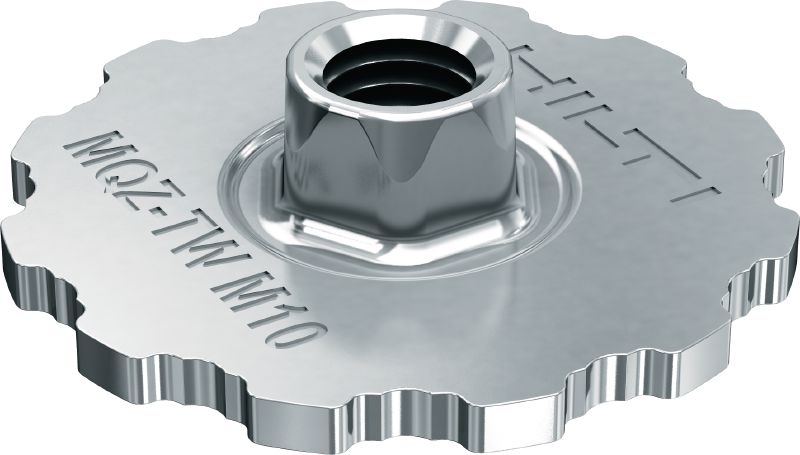

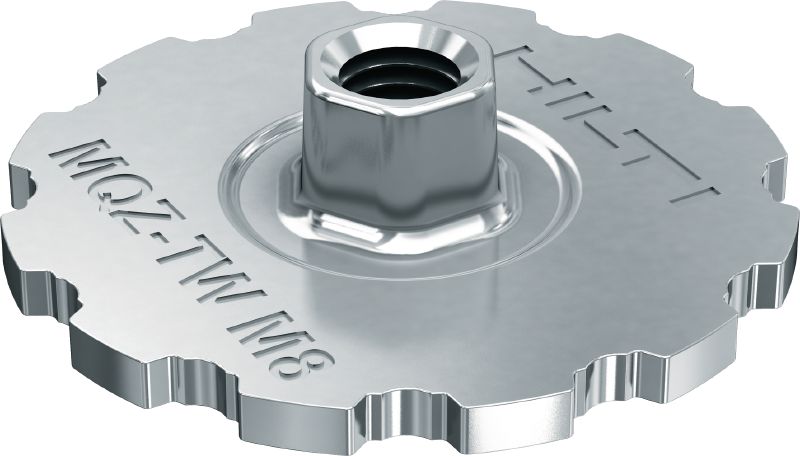

MQZ-TW Trapeze wheel

Configurator
Technical Data
Documents
Features & Applications
Related Products
MQZ-TW,_Trapeze_wheel
MQZ-TW,_Trapeze_wheel
MQZ-TW,_Trapeze_wheel
MQZ-TW,_Trapeze_wheel

Ultimate galvanized adjustable channel plate for trapeze applications

  • Material composition: DD11 MOD - HN 547, S235JR - DIN EN 10025, DC04 - DIN EN 10130
  • Surface finish: Indoor Coated - Electro galvanized
  • Material thickness: 3 mm
ultimate

Choose options

Thread connection - M
  • M8
  • M10
Wrench size
  • 11 mm
  • 13 mm
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 351.00 ILS

Technical Data

Details
Technical illustrations
Material composition
DD11 MOD - HN 547, S235JR - DIN EN 10025, DC04 - DIN EN 10130
Surface finish
Indoor Coated - Electro galvanized
Material thickness
3 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Product Class
Ultimate

Documents

pdf Operating Instruction MT-ZT, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 1 MB ]

Features & Applications

Features

  • Single-piece part combining nut and washer
  • Shaped for optimal handling convenience
  • Faster and less error-prone installation compared to traditional alternatives
  • Tool-free installation possible – M10 version is self-locking

Applications

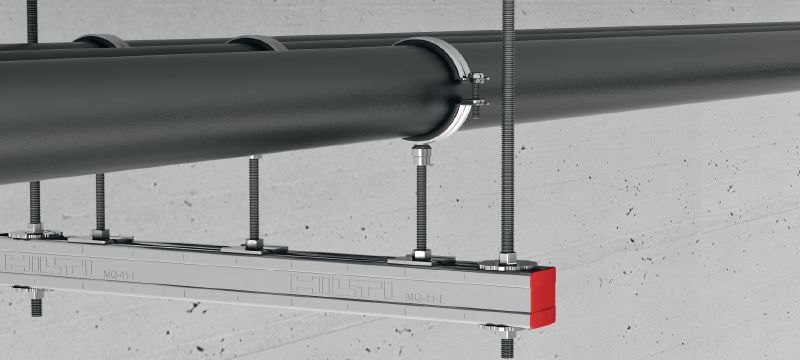

  • Fastening installation channels to threaded rods
  • Connecting threaded rod to strut channels
  • Adjusting the height of threaded rod to strut channels connections

For approval or certificate information, please see individual items.
