MV-LDP

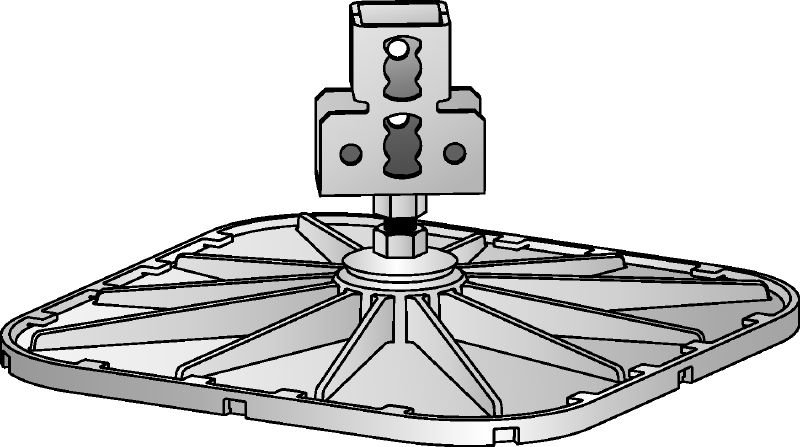

Load distrib. plate MV-LDP 345x345 #2048106
Robust load distribution plate for installing air conditioning units, walkways, ventilation ducts, pipework, or cable trays on flat roofs
- Material composition: Plate: Diecast aluminium, Rubber plate: EPDM, Connector: S235JR - DIN EN 10025
- Surface finish: Outdoor Coated - HDG
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Choose options
For use with
- Protective separation fleece MV-PSF to protect roofs with PVC surface needed
Pack size
- 2 pc
Quantity
Pack
Total Pieces
2
Discounted net
1,900.00 ILS
950.00 ILS / 1 each
Technical Data
Material composition
Plate: Diecast aluminium, Rubber plate: EPDM, Connector: S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Weight
3050 g
Maximum load - F
20 kN
Documents
Features & Applications
Features
- Can rotate up to 7-degrees for compensation of roof pitch
- Vertical and horizontal connections with strut channels possible
- Compatible with MQN push button channel connectors – for easier mounting of strut channels
- Robust aluminum plate to evenly distribute loads along its surface
- Easier to handle and transport compared to pre-fabricated welded steel
Applications

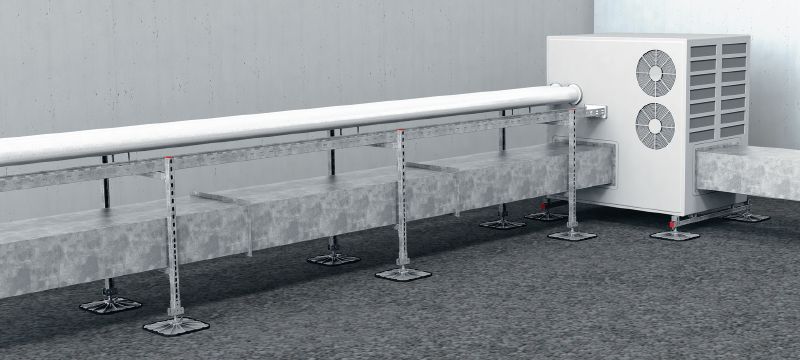

- Installing air conditioning units, walkways, ventilation ducts, pipework, and cable trays on flat roofs
