MQT-K Clamping bracket

Clamping bracket MQT-K #284241

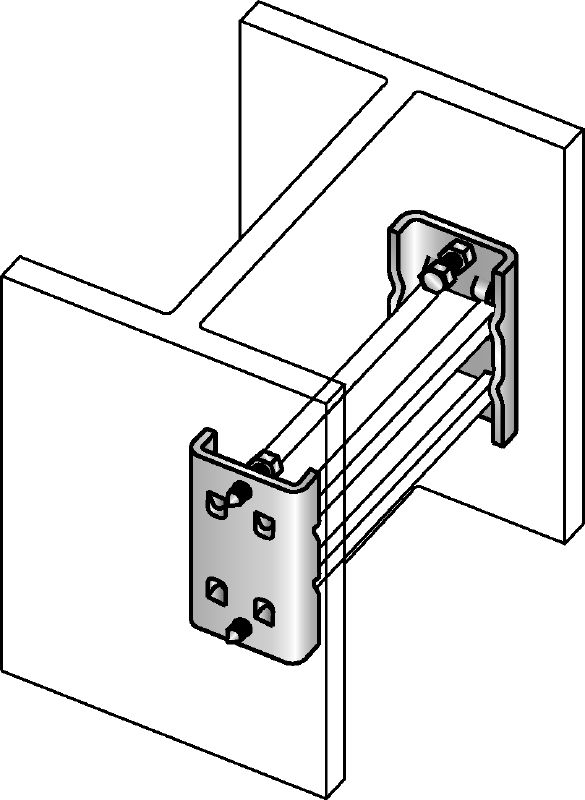

Galvanized beam clamp for connecting MQ strut channels within the flanges of steel beams

Tightening torque: 30 Nm
Material composition: S235JRG2 - DIN EN 10025
Surface finish: Indoor Coated - Electro galvanized

Choose options

For use with

MQ-21D, MQ-41, MQ-41/3

Pack size

5 pc

Product options

Quantity

Pack

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

389.00 ILS

77.80 ILS / 1 each

Technical Data

Tightening torque

30 Nm

Material composition

S235JRG2 - DIN EN 10025

Surface finish

Indoor Coated - Electro galvanized

Material thickness

5 mm

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Weight

760 g

Features & Applications

Features

Easier installation and positioning of strut channels
No drilling or welding necessary

Applications

Compatible with steel double T-beams and U-beams
Compatible with MQ-21D, MQ-41, MQ-41/3
Recommended for use in dry, interior environments
