MQI-AT Steel beam connector

Beam connector MQI-AT #286090

Configurator
Technical Data
Features & Applications
Related Products
Beam connector MQI-AT
29783.tif
Still life 3D main product
14815.eps

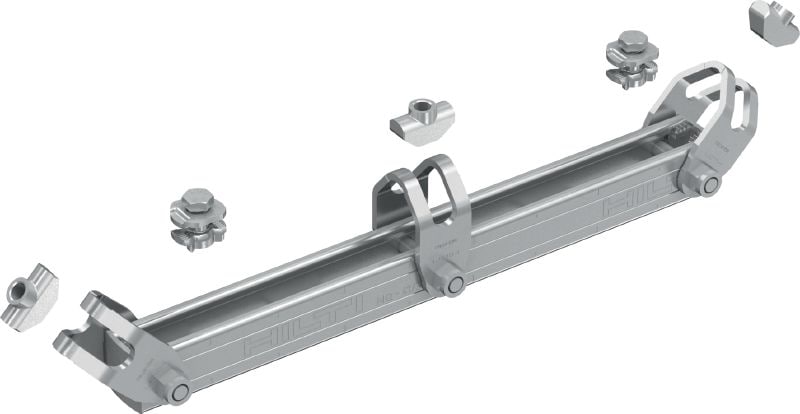

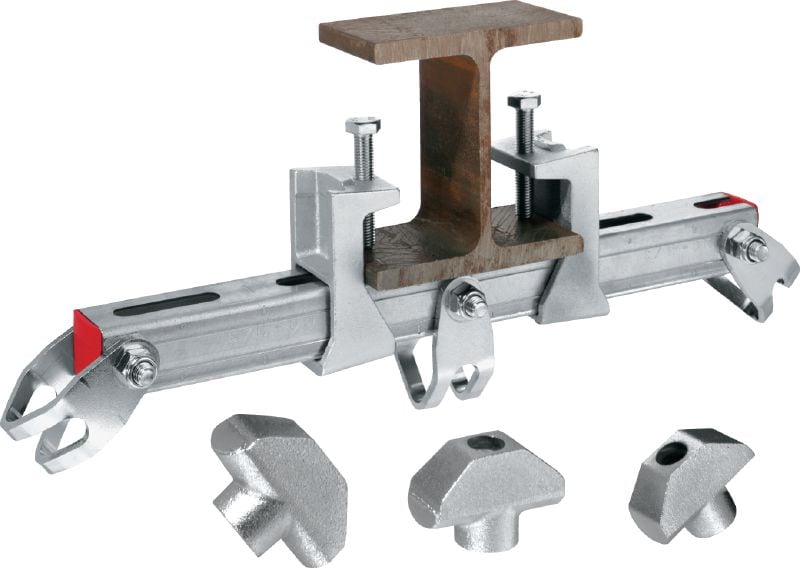

Galvanized steel beam connector for fastening MQ strut channels directly to steel beams

  • Tightening torque: 40 Nm
  • Material composition: Channel: S235GD - DIN EN 10147, clamp: S235JRG2 - DIN EN 10025, Nut: M12 quality 8-A2K - DIN 985, T-head: EN-GJMB-350-10 - DIN EN 1562, end cap: Plastic PP
  • Surface finish: Indoor Coated - Electro galvanized

Choose options

Pack size
  • 6 pc
 Product options
Quantity
Pack
Total Pieces
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
4,771.00 ILS
795.17 ILS
/
1 each

Technical Data

Details

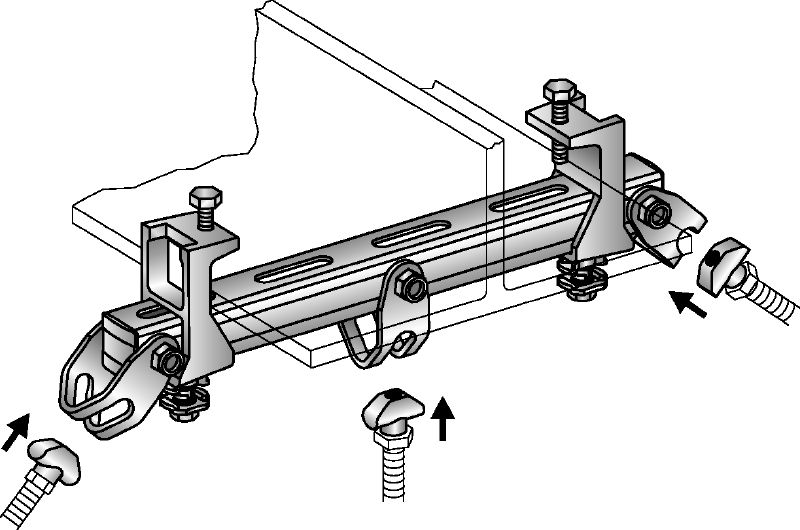

Technical illustrations
Tightening torque
40 Nm
Material composition
Channel: S235GD - DIN EN 10147, clamp: S235JRG2 - DIN EN 10025, Nut: M12 quality 8-A2K - DIN 985, T-head: EN-GJMB-350-10 - DIN EN 1562, end cap: Plastic PP
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
4053 g

Features & Applications

Features

  • Easier installation and positioning of strut channels
  • No drilling or welding necessary
  • Fits all standard steel T-beams and concrete beams (max. flange width 300 mm, max. flange thickness 30 mm)

Applications

  • Installing various items such as lights, cable trays, pipes and ducts for water, gas, ventilation, pressurized air, signs or catwalks for maintenance
