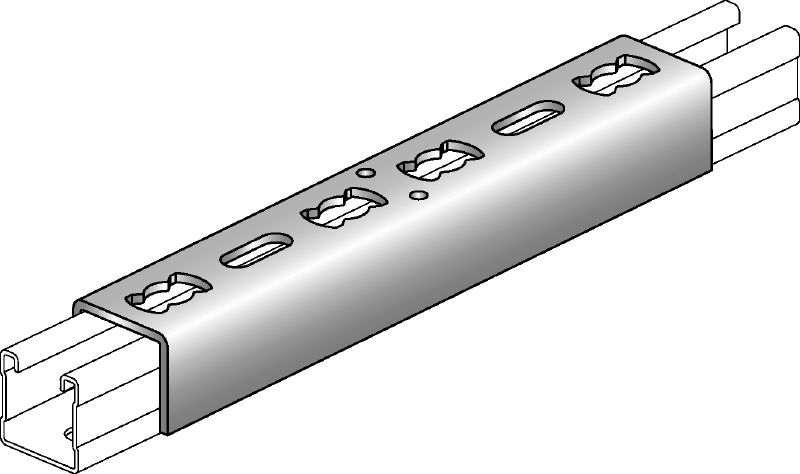

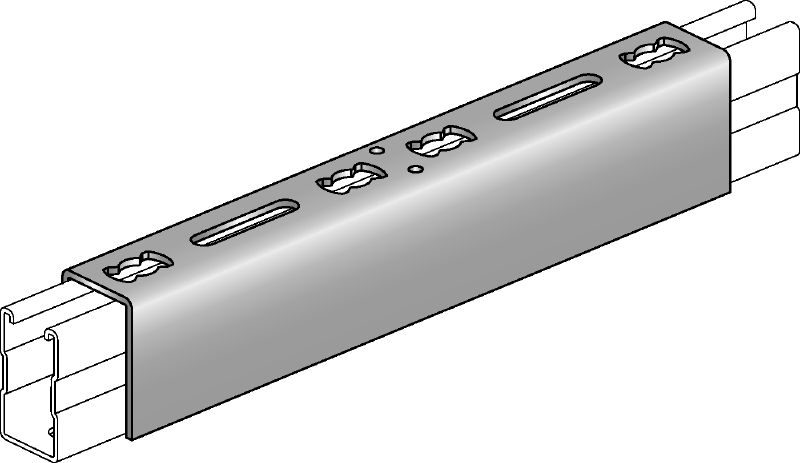

MQV Channel tie
Galvanized channel connector used as a longitudinal extender for MQ strut channels
- Material composition: S235JR - DIN EN 10025
- Surface finish: Indoor Coated - Electro galvanized
- Material thickness: 4 mm
Choose options
For use with
- MQ-124XD, MQ-41, MQ-41/3, MQ-41D, MQ-52, MQ-52-72 D
- MQ-124XD, MQ-52-72 D, MQ-72
Pack size
- 4 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 363.00 ILS
Technical Data
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanized
Material thickness
4 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Features & Applications
Features
- Adjustable – easily fit and repositioned along strut channels
- Threaded rods can be connected through elongated holes in MQV-72 channel ties
- Compatible with push button channel connectors – for much faster, adaptable assembly
Applications
- Connecting two MQ strut channels together
- Compatible with multiple MQ strut channels
- Recommended for use in dry, interior environments
For approval or certificate information, please see individual items.
