MIC-S Connector

IS_HNA_312_o.eps
IS_HNA_313_o.eps
LCG001007.tiff
LCG001029.tiff
IS_HNA_312_o.eps
IS_HNA_313_o.eps
LCG001007.tiff
LCG001029.tiff

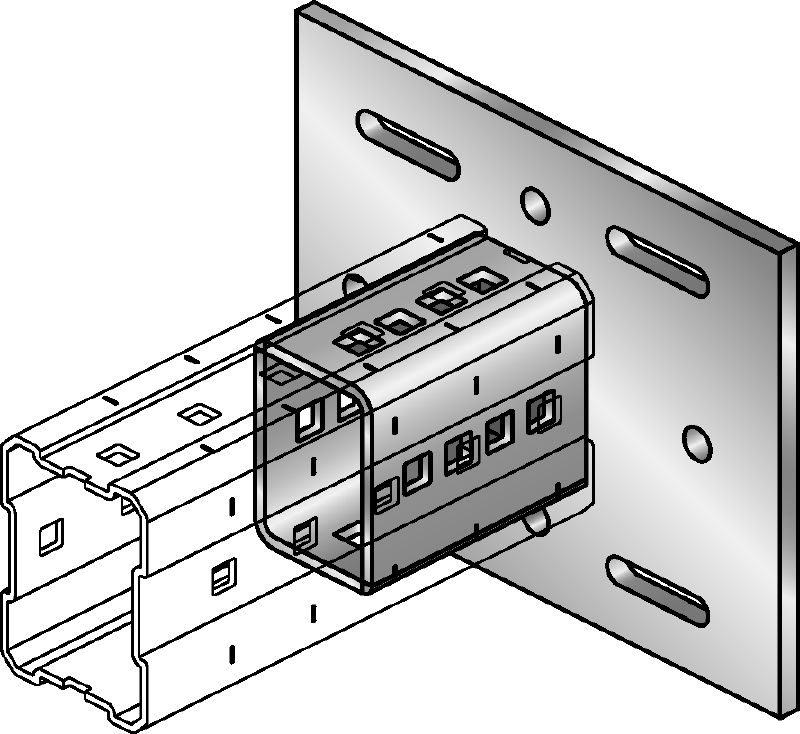

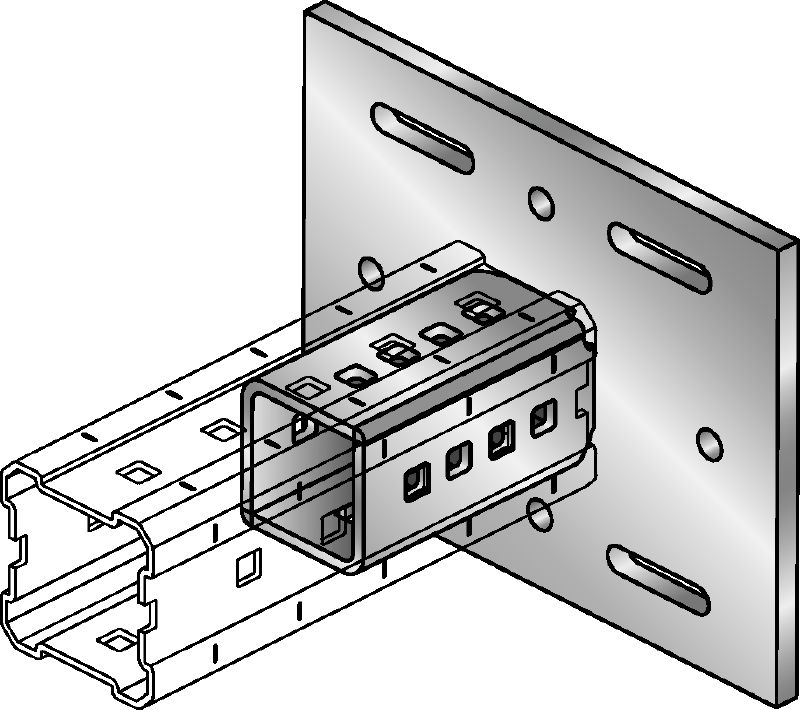

Connector for attaching modular girders to structural steel beams

  • Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
  • Surface finish: HDG: Connector 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: Connector 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • Provides a strong and rigid connection
  • Designed to cover a large range of standard flange widths
  • Adjustable and flexible – for easier, more efficient installation
  • Can be easily connected to steel using beam clamps (not included)
  • All parts are reusable

Applications

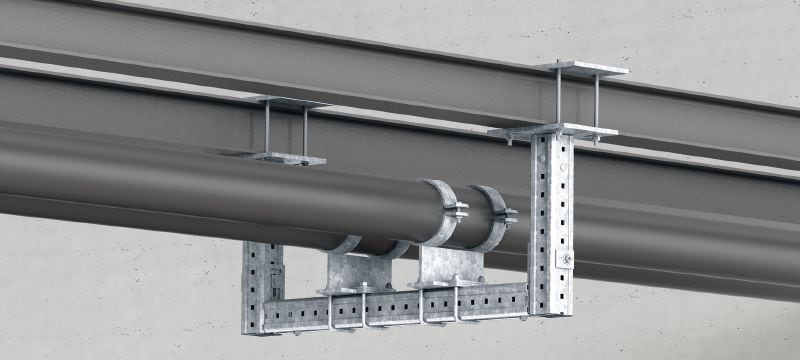

  • Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
  • Provides easy-to-install, adjustable, flexible solutions for industrial and heavy commercial applications

For approval or certificate information, please see individual items.
