MQT Beam clamp

Configurator
Technical Data
Documents
Features & Applications
Related Products
MQT-82-124
Beam clamp
IS_HNA_102_o.eps

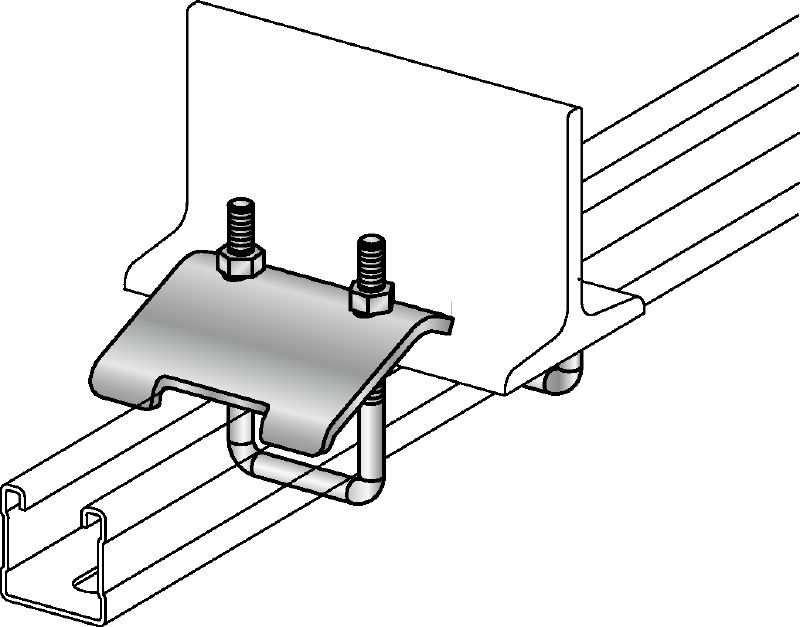

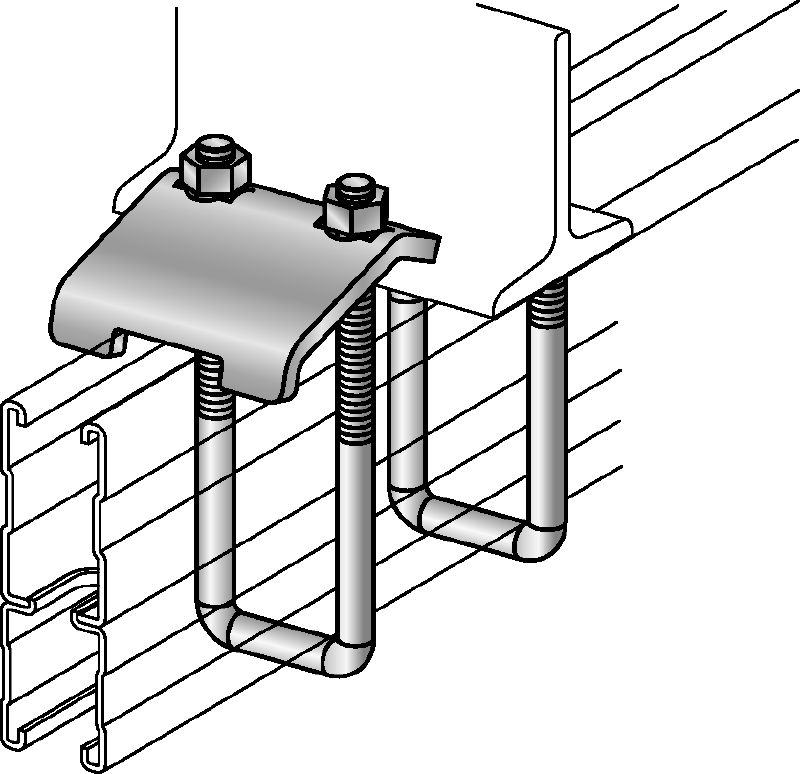

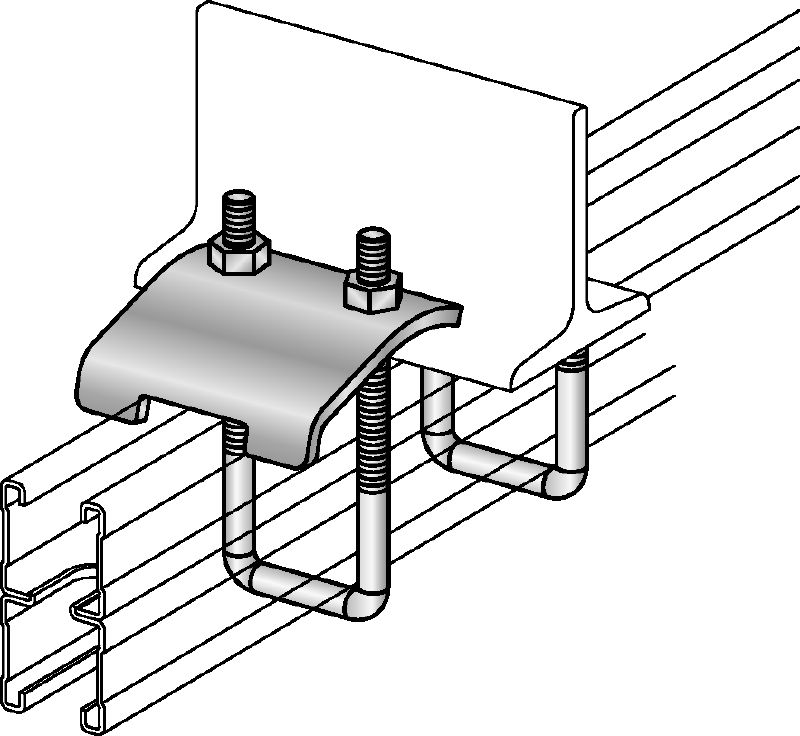

Galvanized beam clamp for connecting MQ strut channels directly to steel beams

  • Material composition: Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025, Nut - DIN 50961
  • Surface finish: Indoor Coated - Electro galvanized
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Thread connection - M
  • M8
  • M10
  • M12
For use with
  • MQ-124XD, MQ-41D, MQ-52-72 D
  • MQ-21D, MQ-41
  • MQ-41, MQ-41/3, MQ-41D, MQ-52, MQ-72
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 314.00 ILS

Technical Data

Material composition
Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025, Nut - DIN 50961
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Technical information
Documentation
Operating Instruction
pdf Engineering Center Whitepaper - FoS Studs and Beam Clamps (EN), English [ 762.1 KB ]

Features & Applications

Features

  • Easier installation and positioning of strut channels
  • No drilling or welding necessary

Applications

  • Compatible with steel beams with max. flange thickness of 23 mm

For approval or certificate information, please see individual items.
