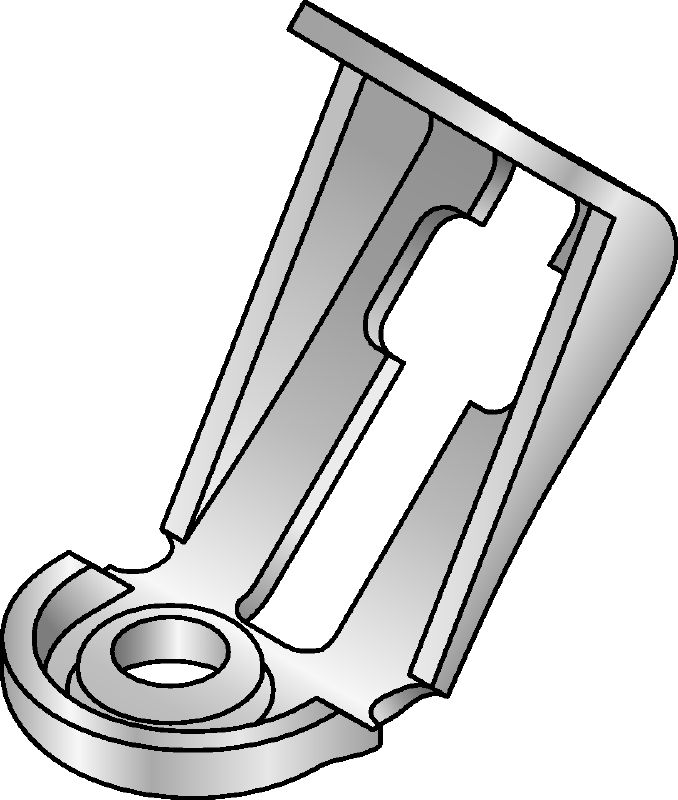

MQ3D-AS brace connector

Brace MQ3D-AS #2083742

Configurator
Technical Data
Documents
Features & Applications
Related Products
IS_MQS_012_o.eps

Galvanized threaded rod brace connector with angle adjustability for channel trapeze seismic applications

  • Material composition: DD11 MOD - HN 547, S235JR - DIN EN 10025
  • Surface finish: Indoor Coated - Electro galvanized
  • Material thickness: 3.0 mm

Choose options

Pack size
  • 20 pc
 Product options
Quantity
Pack
Total Pieces
20
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
262.00 ILS
13.10 ILS
/
1 each

Technical Data

Material composition
DD11 MOD - HN 547, S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanized
Material thickness
3.0 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
73 g

Documents

pdf Operating Instruction MQ3D-AS, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 542.7 KB ]

Features & Applications

Features

  • Designed for quicker, easier attachment to MQ modular support systems
  • High load capacity – engineered for optimal transfer of seismic loads
  • Threaded rod can be easily inserted into the connector and locked by tightening the nut
  • Angle adjustability of +/- 15 degrees

Applications

  • Installing pipes, cable trays and air duct supports in seismic-relevant areas
  • Assembling seismic bracing using threaded rods in strut channel trapeze applications
