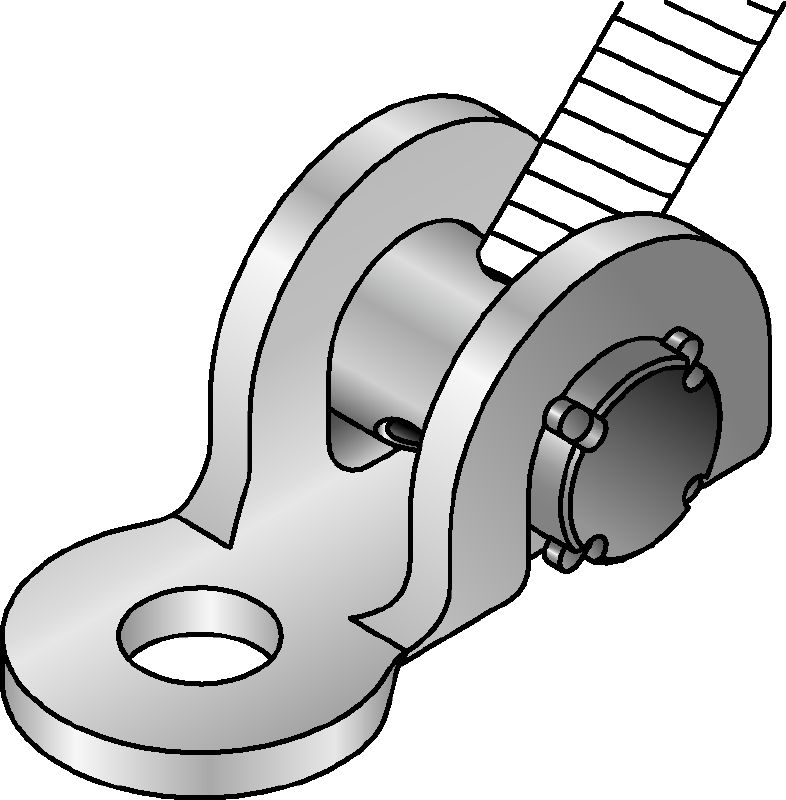

MT-S-CH Seismic rod hinge

Hinge MQS-CH #2083741

IS_MQS_007_o.eps

MQS rod/rod Trapeze

LCG001327_v2.tiff

LCG001328_v2.tiff

IS_MQS_007_o.eps

MQS rod/rod Trapeze

LCG001327_v2.tiff

LCG001328_v2.tiff

PROFIS Installation - Seismic Template.

Hilti seismic portfolio - safer from earthquakes.

Galvanized pre-assembled threaded rod brace connector with increased load capacity for mounting to base material

Material composition: Connector: S275JR - DIN EN 10025, Pin: 11SMnPb37+C
Surface finish: Indoor Coated - Electro galvanized
Material thickness: 4 mm

Choose options

Pack size

10 pc

Product options

Quantity

Pack

Total Pieces

10

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

464.00 ILS

46.40 ILS / 1 each

Technical Data

Material composition

Connector: S275JR - DIN EN 10025, Pin: 11SMnPb37+C

Surface finish

Indoor Coated - Electro galvanized

Material thickness

4 mm

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Weight

95 g

Thread - M

M10

Documents

Features & Applications

Features

Easier and quicker to mount to M10 threaded rod
Maximum installation flexibility due to adjustable angle
Higher load capacity – engineered for optimal transfer of seismic loads

Applications

Installing pipes, cable trays and air duct supports in seismic-relevant areas
Assembling seismic bracing using threaded rods in a wide range of seismic applications
